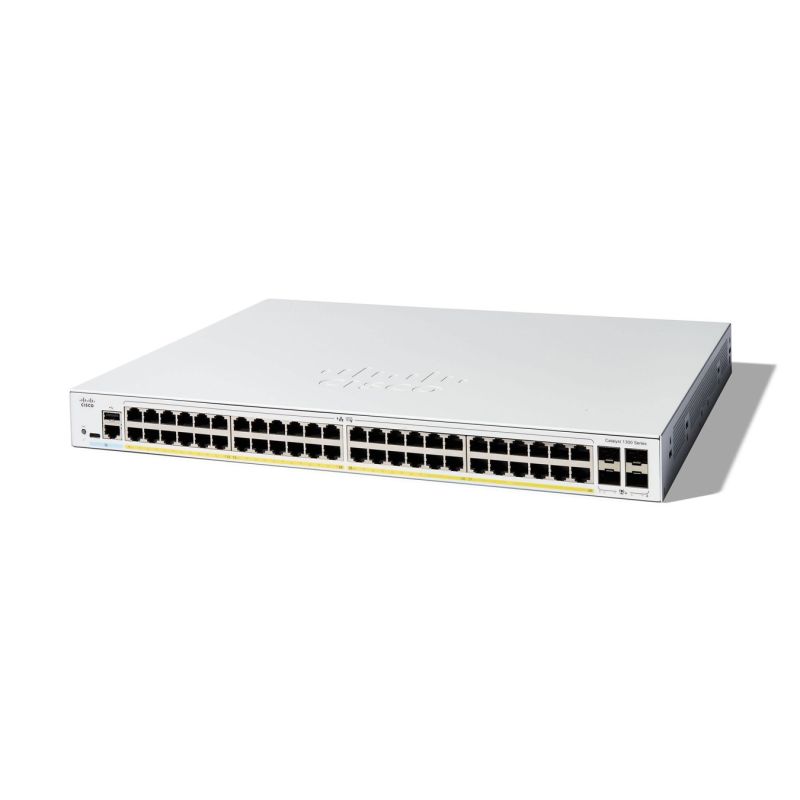

Cisco Catalyst 1300 Switch, 48x GE PoE, 4x 10G SFP+

Apraksts

Design Product colour: White LED indicators: Yes Reset button: Yes Housing material: Metal Power Power source: AC Power plug type: Type C Power supply included: Yes Weight and dimensions Product width: 350 mm Product height: 43.9 mm Product depth: 444.5 mm Security IGMP snooping: Yes SSH/SSL support: Yes Encryption / security HTTPS SSH SSL/TLS MAC address filtering: Yes Access Control List (ACL): Yes Management features Switch type: Managed Location settings configuration (CLI): Yes Web-based management: Yes ARP inspection: Yes Switching layer: L2/L3 Quality of Service (QoS) support: Yes MIB support: Y Operating conditions Storage temperature range: -25 - 70 °C Operating temperature range: 0 - 50 °C Permissible relative humidity: 10 - 90% Relative humidity range: 10 - 90% Network Ethernet LAN data transfer rate: 1000 Mbit/s Storm control: Yes Spanning Tree Protocol: Yes Communication standards IEEE 802.1ab IEEE 802.1x IEEE 802.3x IEEE 802.1Q IEEE 802.3z IEEE 802.3u IEEE 802.1w IEEE 802.3 IEEE 802.1ad IEEE 802.3ad Flow control support: Yes Head-of-line blocking (HOL): Yes Port mirroring: Yes VLAN support: Yes Performance Flash memory size: 512 MB Processor frequency: 1400 MHz Internal memory capacity: 1 GB Packaging data Package width: 480.8 mm Package height: 95 mm Weight including packaging: 6.96 kg Package depth: 571.8 mm Ports and interfaces Number of RJ-45 Ethernet ports for basic switching: 48 Number of installed SFP+ modules: 4 RJ-45 port type for basic Ethernet switching: Gigabit Ethernet (10/100/1000) Data transmission Static route: Yes Jumbo Frames support: Yes Jumbo Frames extension: 9000 Multicast features Multicast support: Yes Safety warning Warnings The product must not be disposed of with ordinary household waste. Dispose of used electronic equipment at a recycling point in accordance with local regulations. Do not open the housing or attempt to repair the device yourself. Make sure that the device is adequately ventilated during operation.

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

6.61

Product Type

Network switches
