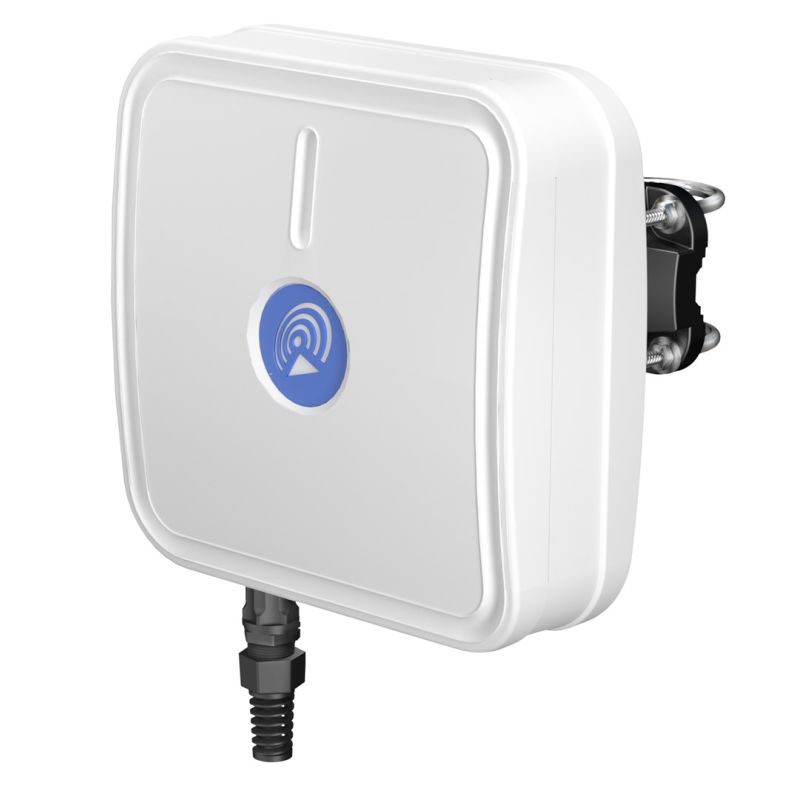

QuWireless QuMax Antenna – Directional PoE/LAN Antenna, 14 dBi

Apraksts

Features Voltage standing wave ratio (VSRW): 2 Antenna connector type: PoE/LAN Polarization: Dual polarization Housing material Aluminium Acrylonitrile butadiene styrene copolymer (ABS) Product colour: White IP protection rating: IP67 Antenna type: Directional antenna Intended use: Indoor / outdoor Mounting type: Wall/Pole Weight and dimensions Product weight: 1.8 kg Product depth: 96 mm Product width: 272 mm Product height: 276 mm Operating conditions Operating temperature range: -40 - 75 °C Performance Horizontal beamwidth (5 GHz): 90° Vertical beamwidth (2.4 GHz): 30° Horizontal beamwidth (2.4 GHz): 90° Antenna gain (5 GHz): 14 dBi Antenna gain (2.4 GHz): 12 dBi Vertical beamwidth (5 GHz): 16° Maximum antenna gain: 14 dBi Impedance: 50 Ω Frequency band: 2.4-2.5/5.1-5.9 GHz Package contents Quantity: 1 Mounting kit: Yes User manual: Yes Logistics data Country of origin: Poland

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

1.8
