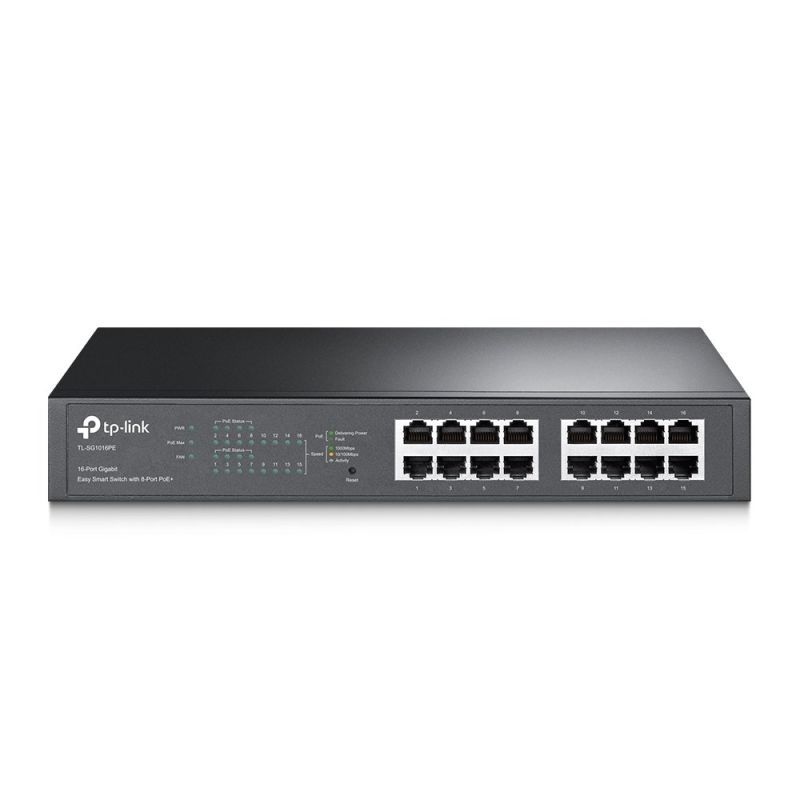

Switch TP-LINK TL-SG1016PE (16x 10/100/1000Mbps)

Apraksts

Design Layout: 1U Product color: Black LEDs: Yes Number of fans: 1 fan Stackable: No Rack mounting options: Yes Housing material: Metal Power AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Power source: AC/PoE Power consumption (max): 124.4 W Power supply included: Yes Weight and dimensions Product height: 44 mm Product width: 294 mm Product depth: 180 mm Security IGMP snooping: Yes Management features Website management: Yes Quality of Service (QoS) Support: Yes Switch type: Managed Switch Layer: L2 Working conditions Temperature range (storage): -40 - 70 °C Temperature range (operation): 0 - 40 °C Permissible relative humidity: 5 - 90% Relative humidity range: 10 - 90% Network Communication standards IEEE 802.1p IEEE 802.3u IEEE 802.3ab IEEE 802.1Q IEEE 802.3x IEEE 802.3i Traffic Growth Control: Yes Number of VLANs: 4000 Flow Control Support: Yes Auto MDI/MDI-X: Yes Auto-Negotiation: Yes Copper Ethernet cabling technology 10BASE-T 100BASE-TX 1000BASE-T 10G Support: No Port Mirroring: Yes VLAN support: Yes Supported cable types Cat5e Cat5 Cat6 Cat3 Cat4 Virtual LAN Features Tagged VLAN Port-based VLAN Connection Aggregator: Yes Efficiency Maximum cable length: 100 m Packaging data Weight with packaging: 2.28 kg Packaging type: Box Packaging depth: 400 mm Driver CD: Yes Package height: 80 mm Package width: 250 mm Package contents Wires: Alternating Current User Guide: Yes Hook mounting kit: Yes Certificates Certificates of conformity CE Federal Communications Commission (FCC) RoHS Ports and interfaces Power Connector: AC Input Socket Basic RJ-45 Switching Number of Ethernet Ports: 16 Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000) Number of Gigabit Ethernet ports: 16 Data transfer Address table size: 8000 entries Jumbo Frame Compatible: Yes Store-and-forward: Yes Packet buffer memory: 4.1 MB Routing/Switching Throughput: 32 Gbit/s Transfer speed: 23.8 Mpps Jumbo Frames Expansion: 10000 Number of rounds: 4 Power over Ethernet (PoE) PoE Support: Yes Power over Ethernet (PoE) power per port: 30 W Power over Ethernet Plus (PoE +) ports: 8 Total Power over Ethernet (PoE) budget: 110 W Safety warning Warnings Do not open the casing or attempt to repair it yourself. This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations. Ensure the device is adequately ventilated during operation. Sustainable development Sustainability: Yes

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

2.58

Product Type

Network switches
