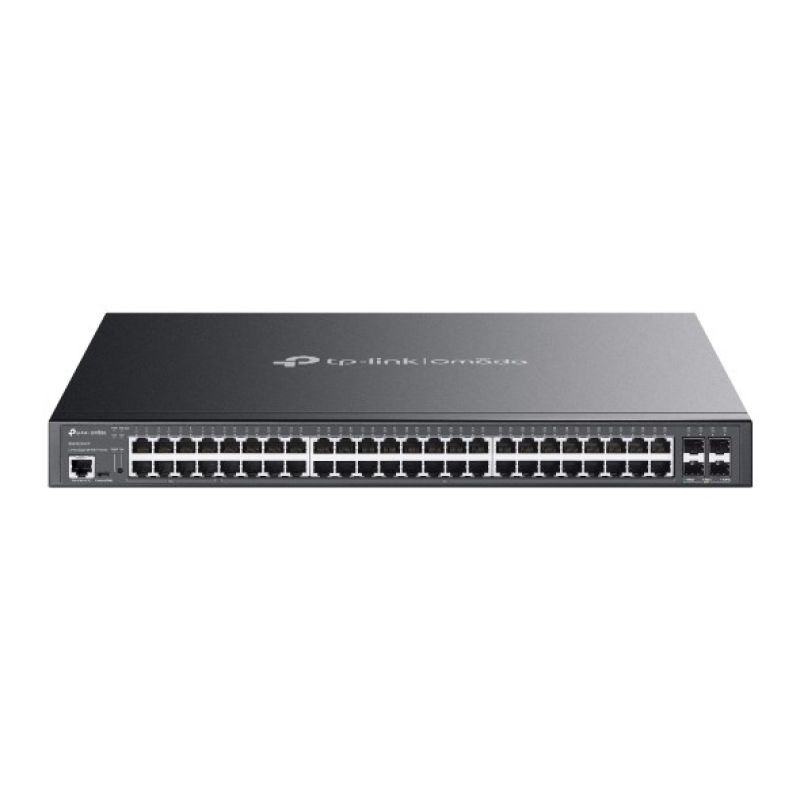

TP-Link Omada SG3452XMPP Network Link Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support 1U Black

Apraksts

Design Layout: 1U LEDs: Yes Reset button: Yes Product color: Black Rack mounting options: Yes Number of fans: 3 fans Power Power source: AC AC input frequency: 50/60 Hz AC input voltage: 100 - 240 V Power consumption (max): 635.7 W Power supply included: Yes Weight and dimensions Product height: 44 mm Product depth: 330 mm Product width: 440 mm Security Access Control List (ACL): Yes Authentication: Auto VLAN, Guest VLAN BPDU Filtering/Protection: Yes Static Port Protection: Yes Supports SSH/SSL: Yes IP-MAC-Port Binding: Yes DHCP functions DHCP relay DHCP client DHCP server MAC address filtering: Yes IGMP snooping: Yes Management features Configuring Location Settings (CLI): Yes Switch Layer: L2+ ARP Inspection: Yes Switch type: Managed System Event Report: Yes Cloud-managed: Yes Website management: Yes Quality of Service (QoS) Support: Yes Working conditions Heat emission: 2169.2 BTU/h Permissible relative humidity: 5 - 90% Temperature range (operation): 0 - 40 °C Temperature range (storage): -40 - 70 °C Relative humidity range: 10 - 90% Network Head-of-line (HOL) blocking: Yes Traffic Growth Control: Yes Flow Control Support: Yes Frequency Limit: Yes Connection Aggregator: Yes Spanning Tree Protocol: Yes Port Mirroring: Yes Communication standards IEEE 802.3z IEEE 802.3ae IEEE 802.3u IEEE 802.1w IEEE 802.3af IEEE 802.3i IEEE 802.1D IEEE 802.3at IEEE 802.1Q IEEE 802.3ab IEEE 802.1s 10G Support: Yes VLAN support: Yes Package contents Quick Start Guide: Yes Wires: Alternating Current Ports and interfaces Console port: RJ-45/micro-USB Number of SFP+ Module slots: 4 Power Connector: AC Input Socket Basic RJ-45 Switching Number of Ethernet Ports: 48 Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000) Data transfer Jumbo Frames Expansion: 9000 Store-and-forward: Yes Transfer speed: 130.9 Mpps Address table size: 16000 entries Packet buffer memory: 12 MB Jumbo Frame Compatible: Yes Routing/switching capacity: 176 Gbps Power over Ethernet (PoE) Power over Ethernet Plus (PoE +) ports: 40 Number of Power over Ethernet 4PPoE (PoE++) ports: 8 Total Power over Ethernet (PoE) budget: 750 W Power over Ethernet (PoE) power per port: 30 W PoE Support: Yes Multicast functions Multicast Support: Yes Safety warning Warnings Do not open the casing or attempt to repair it yourself. Ensure the device is adequately ventilated during operation. This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.

Colour

Black

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

6.2

Product Type

Network switches
