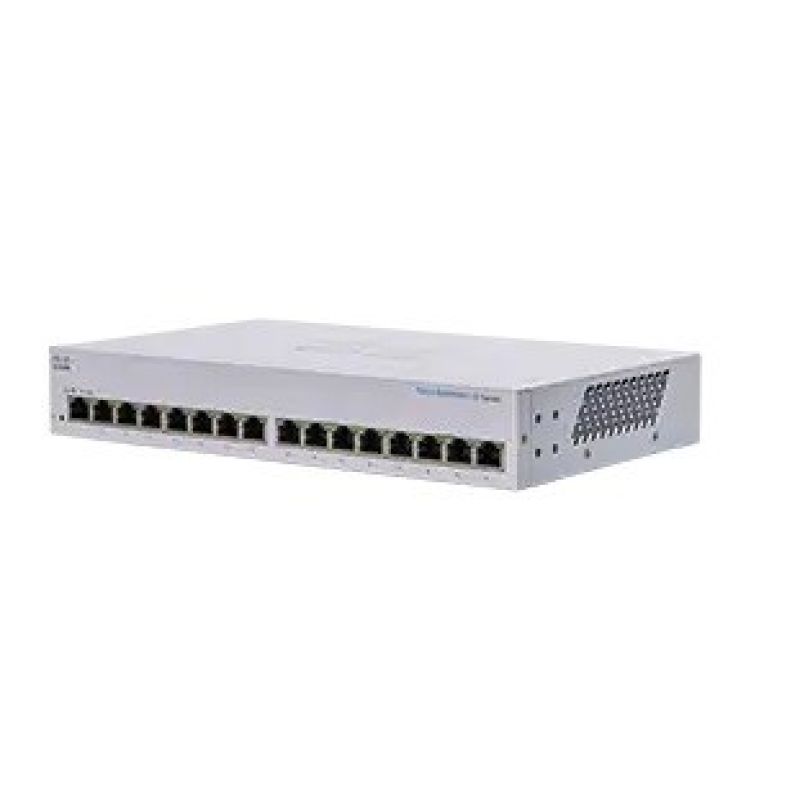

BUSINESS 110 SERIES UNMANAGED/SWITCH 16-PORT GE (CBS110-16T)

Apraksts

Design Layout: 1U Rack mounting options: Yes Product color: Gray LEDs: Yes Power Number of power units: 1 Power supply included: Yes Power Backup Support (RPS): No AC input voltage: 110 - 240 V AC input frequency: 50 - 60 Hz Weight and dimensions Product weight: 970 g Product depth: 170 mm Product width: 279 mm Product height: 44 mm Security Queue Planning Algorithms: Weighted Round Robin (WRR) Management features Switch Type: Unmanaged Switch Layer: L2 Quality of Service (QoS) Support: Yes Working conditions Permissible relative humidity: 5 - 90% Temperature range (storage): -20 - 70 °C Heat emission: 39.34 BTU/h Temperature range (operation): 0 - 40 °C Relative humidity range: 10 - 90% Network Auto MDI/MDI-X: Yes Copper Ethernet cabling technology 10BASE-T 100BASE-TX 1000BASE-T 10G Support: No Full duplex: Yes Head-of-line (HOL) blocking: Yes Half-duplex: Yes Supported cable types: Cat5e Flow Control Support: Yes Communication standards IEEE 802.3x IEEE 802.3az IEEE 802.3ab IEEE 802.3 IEEE 802.1p IEEE 802.3u Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s Efficiency Built-in processor: Yes Flash memory size: 16 MB Internal memory capacity: 128 MB MTBF (Mean Time Between Failures): 2685092 h Processor clock speed: 400 MHz Package contents Quick Start Guide: Yes Hook mounting kit: Yes Ports and interfaces Number of Gigabit Ethernet ports: 16 Basic RJ-45 Switching Number of Ethernet Ports: 16 Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000) Logistics data Harmonized System (HS) code: 85176990 Data transfer Number of rounds: 4 Transfer speed: 23.8 Mpps Jumbo Frame Compatible: Yes Jumbo Frames Expansion: 9216 Routing/switching capacity: 32 Gbit/s Address table size: 8192 entries Power over Ethernet (PoE) PoE Support: No

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

2.15

Product Type

Network switches
