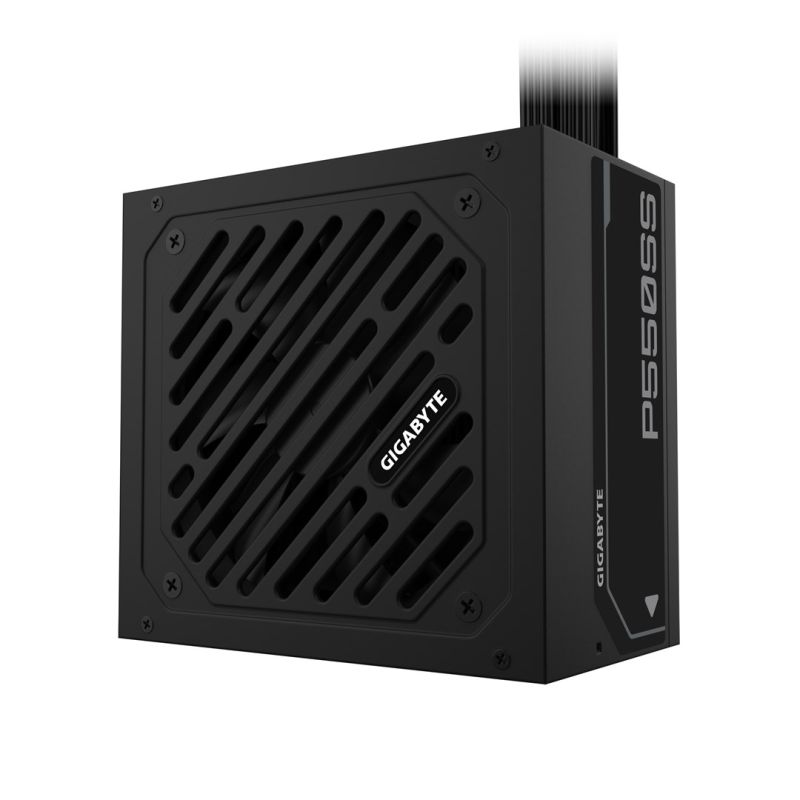

Gigabyte P550SS 550W Power Supply

Apraksts

Design Number of fans: 1 fan Cooling type: Active Fan bowl diameter: 12 cm Built-in switch: Yes Fan Location: Top Product color: Black Power Total power (+5 Vsb): 15 W Total power (+12V): 549.6 W Hold time: 16 ms Total power (-12V): 3.6 W Total power (+5V): 200 W Maximum output current (+3.3V): 20 A Maximum output current (+5 Vsb): 3 A Maximum output current (+12V): 45.8 A Maximum output current (+5V): 20A Maximum output current (-12V): 0.3A Total power (+3.3V): 100 W Power protection features Overload protection Protection against overvoltage Overcurrent Short circuit Overheating protection Low voltage protection Total power: 550 W Efficiency: 90% PFC (Power Factor Correction) Type: Active Input current: 6.3 A Power factor: 0.9 AC input voltage: 155-240V AC input frequency: 50/60 Hz Weight and dimensions Product depth: 140 mm Product width: 150 mm Product height: 86 mm Efficiency ATX version: 3.0 Power supply type (PSU): ATX 80 PLUS Certificate: 80 PLUS Bronze Bearing technology: HDB Intended use: PC MTBF (Mean Time Between Failures): 100000 h Ports and interfaces CPU power supply connector (4+4 pin): Yes ATX power supply connector (20+4 pin): Yes Motherboard cable length: 60 cm PCI Express slot: Yes Floppy drive connector: 1 Motherboard power connector: 20+4 pin ATX Number of SATA power connectors: 5 Peripheral (Molex) Power cable length: 500 mm SATA power cable length: 500 mm CPU power cable length: 60 cm PCI Express power cable length: 50 cm Peripheral (Molex) Power Connectors (4-pin): 3 Floppy disk drive slot: Yes Wiring Type: Non-Modular PCI Express power connectors (6+2 pin): 2 Logistics data Harmonized System (HS) code: 84733020

Category

Computers and accessories

Department

Electronics

Weight (kg)

2

Product Type

Power supplies
