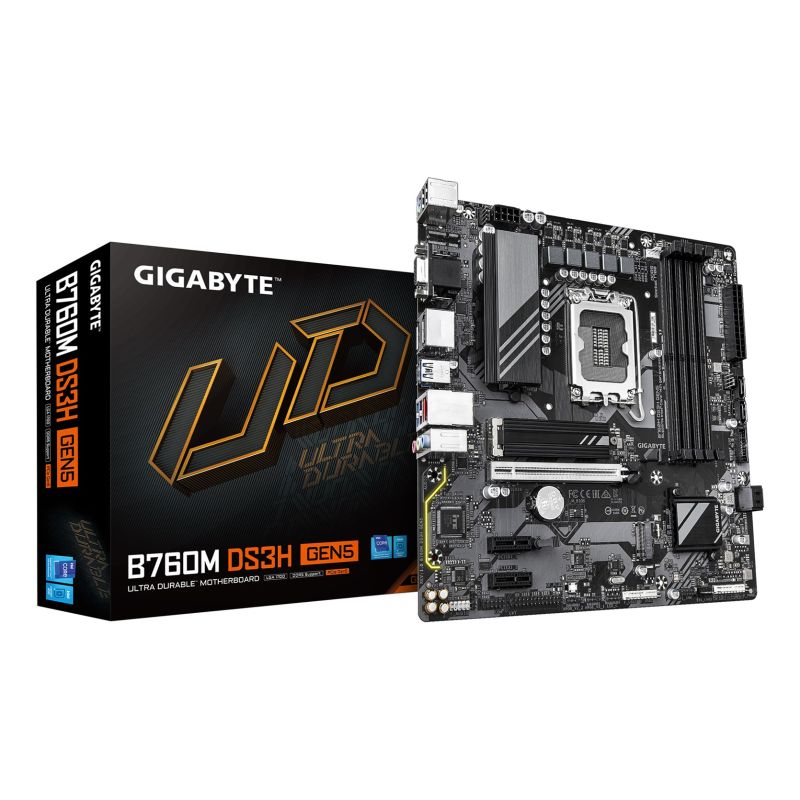

Gigabyte B760M DS3H GEN5 motherboard

Apraksts

Processor Supported CPU sockets: LGA 1700 Processor manufacturer: Intel Processor Intel Core i9 13th Gen Intel Core i9 12th Gen Intel Core i3 14th Gen Intel® Celeron® Intel Core i3 13th Gen Intel Core i7 12th Gen Intel Core i5 14th Gen Intel Core i3 12th Gen Intel Core i7 13th Gen Intel Core i5 13th Gen Intel® Pentium® Gold Intel Core i9 14th Gen Intel Core i5 12th Gen Intel Core i7 14th Gen Processor socket: LGA 1700 Graphics HDCP: Yes Maximum resolution: 4096 x 2304 px Parallel Processing Support: Not Supported Memory Supported memory clock speeds 5200 MHz 5600 MHz 4400 MHz 4800 MHz Maximum memory capacity: 256 GB Unbuffered memory: Yes ECC Compatibility: ECC or Non-ECC Supported memory clock speed (max): 5600 MHz Maximum internal memory per slot: 64 GB Supported memory types: DDR5-SDRAM Memory Channel Support: Dual Channel Memory slot type: DIMM Number of memory slots: 4 Characteristics Chipset Board Family: Intel Supported Windows operating systems Windows 10 x64 Windows 11 x64 Monitoring computer status Fan Temperature Tension Water cooling Motherboard Layout: Intel B760 Express Motherboard format: Micro ATX Power supply type: ATX Audio output channels: 7.1 ch. Cooling type: Passive Weight and dimensions Product depth: 174 mm Product width: 244 mm Internal I/O Parallel connector: Yes EPS power supply connector (8-pin): Yes S/PDIF jack: Yes Number of case fan connectors: 3 Number of USB 2.0 ports: 2 Serial port connector: 1 CPU fan connector: Yes Front panel audio connector: Yes USB 3.2 Gen 1 (3.1 Gen 1) ports: 1 Number of SATA III connectors: 4 ATX power socket (24-pin): Yes Front panel connector: Yes Number of RGB LED connectors: 3 Number of EPS power connectors (8-pin): 1 Number of CPU fan connectors: 1 RGB LED: Yes 12V power connector: Yes TPM Connector: Yes Network Ethernet interface type: 2.5 Gigabit Ethernet Wired LAN: Yes BIOS BIOS Type: UEFI AMI Clear CMOS Jumper: Yes Desktop Management Interface (DMI) Version: 2.7 Memory drivers RAID levels 5 0 1 10 Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III Supported drive types: HDD & SSD RAID Service: Yes Number of supported HDDs: 4 Number of supported storage drive sizes: 6 Rear Panel I/O Ports Number of Ethernet LAN ports (RJ-45): 1 DisplayPort version: 1.2 Number of DisplayPorts: 2 Number of USB 2.0 ports: 2 Number of HDMI ports: 1 Number of PS/2 ports: 1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1 Number of VGA (D-Sub) ports: 1 Microphone: Yes Line Input: Yes HDMI version: 2.1 Headphone outputs: 1 Expansion slots PCI Express x1 (Gen 3.x) slots: 2 Number of M.2 (M) slots: 2 2nd largest M.2 key size: 2280 2. M.2 highest generation PCI Express: 4.0 1. M.2 highest generation PCI Express: 4.0 1. largest M.2 key size: 2280 PCI Express x16 (Gen 5.x) slots: 1

Category

Computers and accessories

Department

Electronics

Weight (kg)

1

Product Type

Motherboards
