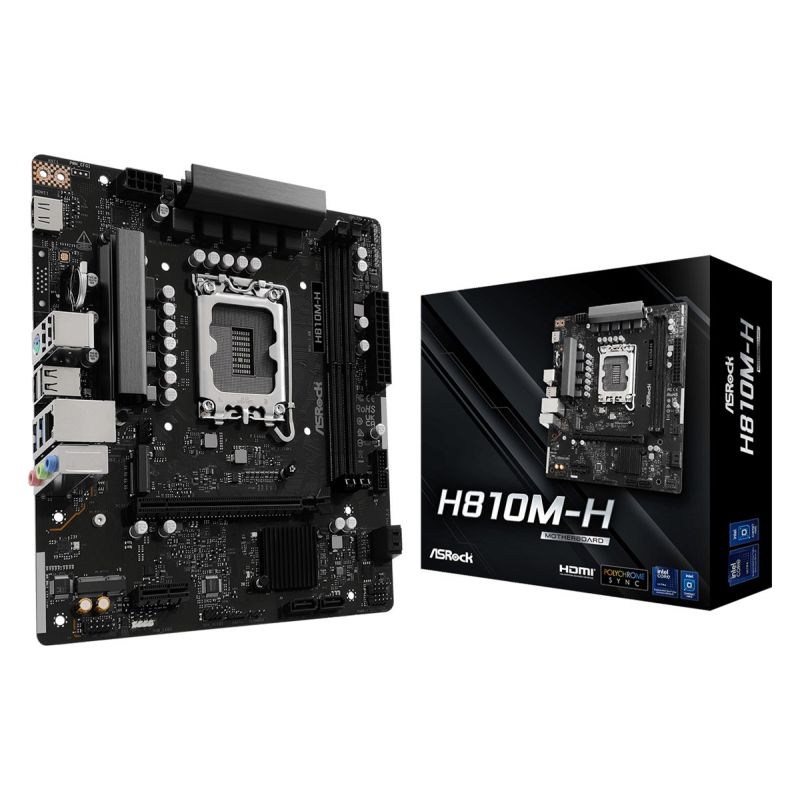

Asrock H810M-H motherboard

Apraksts

Processor Supported CPU sockets: LGA 1851 Processor manufacturer: Intel Processor socket: LGA 1851 (Socket V1) Processor: Intel Core Ultra (Series 2) Graphics High Dynamic Range (HDR) Support: Yes HDCP: Yes Maximum resolution: 3840 x 2160 px HDCP version: 2.3 Memory Supported memory clock speed (max): 6400 MHz ECC Compatibility: ECC or Non-ECC Unbuffered memory: Yes Number of memory slots: 2 Memory slot type: DIMM Supported memory types: DDR5-SDRAM Memory Channel Support: Dual Channel Maximum memory capacity: 128 GB Characteristics Motherboard Layout: Intel H810 Audio output channels: 7.1 ch. Motherboard format: Micro ATX Audio chip: Realtek ALC897 Supported Windows operating systems: Windows 11 x64 Product color: Black Chipset Board Family: Intel Weight and dimensions Product depth: 193 mm Product width: 220 mm Internal I/O Number of CPU fan connectors: 1 Number of RGB LED connectors: 1 ATX power socket (24-pin): Yes CPU fan connector: Yes RGB LED: Yes Number of SATA III connectors: 4 Number of USB 2.0 ports: 2 TPM Connector: Yes Number of case fan connectors: 1 USB 3.2 Gen 1 (3.1 Gen 1) ports: 2 Front panel audio connector: Yes 12V power connector: Yes Network LAN Controller: Realtek RTL8111H Ethernet interface type: Gigabit Ethernet Wi-Fi: No Wired LAN: Yes BIOS BIOS Type: UEFI AMI Package contents Cables: SATA Screws Included: Yes Memory drivers Number of supported storage drive sizes: 5 Supported hard drive interfaces: M.2, SATA III Supported drive types: HDD & SSD Rear Panel I/O Ports Number of Ethernet LAN ports (RJ-45): 1 Number of USB 2.0 ports: 4 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4 Number of HDMI ports: 1 Microphone: Yes Number of PS/2 ports: 1 Line Input: Yes HDMI version: 2.1 Expansion slots PCI Express x1 (Gen 4.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 1 1. M.2 highest generation PCI Express: 4.0 1. largest M.2 key size: 2280 Number of M.2 (M) slots: 1

Category

Computers and accessories

Department

Electronics

Weight (kg)

1

Product Type

Motherboards
