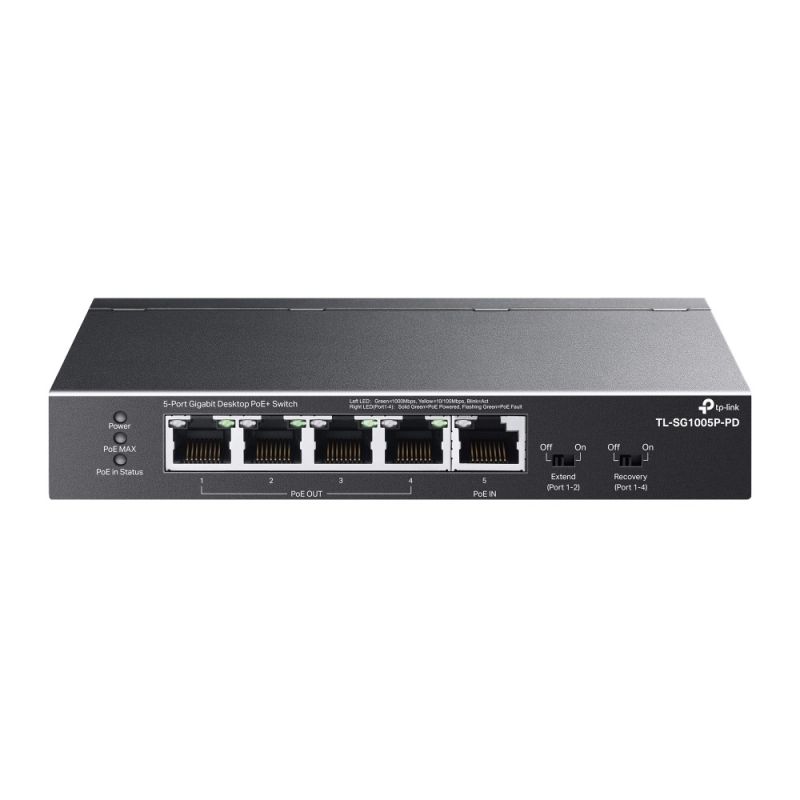

Switch TP-LINK TL-SG1005P-PD

Apraksts

Design Number of fans: 0 fans Wall mountable: Yes LEDs: Yes Product color: Black Power Power source: PoE Power Supply Included: No Power consumption (max): 68.59 W Weight and dimensions Product width: 158 mm Product depth: 101 mm Product height: 25 mm Security IGMP snooping: Yes Management features Quality of Service (QoS) Support: Yes Working conditions Heat emission: 233,206 BTU/h Temperature range (storage): -40 - 70 °C Temperature range (operation): -30 - 70 °C Permissible relative humidity: 5 - 90% Relative humidity range: 10 - 90% Network Copper Ethernet cabling technology 100BASE-TX 1000BASE-T 10BASE-T Auto MDI/MDI-X: Yes MAC address auto-aging supported: Yes MAC address auto-learning supported: Yes Flow Control Support: Yes Supported cable types Cat4 Cat5 Cat6 Cat3 Cat5e Auto-Negotiation: Yes 10G Support: Yes Communication standards IEEE 802.3af IEEE 802.3x IEEE 802.3i IEEE 802.3at IEEE 802.3u IEEE 802.3ab IEEE 802.3bt IEEE 802.1p Efficiency No fan: Yes Packaging data Packaging type: Box Package contents User Guide: Yes Ports and interfaces Basic RJ-45 Switching Number of Ethernet Ports: 5 Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000) Data transfer Transfer speed: 7.44 Mpps Store-and-forward: Yes Address table size: 2000 entries Routing/switching capacity: 10 Gbit/s Power over Ethernet (PoE) Total Power over Ethernet (PoE) budget: 66 W Number of Fast Ethernet (PoE) ports: 5 PoE Support: Yes

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

1

Product Type

Network switches
