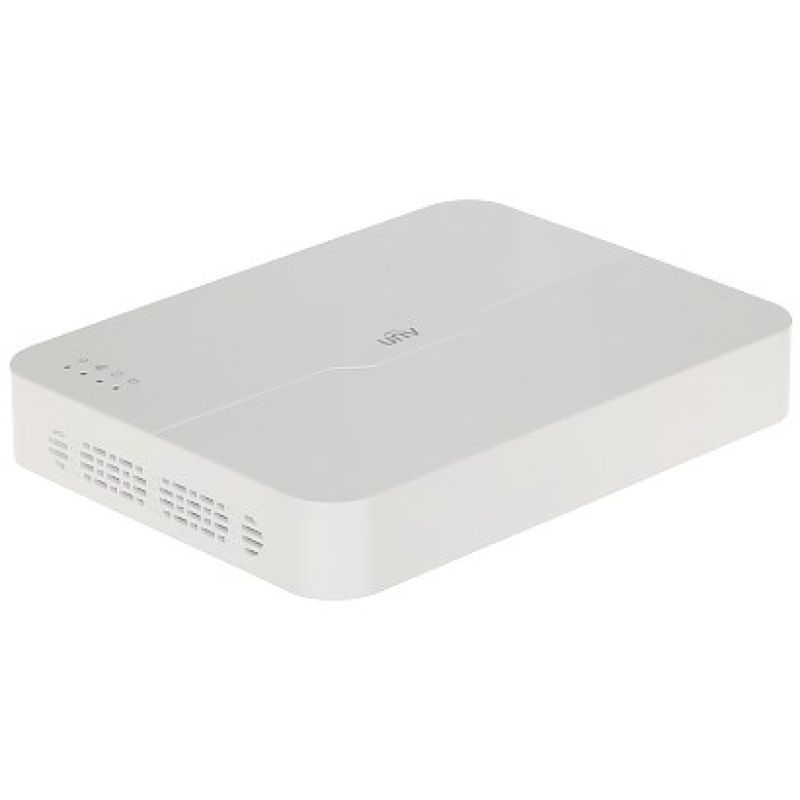

UNIVIEW NVR301-08LS3-P8 IP Recorder 8 channels, 8 PoE

Apraksts

Technical details Certificates of conformity CE RoHS WEEE Sustainability: Yes Characteristics LEDs: Yes Product color: White Power Power over Ethernet (PoE) power per port: 30 W Power consumption: 9 W Operating voltage: 52 V Total Power over Ethernet (PoE) budget: 75 W Weight and dimensions Product height: 46 mm Product weight: 800 g Product width: 270 mm Product depth: 205 mm Working conditions Relative humidity range: 0 - 90% Temperature range (operation): -10 - 55 °C Efficiency Video channel inputs: 8 channels Video motion detection: Yes Number of users: 128 users Output bandwidth: 48 Mbit/s Input bandwidth: 64 Mbit/s Number of simultaneous playback channels: 8 channels. Maximum resolution: 3840 x 2160 px Supported audio formats G.711 μ-law G.711 A-law Supported video file formats H.265 H.264 Video Loss Detection: Yes Photo: Yes Wireless LAN Features Wi-Fi: No Ports and interfaces RCA audio outputs: 1 RCA audio connectors: 1 Data transfer speed via Ethernet LAN 100 Mbps 10 Mbps Supported network protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP Communication standards IEEE 802.3at IEEE 802.3af Number of Ethernet LAN ports (RJ-45): 9 Number of USB 2.0 ports: 2 Hard drive HDD capacity: 0 GB Maximum storage capacity: 6 TB HDD interface: SATA

Category

Industry

Department

Company and Office

Weight (kg)

1.69

Product Type

Video recorders (NVR/DVR)
