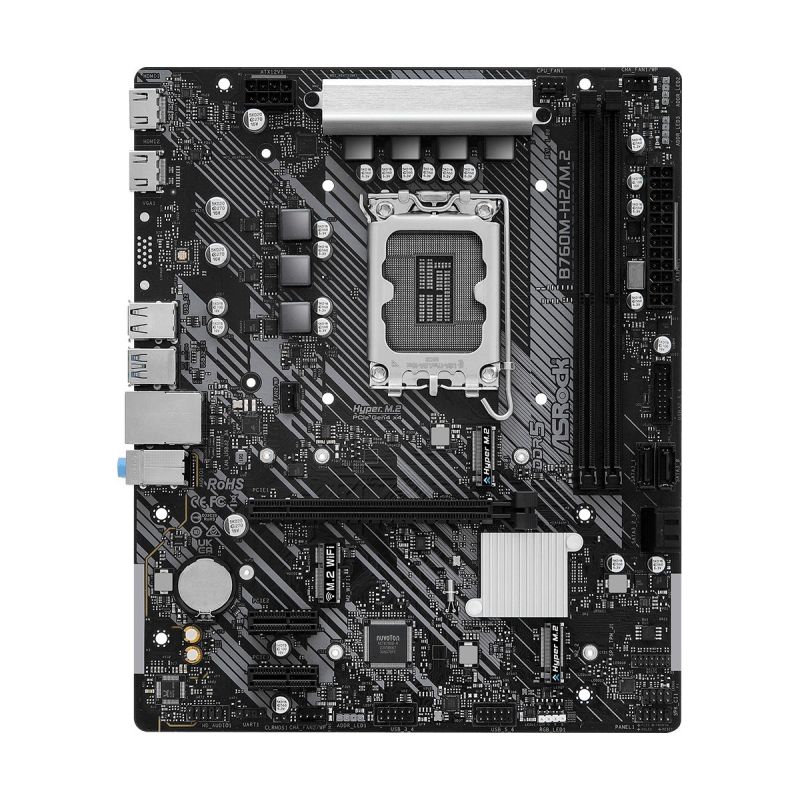

ASRock B760M-H2/M.2 motherboard

Apraksts

Processor Maximum number of SMP processors: 1 Processor manufacturer: Intel Processor Intel® Core™ i5 Intel® Core™ i9 Intel® Core™ i3 Intel® Core™ i7 Processor socket: LGA 1700 Graphics Parallel Processing Support: Not Supported Memory Unbuffered memory: Yes Memory slot type: DIMM Number of memory slots: 2 Supported memory types: DDR5-SDRAM Maximum memory capacity: 96 GB Characteristics Audio output channels: 7.1 ch. Supported Windows operating systems Windows 10 x64 Windows 11 x64 Motherboard format: Micro ATX Chipset Board Family: Intel Audio chip: Realtek ALC897 Motherboard Layout: Intel B760 Weight and dimensions Product width: 244 mm Product depth: 201 mm Internal I/O LED connector: Yes TPM Connector: Yes CPU fan connector: Yes USB 3.2 Gen 1 (3.1 Gen 1) ports: 1 Number of SATA III connectors: 4 ATX power socket (24-pin): Yes Number of USB 2.0 ports: 2 12V power connector (8-pin): Yes Front panel audio connector: Yes Network Ethernet interface type: Gigabit Ethernet LAN controller: Dragon RTL8125BG Wi-Fi: Yes (Requires antenna) Wired LAN: Yes BIOS BIOS Type: UEFI AMI Memory drivers RAID levels 0 5 10 1 Supported drive types: HDD & SSD Supported hard drive interfaces: M.2, SATA III RAID Service: Yes Rear Panel I/O Ports Number of Ethernet LAN ports (RJ-45): 1 Number of USB 2.0 ports: 2 WiFi-AP Antenna Jack Plug: 2 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4 Number of HDMI ports: 2 Number of audio jacks: 3 Expansion slots PCI Express x1 (Gen 3.x) slots: 2 Number of M.2 (M) slots: 1 PCI Express x16 (Gen 4.x) slots: 1 Safety warning Warnings Do not throw the motherboard into the regular trash; the product requires special disposal. Before starting any maintenance or assembly, disconnect the product from the power source. Avoid direct contact with electronics to prevent electrostatic damage.

Category

Computers and accessories

Department

Electronics

Weight (kg)

1

Product Type

Motherboards
