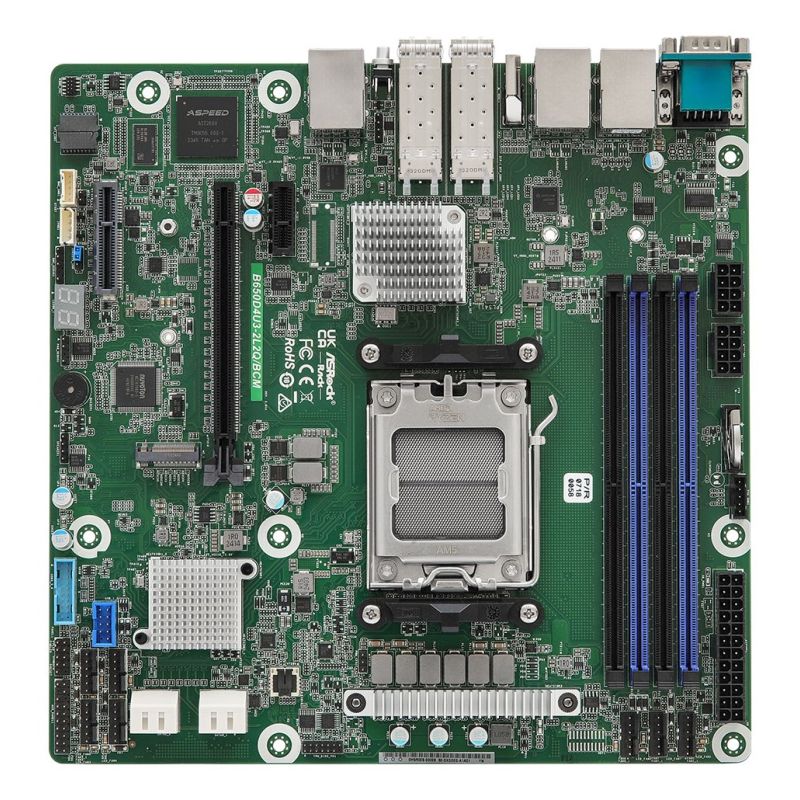

Asrock B650D4U3-2L2Q/BCM AMD B650 Express Motherboard Socket AM5 Micro ATX

Apraksts

Processor Processor AMD EPYC 4004 AMD Ryzen 9000 Series AMD Ryzen 8000 Series AMD Ryzen 7000 Series Processor socket: Socket AM5 Processor manufacturer: AMD Graphics Built-in graphics card model: Aspeed AST2600 Memory ECC Compatibility: Non-ECC Supported memory clock speed (max): 5600 MHz Maximum memory capacity: 48 GB Supported memory clock speeds 5600 MHz 3600 MHz Memory voltage: 1.1 V Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slot type: DIMM Characteristics Motherboard Layout: AMD B650 Express Monitoring computer status Fan Tension Processor Chipset Board Family: AMD Purpose: Server Motherboard format: Micro ATX Weight and dimensions Product width: 244 mm Product depth: 244 mm Working conditions Relative humidity range: 20 - 90% Permissible relative humidity: 20 - 90% Temperature range (storage): -40 - 70 °C Temperature range (operation): 10 - 35 °C Internal I/O TPM Connector: Yes Number of SATA III connectors: 4 ATX power socket (24-pin): Yes EPS power supply connector (8-pin): Yes Number of COM sockets: 1 Serial port connector: 1 Number of USB 2.0 ports: 1 Network Wi-Fi: No Wired LAN: Yes BIOS BIOS Type: UEFI BIOS memory size: 256 Mbit Clear CMOS Jumper: Yes System BIOS (SMBIOS) Version: 3.5 ACPI version: 6.4 Memory drivers Supported hard drive interfaces: M.2, SATA III Rear Panel I/O Ports Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4 Number of Ethernet LAN ports (RJ-45): 2 IPMI LAN Port (RJ-45): Yes Number of HDMI ports: 1 Number of VGA (D-Sub) ports: 1 Expansion slots PCI Express x4 slots (Gen 4.x): 1

Category

Computers and accessories

Department

Electronics

Weight (kg)

1.11

Product Type

Motherboards
