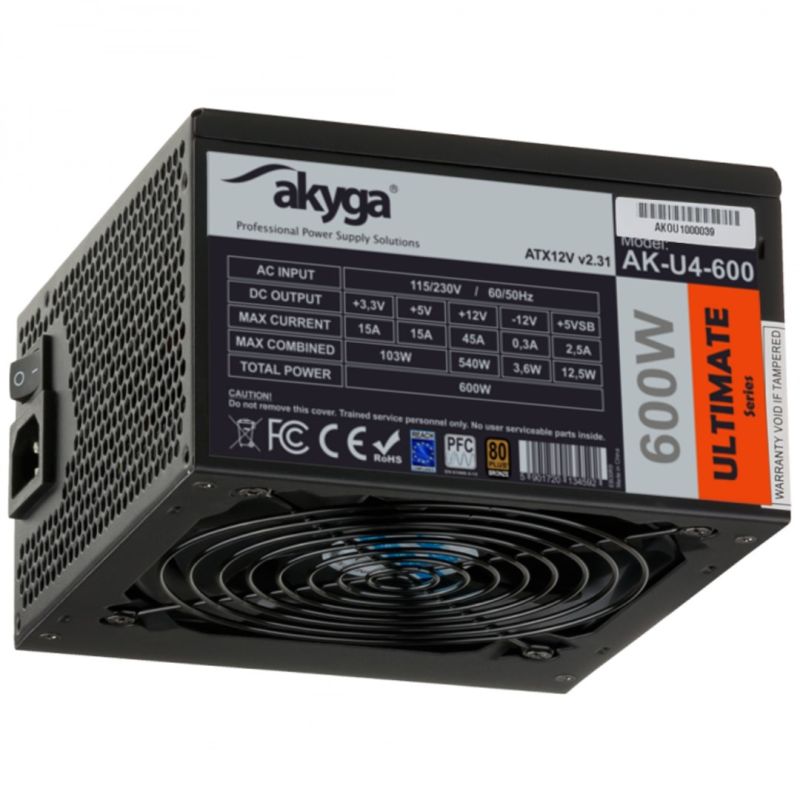

Akyga AK-U4-600 600 W power supply module, 20+4-pin ATX, ATX, Black

Apraksts

Design Fan diameter: 12 cm Number of fans: 1 fan Product colour: Black Power Total power (+12 V): 540 W Power Factor Correction (PFC) type: Active Maximum output current (+5 V): 15 A Input current: 5 A Total power (+5 V): 103 W AC input voltage: 230 V Efficiency: 80% Total power: 600 W Power protection features Under-voltage protection Short-circuit protection Over-voltage protection Total power (+3.3 V): 103 W Weight and dimensions Product width: 150 mm Product height: 85 mm Product depth: 140 mm Product weight: 1.47 kg Operating conditions Operating temperature range: 5–50 °C Performance Power supply unit (PSU) type: ATX MTBF (Mean Time Between Failures): 100000 h Purpose: PC 80 PLUS certification: 80 PLUS Bronze ATX version: 2.31 Packaging data Package depth: 222 mm Package width: 155 mm Weight with packaging: 1.55 kg Package height: 95 mm Package type: Box Certificates Compliance certificates: RoHS Ports and interfaces PCI Express power connectors (6+2-pin): 1 EPS power supply connector (8-pin): Yes Number of SATA power connectors: 6 Cabling type: Non-modular Peripheral power connectors (Molex) (4-pin): 2 Motherboard power connector: 20+4-pin ATX PCI Express power connectors (6-pin): 1

Colour

Black

Category

Computers and accessories

Department

Electronics

Weight (kg)

1
