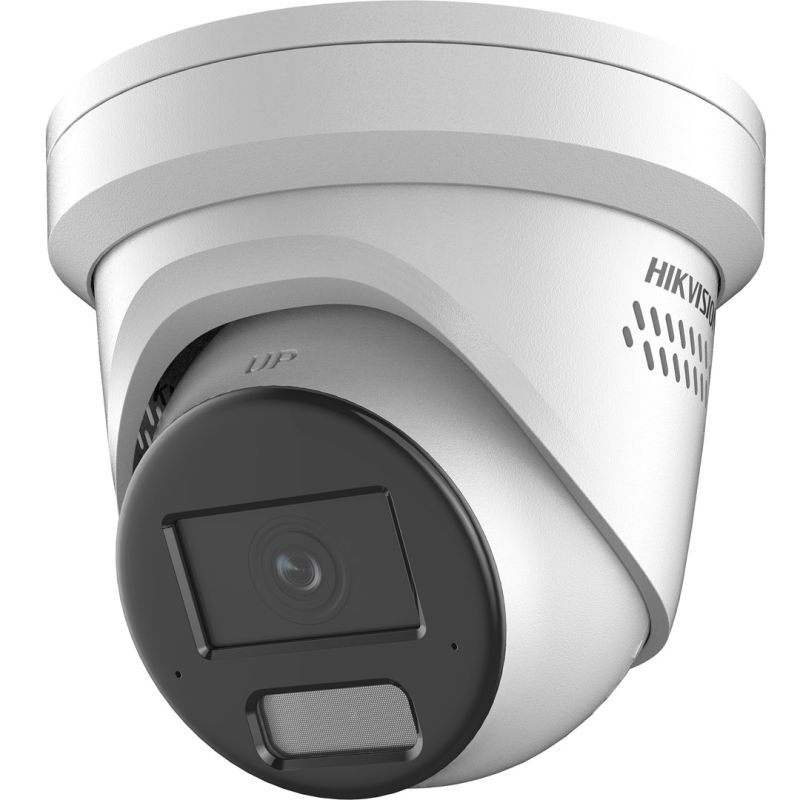

Hikvision DS-2CD2386G2H-IS2U/SL IP camera (2.8MM)

Apraksts

Technical details lens mount interface: M12 Design Housing material: Metal Product color: White IP protection class: IP67 Layout: Rotary Security features Waterproof Dust resistant Mounting type: Ceiling / Wall Power Power supply type: DC, PoE Power consumption (max): 16 W DC Output (Volts): 12 DC Output (Amps): 1.34 A Power consumption (PoE): 18 W Weight and dimensions Diameter: 13.8 cm Product weight: 780 g Product height: 115.4 mm Security Encryption/Security EAP-MD5 EAP-TLS EAP-LEAP IP Filtering: Yes Alarm output channels: 1 HTTS Inscription: Yes Alarm input channels: 1 Automatic Network Replenishment (ANR): Yes Digest Authentication: Yes Password reset via email: Yes Audit log: Yes Human and Vehicle Target Classification: Yes Privacy Protection: Yes Heartbeat: Yes Flash Log: Yes Pixel counter: Yes Digital Watermark: Yes Video motion detection: Yes Active intrusion alarm: Yes Mirror: Yes Network Attached Storage (NAS): Yes Password protection: Yes Intelligent Video Surveillance (IVS) Features: Face Detection Management features Website management: Yes Reset button: Yes Behavior Analysis: Intrusion Detection, Line Crossing Detection Working conditions Temperature range (operation): -30 - 60 °C Relative humidity range: 0 - 95% Permissible relative humidity: 0 - 95% Temperature range (storage): -30 - 60 °C Network Bluetooth: No Client interoperability: iVMS-4200, Hik-Connect Communication standards: IEEE 802.3af Quality of Service (QoS) Support: Yes Number of simultaneous live view channels: 6 channels Wired LAN: Yes Wi-Fi: No Ethernet interface type: Fast Ethernet User access level: Administrator, Operator, User Number of users: 32 users Live View: Yes Efficiency Connection method: Wired Model: IP Security Camera Infrared (IR) Cut-off Filter: Yes Wide Dynamic Range (WDR): Yes Intended use: Outdoor Number of languages: 33 Dynamic range: 120 dB Language Support: Multi Day/Night Mode: Yes Packaging data Package width: 170 mm Package height: 160 mm Package depth: 170 mm Weight with packaging: 1.21 kg Package contents Number of cameras: 1 Audio Supported audio formats MP2L2 AAC-LC G.722.1 MP3 G.726 G.711 μ-law G.711 A-law PCM Audio input channels: 1.0 ch. Audio output channels: 1.0 ch. Signal-to-noise ratio: 52 dB Built-in microphone: Yes Bit rate range: 8 - 320 Kbit/s Sampling rate: 8 - 48 kHz Number of built-in microphones: 2 Data carrier Built-in HDD: No Maximum memory card size: 512 GB Integrated card reader: Yes Supported memory cards MicroSDXC MicroSD MicroSDHC Ports and interfaces Number of Ethernet LAN ports (RJ-45): 1 Terminal Port Blocking: Yes Camera Shutter speed: 1/3 - 1/100000 s Rotation angle: 360° Min. Illumination: 0 lx Tilt angle range: 0 - 75° Swivel range: 0 - 360° Lens viewing angle, diagonal: 130° Lens viewing angle, horizontal: 105° Vertical lens viewing angle: 56° Number of privacy masking areas: 4 Other functions Supported browsers: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+ Photosensitive matrix CCD sensor size: 25.4 / 1.8 mm (1 / 1.8") Progressive Scan: Yes Image sensor type: CMOS Number of sensors: 1 Night mode LED type: Infrared Night Vision Distance: 30 m Night mode: Yes Infrared wavelength: 850 nm Video Total megapixels: 4 MP Highlight Compensation (HLC): Yes Backlight compensation: Yes Regional Area of Interest (ROI) Coding: Yes Noise reduction technology: 3D noise reduction Smart IR: Yes Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR) Noise reduction: Yes Frame rate: 30 fps Maximum resolution: 3840 x 2160 px Supported graphics resolutions 640 x 360 1280 x 720 (HD 720) 2688 x 1520 3200 x 1800 640 x 480 (VGA) 3840 x 2160 1920 x 1080 (HD 1080) Data flow speed: 32 Kbps - 16 Mbps Quality regulation Brightness Contrast Saturation Sharpness Compression formats H.265+ M-JPEG H.265 H.264 H.264+ Video transmission: Yes Control Gain: Automatic Privacy Mask: Yes Video recording: Yes Lens system Detection distance: 89 m Fixed focal length: 2.8 mm Maximum aperture: 1 Observe distance: 35 m Recognition distance: 17 m Number of lenses: 1 Determining distance: 8 m Safety warning Warnings Make sure the product is properly installed and secured to prevent mechanical damage. Avoid direct contact with water to prevent electrical damage. The product contains electronic components and should not be disposed of in regular waste. Sustainable development Certificates of conformity CE CB UL Low Voltage Directive (LVD) RoHS

Category

Industry

Department

Company and Office

Weight (kg)

1.16

Product Type

Security cameras
