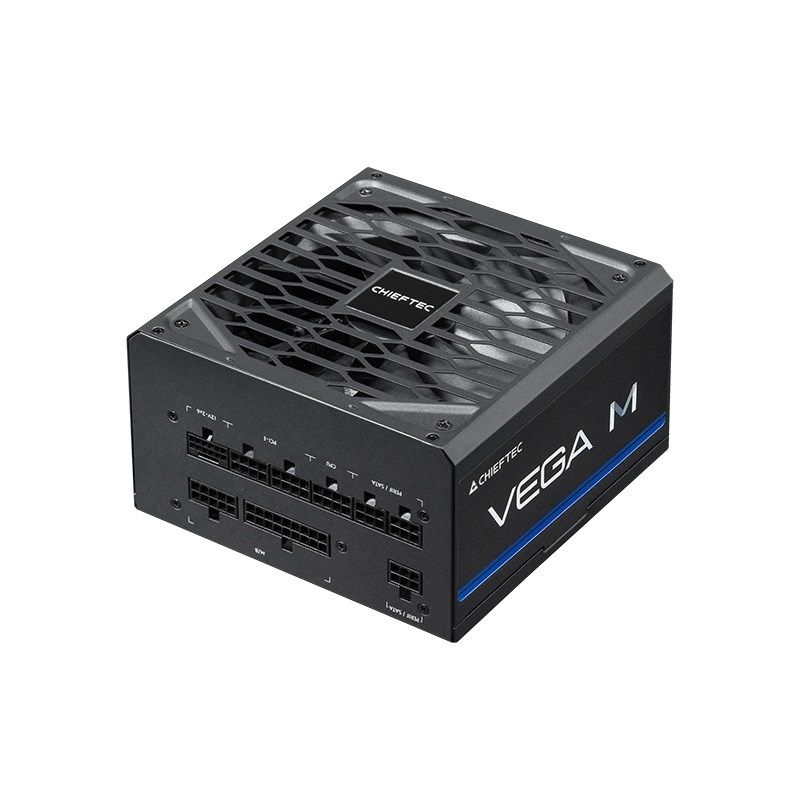

Chieftec Vega M Series PPG-750-C 80+ Gold ATX Power Supply

Apraksts

Design Fan diameter: 13.5 cm Cooling type: Active Product colour: Black Lighting: No Power Total power (+5 V): 100 W AC input frequency: 50/60 Hz PFC (Power Factor Correction) type: Active AC input voltage: 100–240 V Total power: 750 W Maximum output current (-12 V): 0.3 A Maximum output current (+5 V): 20 A Maximum output current (+3.3V): 20 A Total power (+3.3 V): 100 W Maximum output current (+12 V1): 62.5 A Weight and dimensions Product depth: 150 mm Product width: 150 mm Product height: 85 mm Product weight: 1.96 kg Performance Power supply type (PSU): ATX Purpose: PC Bearing technology: FDB 80 PLUS certification: 80 PLUS Gold ATX version: 3.1 Packaging data Weight including packaging: 2.43 kg Ports and interfaces EPS power supply connector (8-pin): Yes SATA power cable length: 400 mm Motherboard cable length: 60 cm PCI Express power connectors (6+2-pin): 4 ATX power socket (24-pin): Yes CPU power cable length: 65 cm Peripheral power connectors (Molex) (4-pin): 3 Number of SATA power connectors: 6 Cabling type: Fully modular Motherboard power connector: 20+4-pin ATX PCI Express power connectors (12+4-pin): 1 PCI Express power connectors (12+4-pin) cable length: 600 mm CPU power supply connector (4+4-pin): Yes EPS power connector (4+4-pin): Yes ATX power supply connector (20+4-pin): Yes Peripheral (Molex) power cable length: 400 mm

Colour

Golden

Category

Computers and accessories

Department

Electronics

Weight (kg)

1

Product Type

Power supplies
