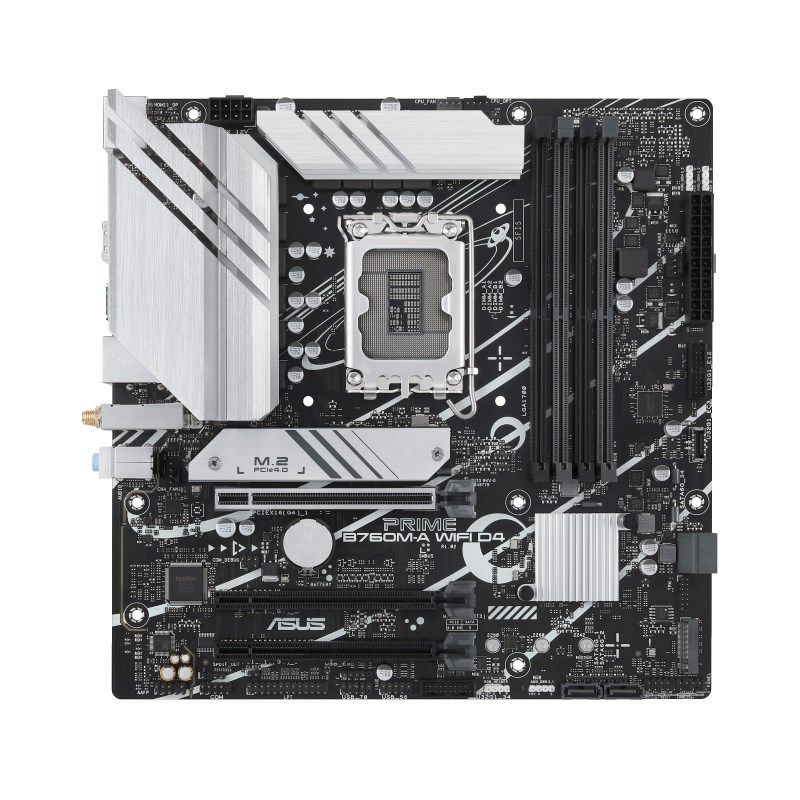

ASUS PRIME B760M-A WIFI D4 motherboard

Apraksts

Processor Supported CPU sockets: LGA 1700 Processor manufacturer: Intel Processor Intel® Core™ i3 Intel® Core™ i5 Intel® Celeron® Intel® Core™ i7 Intel® Core™ i9 Intel® Pentium® Gold Processor socket: LGA 1700 Graphics Parallel Processing Support: Not Supported Memory Memory Channel Support: Dual Channel Number of memory slots: 4 Supported memory clock speed (max): 5333 MHz Memory slot type: DIMM Supported memory types: DDR4-SDRAM Supported memory clock speeds 3000 MHz 2800 MHz 3333 MHz 4400 MHz 4266 MHz 5066 MHz 3466 MHz 3600 MHz 2400 MHz 4000 MHz 5333 MHz 2933 MHz 4800 MHz 5000 MHz 3200 MHz 2666 MHz 3733 MHz 2133 MHz 3400 MHz 4600 MHz Unbuffered memory: Yes ECC Compatibility: Non-ECC Maximum memory capacity: 128 GB Characteristics Supported Windows operating systems Windows 11 Windows 10 x64 Motherboard format: Micro ATX Audio output channels: 7.1 ch. Chipset Board Family: Intel Motherboard Layout: Intel B760 Weight and dimensions Product depth: 244 mm Product width: 244 mm Internal I/O Number of SATA III connectors: 4 Number of USB 2.0 ports: 3 ATX power socket (24-pin): Yes Front panel audio connector: Yes USB 3.2 Gen 1 (3.1 Gen 1) ports: 3 Number of COM sockets: 1 TPM Connector: Yes Number of case fan connectors: 2 CPU fan connector: Yes EPS power supply connector (8-pin): Yes RGB LED: Yes 12V power connector: Yes S/PDIF jack: Yes Network Wi-Fi standards Wi-Fi 4 (802.11n) 802.11b Wi-Fi 6 (802.11ax) Wi-Fi 5 (802.11ac) 802.11g 802.11a Basic Wi-Fi standard: Wi-Fi 6 (802.11ax) Wi-Fi: Yes Ethernet interface type: 2.5 Gigabit Ethernet Bluetooth version: 5.2 Wired LAN: Yes Bluetooth: Yes BIOS Clear CMOS Button: Yes BIOS Type: UEFI AMI Packaging data Weight with packaging: 1.4 kg Package width: 275 mm Package height: 67.5 mm Package depth: 275 mm Package contents Cables: SATA Memory drivers Supported hard drive interfaces: M.2, SATA III RAID levels 0 5 10 1 RAID Service: Yes Number of supported storage drive sizes: 6 Supported drive types: HDD & SSD Rear Panel I/O Ports HDMI version: 2.1 Number of HDMI ports: 2 Number of Ethernet LAN ports (RJ-45): 1 DisplayPort Quantity: 1 Number of USB 2.0 ports: 4 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2 DisplayPort version: 1.4 Number of PS/2 ports: 1 Microphone: Yes Headphone outputs: 3 Line Input: Yes Expansion slots Number of M.2 (M) slots: 2 PCI Express x16 (Gen 4.x) slots: 3 Safety warning Warnings Before starting any maintenance or assembly, disconnect the product from the power source. Do not throw the motherboard into the regular trash; the product requires special disposal. Avoid direct contact with electronics to prevent electrostatic damage.

Category

Computers and accessories

Department

Electronics

Weight (kg)

1.46

Product Type

Motherboards
