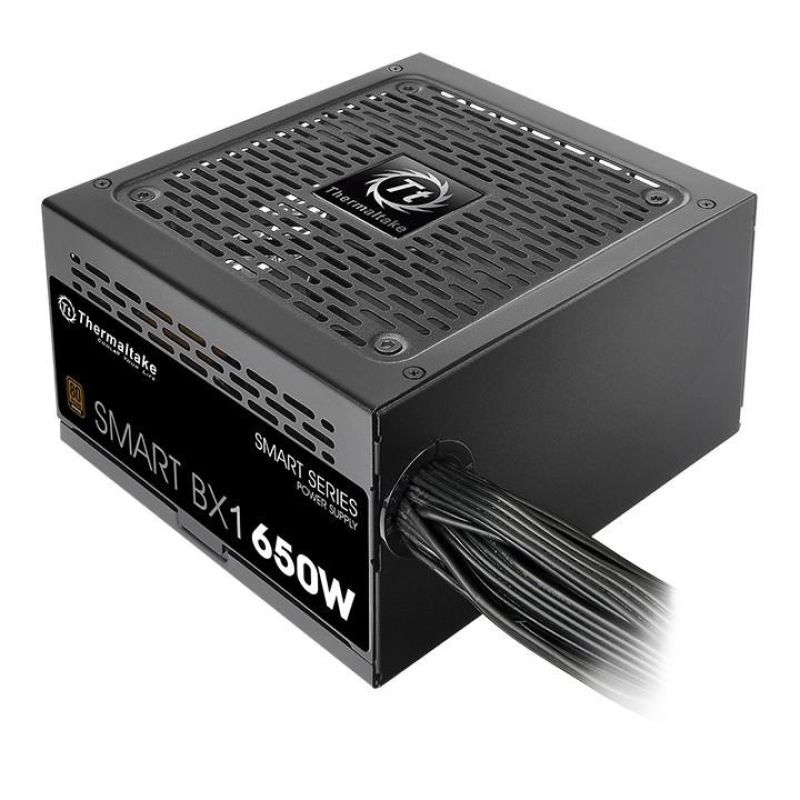

Thermaltake Smart BX1 PS-SPD-0650NNSABE-1 Power Supply (650W; Active; 120mm)

Apraksts

Design Number of fans: 1 fan Fan bowl diameter: 12 cm Built-in switch: Yes Cooling type: Active Product color: Black Power Peak power: 80 W Total power (+12V): 576 W Maximum output current (+5 Vsb): 2.5 A Maximum output current (+5V): 17A AC input frequency: 50 - 60 Hz Total power (+5V): 110 W Maximum output current (-12V): 0.5A Maximum output current (+12V): 48A AC input voltage: 100 - 240 V Input current: 12 A Maximum output current (+3.3V): 23 A Total power: 650 W Total power (+5 Vsb): 12.5 W Total power (-12V): 6 W PFC (Power Factor Correction) Type: Active Total power (+3.3V): 110 W Weight and dimensions Product width: 150 mm Product depth: 140 mm Product height: 86 mm Working conditions Temperature range (storage): -40 - 55 °C Permissible relative humidity: 10 - 95% Temperature range (operation): 5 - 40 °C Relative humidity range: 20 - 85% Efficiency 80 PLUS Certificate: 80 PLUS Bronze EPS version: 2.92 Power supply type (PSU): ATX Intended use: PC ATX version: 2.3 MTBF (Mean Time Between Failures): 100000 h Package contents Cables: Processor, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA Ports and interfaces Motherboard cable length: 60 cm CPU power cable length: 1 mm PCI Express power connectors (6+2 pin): 2 Peripheral (Molex) Power Cable Length 150 500 mm Wiring Type: Non-Modular Number of SATA power connectors: 6 CPU power supply connector (4+4 pin): Yes SATA power cable length 150 500 mm PCI Express power cable length: 50 cm PCI Express slot: Yes Peripheral (Molex) Power Connectors (4-pin): 4 Motherboard power connector: 24-pin ATX

Category

Computers and accessories

Department

Electronics

Weight (kg)

2.02

Product Type

Power supplies
