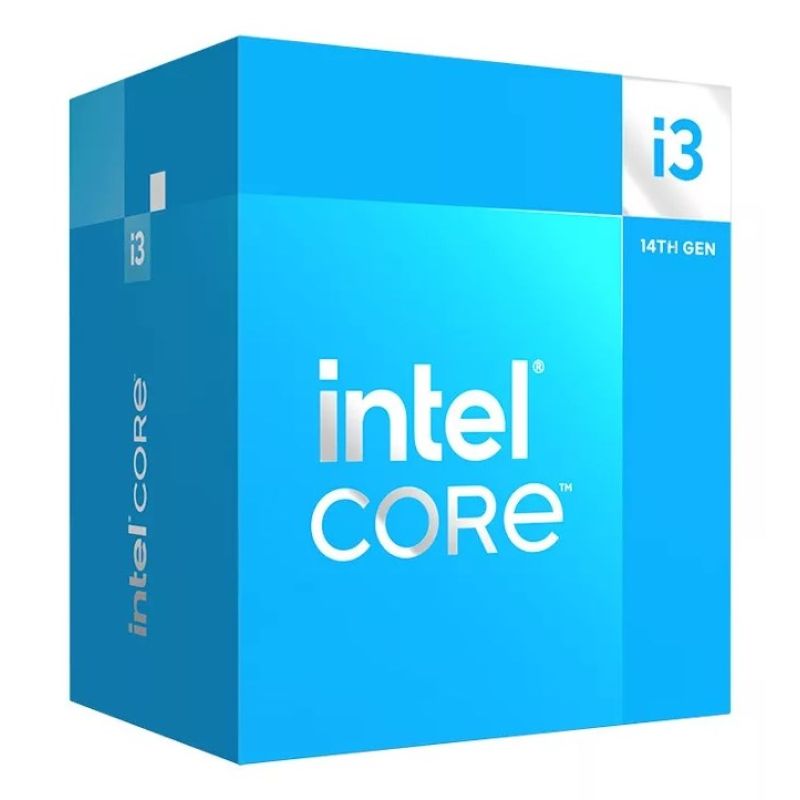

Intel Core i3-14100 Processor 3.5 GHz/4.7 GHz LGA1700 BX8071514100 BOX

Apraksts

Technical details OpenCL version: 3.0 Status: Launched Release date: Q1'24 Processor Core Boost Frequency: 4.7 GHz Efficient cores: 4 Maximum turbo power: 110 W High-performance core base frequency: 3.5 GHz Maximum number of DMI paths: 8 Base CPU power: 60 W Processor generation: Intel Core i3-14xxx Processor model: i3-14100 Processor Cache: 12 MB Memory bandwidth supported by the processor (max): 76.8 GB/s Packaging type: Box ARK Processor ID: 236774 Processor Codename: Raptor Lake Maximum processor clock speed: 4.7 GHz Processor type: Intel® Core™ i3 Stepping: H0 Processor operating mode: 64-bit Processor memory type: Smart Cache Number of threads: 8 Number of processor cores: 4 Processor manufacturer: Intel Processor socket: LGA 1700 Includes cooling system: Yes Graphics Multi-format codec engines: 1 Number of monitors supported (built-in graphics card): 4 Built-in graphics card: Yes Built-in graphics device ID: 0x4692 Supported integrated graphics card outputs HDMI 2.1 Embedded DisplayPort (eDP) 1.4b DisplayPort 1.4a Built-in graphics card model: Intel UHD Graphics 730 Dynamic clock speed of the built-in graphics card (max): 1500 MHz DirectX version of the built-in graphics card: 12.0 Number of execution units: 24 Dedicated graphics card model: Not available Maximum resolution of the integrated graphics card (DisplayPort): 7680 x 4320 px Dedicated graphics card: No Onboard graphics card OpenGL version: 4.5 Integrated graphics refresh rate at maximum resolution (DisplayPort): 60 Hz Integrated graphics refresh rate at maximum resolution (eDP - built-in display): 120 Hz Integrated graphics refresh rate at maximum resolution (HDMI): 60 Hz Maximum resolution of the integrated graphics card (eDP - built-in display): 5120 x 3200 px Maximum resolution of the built-in graphics card (HDMI): 4096 x 2160 px Memory Maximum internal memory supported by the processor: 192 GB Memory Channel Support: Dual Channel Memory types supported by the processor DDR5-SDRAM DDR4-SDRAM Memory bandwidth: 76.8 GB/s Characteristics Commodity Classification Automated Tracking System (CCATS): 740.17B1 Export Control Classification Number (ECCN): 5A992C Direct Media Interface (DMI) Revision: 4.0 Terms of use: PC/Client/Tablet Thermal Monitoring Technologies: Yes Slot version (PCI Express) 5.0 4.0 Supported instruction sets SSE4.2 AVX 2.0 SSE4.1 Maximum PCI Express lanes: 20 Execute Disable Bit (EDB) Technology: Yes Scalability: 1S Idle: Yes PCI Express configurations 2x8+1x4 1x16+1x4 Maximum CPU configuration: 1 Built-in options available: Yes Market segment: Desktop Weight and dimensions Processor package size: 45 x 37.5 mm Working conditions T-Splitter: 100 °C Special features of the processor Intel® Control-flow Enforcement Technology (CET): Yes Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes Intel® Standard Management (ISM): Yes Intel® 64: Yes Intel® Virtualization Technology (Directed I/O) (VT-d): Yes Intel® Turbo Boost Technology: 2.0 New AES Instructions (Intel® AES-NI): Yes Intel® Hyper Threading Technology (Intel® HT Technology): Yes Enhanced Intel SpeedStep Technology: Yes Intel® OS Guard: Yes Intel® Secure Key: Yes Intel® VT-x with Extended Page Tables (EPT): Yes Intel® Virtualization Technology (VT-x): Yes Intel® Quick Sync Video Technology: Yes Intel® Clear Video HD Technology (Intel® CVT HD): Yes Mode Based Control System (MBE): Yes Intel® Speed Shift Technology: Yes Intel® Volume Management Device (VMD): Yes Intel® Boot Guard: Yes Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes Other functions Maximum memory capacity: 192 GB L2 Cache: 5120 KB Graphics: eDP 1.4b, DP 1.4a, HDMI 2.1 Logistics data Harmonized System (HS) code: 8542310001

Category

Computers and accessories

Department

Electronics

Weight (kg)

1
