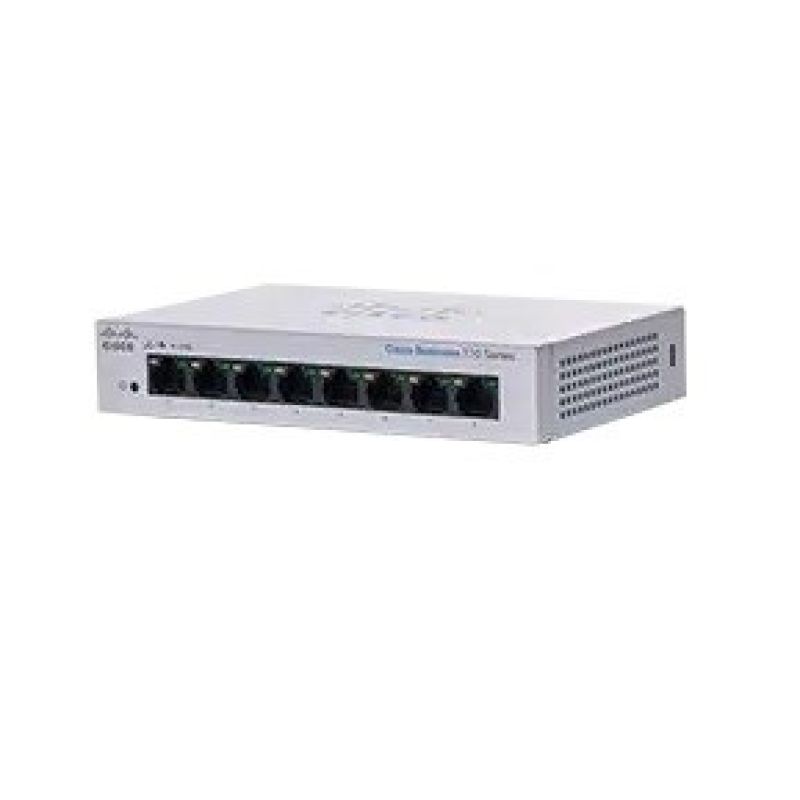

Cisco CBS110-8T-D-EU Switch

Apraksts

Design Rack mounting: No Product colour: Grey LED indicators: Yes Power Redundant Power System (RPS) support: No DC input voltage: 12 V Number of power supplies: 1 Power supply included: Yes Weight and dimensions Product height: 30 mm Product width: 160 mm Product depth: 104 mm Product weight: 430 g Protection Queue scheduling algorithms: Weighted Round Robin (WRR) Management features Switching layer: L2 Switch type: Unmanaged Quality of Service (QoS) support: Yes Operating conditions Permissible relative humidity: 5 - 90% Heat dissipation: 14.09 BTU/h Storage temperature range: -20 - 70 °C Operating temperature range: 0 - 40 °C Relative humidity range: 10 - 90% Network Flow control support: Yes 10G support: No Full duplex: Yes Head-of-line blocking (HOL): Yes Auto MDI/MDI-X: Yes Copper Ethernet cabling technology 100BASE-TX 1000BASE-T 10BASE-T Half duplex: Yes Ethernet LAN data transfer rate: 10,100,1000 Mbit/s Communication standards IEEE 802.3u IEEE 802.3az IEEE 802.3ab IEEE 802.3 IEEE 802.1p IEEE 802.3x Performance MTBF (Mean Time Between Failures): 2066844 h Packaging data Quick start guide: Yes Ports and interfaces Number of RJ-45 Ethernet ports for basic switching: 8 Number of Gigabit Ethernet ports: 8 Type of RJ-45 Ethernet ports for basic switching: Gigabit Ethernet (10/100/1000) Logistics data Harmonized System (HS) code: 85176990 Data transmission Jumbo Frames extension: 9216 Address table size: 8192 entries Jumbo Frames support: Yes Number of queues: 4 Forwarding rate: 11.9 Mpps Routing/switching capacity: 16 Gbit/s Power over Ethernet (PoE) PoE support: No Safety warning Warnings The product is not suitable for disposal in regular household waste. Take used electronic equipment to a disposal point in accordance with local regulations. Do not open the housing or attempt to repair the device yourself. Ensure that the device is adequately ventilated during operation.

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

1

Product Type

Network switches
