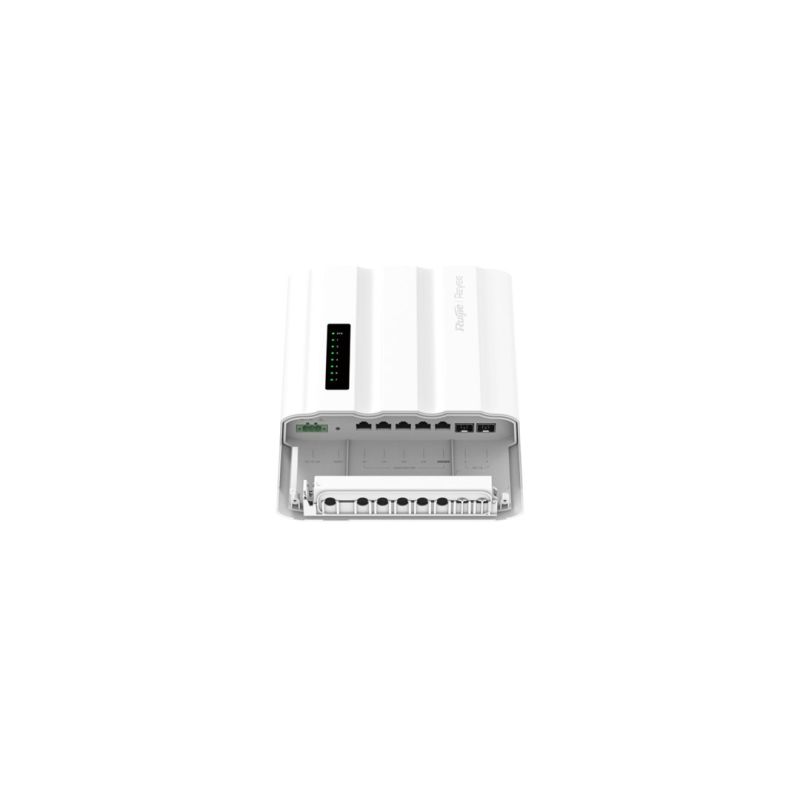

POE SWITCH RG-ES207GS-PI-OD, 4-PORT + 1X UPLINK + 2X SFP, IP65, REYEE

Apraksts

Design LED indicators: Yes Housing material: Plastic Product colour: White Reset button: Yes Wall mountable: Yes Power Power protection features: Overvoltage protection Power consumption (max): 66 W Power source: DC/PoE DC input voltage: 12 V Input current: 0.5 A Energy-Efficient Ethernet (EEE) mode: Yes Weight and dimensions Product width: 258 mm Product depth: 200 mm Product weight: 950 g Product height: 62,8 mm Protection DHCP features DHCP client DHCP snooping Management features Switch type: Managed Switch layer: L2 Cloud-managed: Yes System event report: No Operating conditions Temperature range (storage): -40 - 70 °C Relative humidity range: 10 - 90% Permissible relative humidity: 5 - 95% Permissible operating altitude (above sea level): -500 - 5000 m Temperature range (operation): -30 - 65 °C Network VLAN support: Yes 10G support: No Number of VLANs: 32 Port mirroring: Yes Traffic flow control: Yes Link aggregation: Yes Flow control support: Yes Communication standards IEEE 802.3af IEEE 802.3bt IEEE 802.3at Performance Fanless: Yes MTBF (Mean Time Between Failures): 200000 h Flash memory size: 8 MB Device software updates: Yes Packaging data Weight with packaging: 1,61 kg Package contents Hook mounting kit: Yes User manual: Yes Certificates Compliance certificates CE CB Protocols IPv4 and IPv6 features: IPv4 ping Ports and interfaces Basic Ethernet switching RJ-45 port type: Gigabit Ethernet (10/100/1000) Fiber optic connector: SFP Number of basic switching RJ-45 Ethernet ports: 5 Number of ports: 2 Data transmission Routing/switching capacity: 14 Gbit/s Forwarding rate: 10,42 Mpps Jumbo Frames support: Yes Address table size: 2000 entries Power over Ethernet (PoE) Number of Fast Ethernet (PoE) ports: 4 Total Power over Ethernet (PoE) budget: 60 W PoE support: Yes Number of Power over Ethernet Plus (PoE+) ports: 4

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

2.44

Product Type

Network switches
