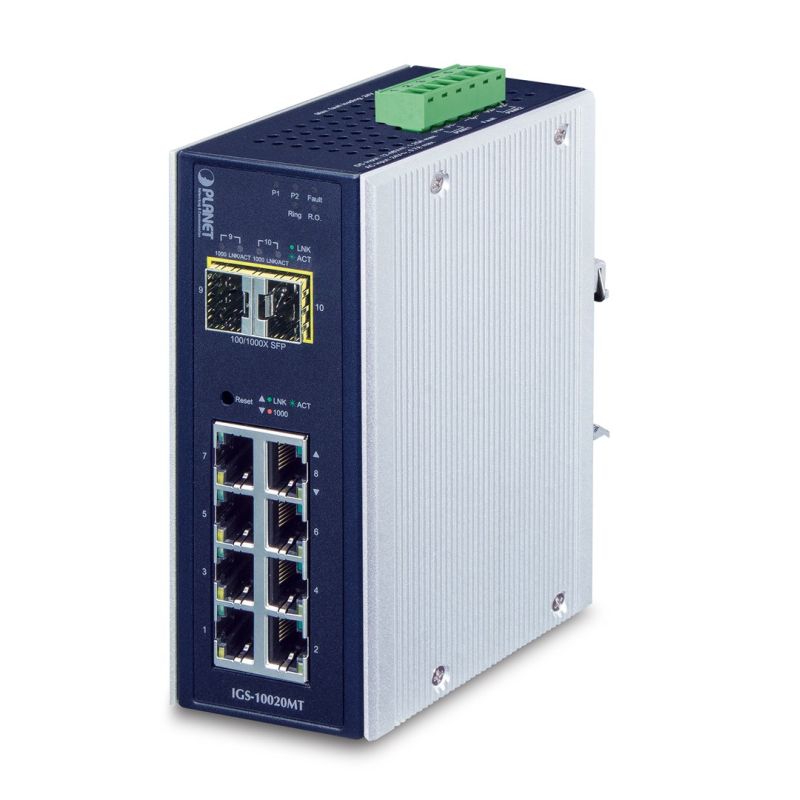

Planet IGS-10020MT industrial switch 10p Managed Gigabit/Multigigabit

Apraksts

Design DIN rail mounting: Yes IP protection class: IP30 LEDs: Yes Rack mounting options: No Housing material: Aluminum Product color: Black Wall mountable: Yes Power Power consumption: 10 W Weight and dimensions Product weight: 720 g Product width: 56 mm Product depth: 87.8 mm Product height: 135 mm Security IGMP snooping: Yes Access Control List (ACL): Yes Encryption/Security SSH SSL/TLS 802.1x RADIUS Management features MIB support: MIB, MIB-II Switch Layer: L2+ Switch type: Managed Quality of Service (QoS) Support: Yes Website management: Yes Working conditions Heat emission: 34 BTU/h Permissible relative humidity: 5 - 95% Temperature range (storage): -40 - 75 °C Relative humidity range: 5 - 95% Temperature range (operation): -40 - 75 °C Network Port Mirroring: Yes Spanning Tree Protocol: Yes 10G Support: No Number of VLANs: 255 Flow Control Support: Yes Connection Aggregator: Yes Full duplex: Yes Auto MDI/MDI-X: Yes Communication standards IEEE 802.3u IEEE 802.1w IEEE 802.3z IEEE 1588 IEEE 802.1D IEEE 802.1ab IEEE 802.1Q IEEE 802.3ah IEEE 802.1p IEEE 802.3 IEEE 802.3bz IEEE 802.1ad IEEE 802.1x IEEE 802.3ad IEEE 802.1s IEEE 802.3x IEEE 802.3ab IEEE 802.1ag VLAN support: Yes Copper Ethernet cabling technology 100BASE-TX 1000BASE-T 10BASE-T Efficiency Buffer size: 512 KB Device software updates: Yes Protocols Management protocols: SSH, SSL, SNMP, Telnet Ports and interfaces Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000) Basic RJ-45 Switching Number of Ethernet Ports: 8 Number of SFP Module slots: 2 Logistics data Harmonized System (HS) code: 85176990 Data transfer Throughput: 14.8 Mpps Jumbo Frames Expansion: 9000 Store-and-forward: Yes Number of rounds: 8 Address table size: 8000 entries Routing/switching capacity: 26 Gbit/s Jumbo Frame Compatible: Yes Power over Ethernet (PoE) PoE Support: No Multicast functions Multicast Support: Yes Safety warning Warnings Avoid contact of the device with liquid. Make sure the device's ventilation is not blocked. Follow electrical safety guidelines.

Category

Computers and accessories

Department

Electronics

Weight (kg)

1.01

Product Type

Network switches
