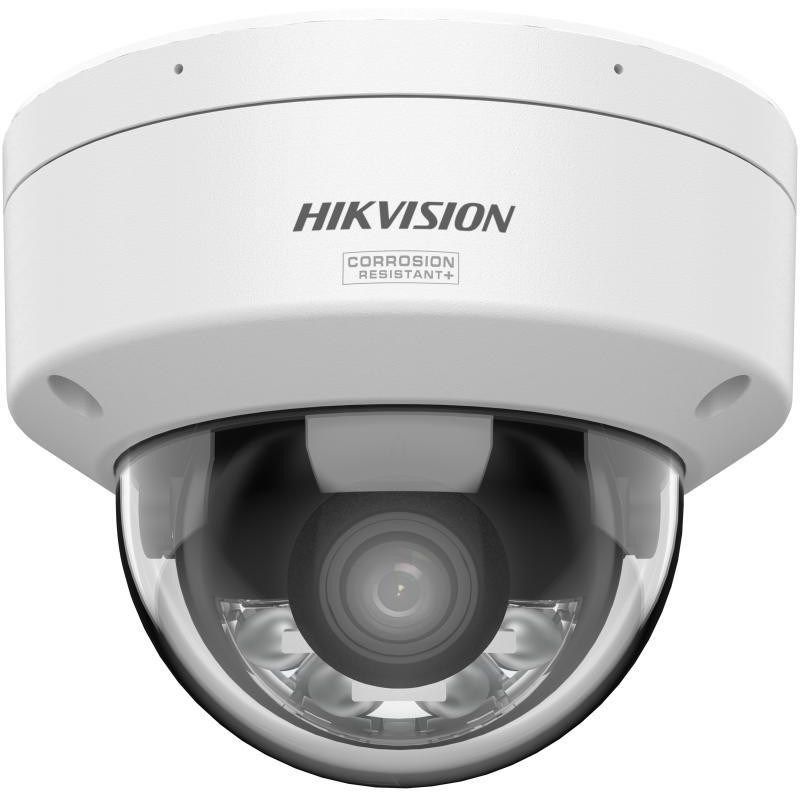

DS-2CD2167G3-LIS2UY 2.8 mm HIKVISION camera

Apraksts

Construction Product colour: White IK code: IK10 IP protection rating: IP67 Form factor: Dome Mounting type: Ceiling Power Power supply type: DC, PoE Power consumption (max): 9 W DC output (in amperes): 0,75 A DC output (in volts): 12 Power consumption (Power over Ethernet (PoE)): 10,5 W Weight and dimensions Product height: 97,6 mm Product weight: 600 g Diameter: 12,2 cm Protection Alarm input channels: 1 Alarm output channels: 1 Mirror: Yes Anti-glare: Yes Pixel counter: Yes People and vehicle target classification: Yes Audit log: Yes Flash log: Yes Digest authentication: Yes Automatic Network Replenishment (ANR): Yes Video motion detection: Yes Network Attached Storage (NAS): Yes Heartbeat: Yes Privacy protection: Yes Password reset via email: Yes Management features Reset button: Yes Management software: iVMS-4200,Hik-Connect,Hik-Central Cloud-managed: Yes Remotely controlled: Yes Operating conditions Operating temperature range: -30 - 60 °C Storage temperature range: -30 - 60 °C Relative humidity range: 0 - 95% Permissible relative humidity: 0 - 95% Network Bluetooth: No Wi-Fi: No Wired LAN: Yes User access level: Administrator, Operator, User Live view: Yes Number of simultaneous live view channels: 6 ch. Number of users: 32 users Performance Connectivity technology: Wired Model: IP security camera Wide Dynamic Range (WDR): Yes Built-in light: Yes Infrared (IR) cut-off filter: Yes Day/night mode: Yes Alarm I/O: Yes Language support: Multilingual Number of languages: 33 Suitable for: Indoor / outdoor Dynamic range: 130 dB Packaging data Package depth: 120 mm Weight with packaging: 825 g Package width: 234 mm Package height: 117 mm Packaging content User manual: Yes Number of cameras: 1 Audio Signal-to-noise ratio: 52 dB Supported audio formats MP2L2 AAC-LC G.711 μ-law G.722.1 G.711 A-law MP3 Built-in microphone: Yes Built-in speakers: Yes Number of built-in microphones: 2 Bit rate range: 8 - 380 Kbit/s Sampling rate: 8 - 48 kHz Storage media Built-in HDD: No Supported memory cards MicroSDXC MicroSD MicroSDHC Integrated card reader: Yes Maximum memory card size: 512 GB Ports and interfaces Number of Ethernet LAN ports (RJ-45): 1 Camera Pan range: 0 - 355° Rotation angle: 355° Minimum illumination: 0 lx Shutter speed: 1 - 1/100000 s Tilt angle range: 0 - 75° Lens viewing angle, diagonal: 134.3° Lens viewing angle, vertical: 56.4° Lens viewing angle, horizontal: 108.8° Number of privacy masking areas: 8 Image sensor Progressive scan: Yes CCD sensor size: 25,4 / 1,8 mm (1 / 1.8") Image sensor type: CMOS Number of sensors: 1 Night mode Night vision distance: 30 m LED type: Infrared/white Night mode: Yes Infrared wavelength: 850 nm Video Supported video file formats H.265 H.265+ H.264+ H.264 Regional region of interest (ROI) encoding: Yes Highlight Compensation (HLC): Yes Backlight compensation: Yes Noise reduction: Yes Bit rate control: Constant bit rate (CBR), Variable bit rate (VBR) Data transfer rate: 32 Kbps to 8 Mbps Noise reduction technology: 3D noise reduction Maximum resolution: 3200 x 1800 px Frame rate: 30 fps Total megapixels: 6 MP Compression formats H.265 H.264 H.265+ H.264+ Video recording: Yes Smart IR: Yes Video streaming: Yes Lens system Fixed focus: Yes Detection distance: 89 m Determination distance: 8 m Number of lenses: 1 Maximum aperture: 1 Recognition distance: 17 m Observation distance: 35 m Fixed focal length: 2,8 mm

Category

Industry

Department

Company and Office

Weight (kg)

1.35

Product Type

Security cameras
