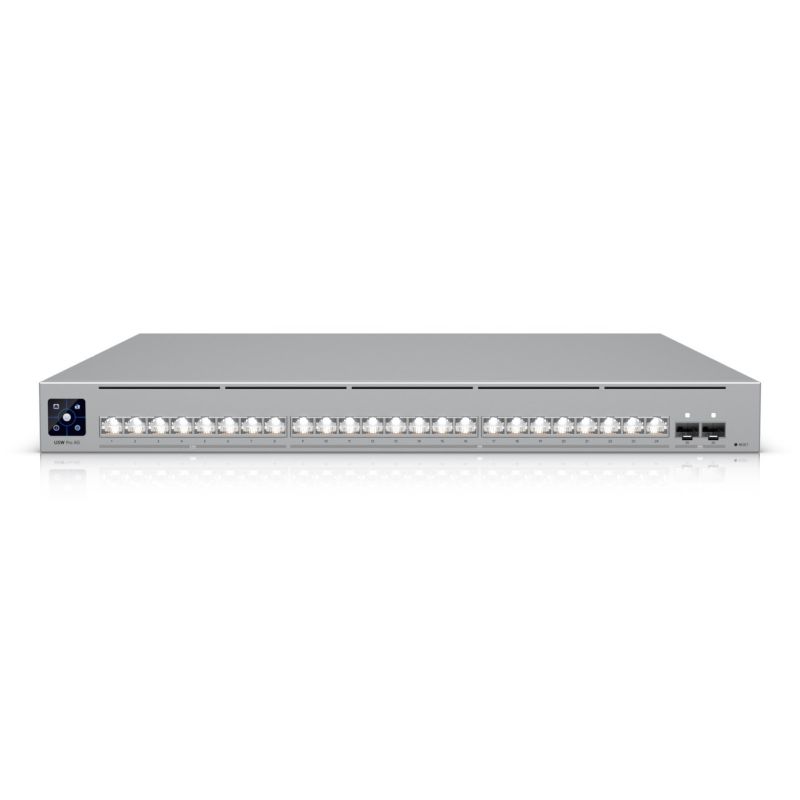

Switch Ubiquiti USW-Pro-XG-24

Apraksts

Design Stackable: Yes Rack mounting options: Yes Reset button: Yes Backlit screen: Yes Product color: Gray Housing material: SGCC (hot galvanized steel) Display type: LCM Layout: 1U Power Backup Power Supply (RPS) Support: Yes AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Power supply included: Yes Power consumption (max): 150 W Power source: AC/DC Weight and dimensions Product width: 442 mm Product weight: 7.2 kg Product height: 44 mm Product depth: 480 mm Security IGMP snooping: Yes DHCP functions DHCPv6 snooping DHCP relay DHCP guarding DHCP server Loop protection: Yes Access Control List (ACL) IPv4 entries: 256 Management features Quality of Service (QoS) Support: Yes Switch type: Managed Switch Layer: L2/L3 Working conditions Relative humidity range: 10 - 90% Temperature range (operation): -5 - 40 °C Network IPv4 routes: 256000 Port Mirroring: Yes Frequency Limit: Yes Flow Control Support: Yes Number of VLANs: 1000 VLAN support: Yes Virtual LAN Features Interface-based VLAN Voice VLAN 10G Support: Yes Traffic Growth Control: Yes Package contents Wires: Power Hook mounting kit: Yes Certificates Certificates of conformity CE Federal Communications Commission (FCC) Industry Canada (IC) National Defense Authorization Act (NDAA) Ports and interfaces Basic RJ-45 Switching Number of Ethernet Ports: 24 Basic Ethernet Switching RJ-45 Ports Type: 10G Ethernet (100/1000/10000) Number of 2.5G Ethernet ports (copper): 8 Power connector: AC/DC Number of 10G Ethernet ports (copper): 16 Number of SFP28 ports: 2 Data transfer Packet buffer memory: 8 MB Transfer speed: 342 Mpps Static Route: Yes Routing/switching capacity: 460 Gbit/s Performance: 230 Gbps Address table size: 128000 entries Jumbo Frame Compatible: Yes Power over Ethernet (PoE) PoE Support: No Multicast functions Multicast Support: Yes

Category

Computers and accessories

Department

Electronics

Weight (kg)

7.3

Product Type

Network switches
