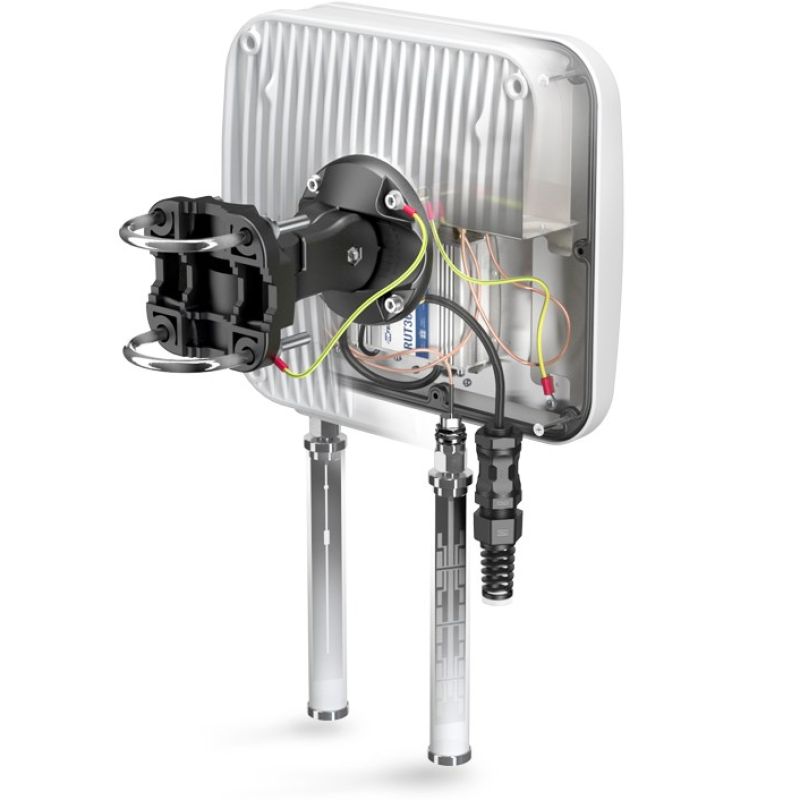

QuWireless QuMax directional antenna PoE/LAN 6 dBi

Apraksts

Features Product colour: White Antenna type: Directional antenna Cable length: 0.38 m Protection features Waterproof Waterproof Polarisation: Vertical polarisation Intended use: Indoor / outdoor Voltage standing wave ratio (VSRW): 1.80 - 2 Mounting type: Wall/Pole Antenna connector type: PoE/LAN Water resistance: Yes Housing material Aluminium Acrylonitrile butadiene styrene copolymer (ABS) Fibreglass Polytetrafluoroethylene (PTFE) IP rating: IP67 Front-to-back ratio: 8 dB Cable type: RJ-45 Weight and dimensions Product height: 276 mm Product depth: 96 mm Product weight: 1.8 kg Product width: 272 mm Operating conditions Operating temperature range: -40 - 75 °C Performance Vertical beamwidth (2.4 GHz): 25° Frequency band: 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz Vertical beamwidth: 90° Antenna range (2.4 GHz): 6 dBi Antenna gain level (max): 6 dBi Gain factor: 4 / 6 dBi Horizontal beamwidth: 90° Impedance: 50 Ω Horizontal beamwidth (2.4 GHz): 360° Packaging content Mounting kit: Yes Cables: LAN (RJ-45) Quantity: 1 Quick installation guide: Yes Logistics data Country of origin: Poland

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

1.7
