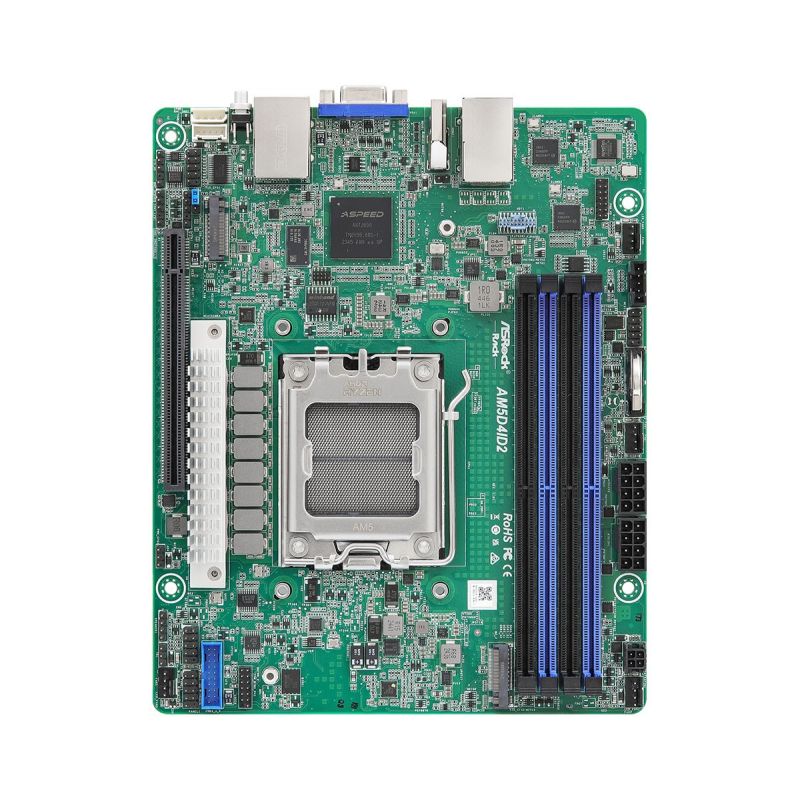

Asrock AM5D4ID2 KNOLL3 X300 Socket AM5 Mini ITX Motherboard

Apraksts

Processor Processor AMD Ryzen 7000 Series AMD EPYC 4004 AMD Ryzen 9000 Series AMD Ryzen 8000 Series Processor manufacturer: AMD Processor socket: Socket AM5 Graphics Graphics Adapter Family: ASPEED Graphics card: AST2600 Built-in graphics card: Yes Memory ECC Compatibility: ECC or Non-ECC Number of memory socket pins: 288 Maximum memory capacity: 48 GB Supported memory clock speeds 5600 MHz 3600 MHz Number of memory slots: 4 Supported memory types: DDR5-SDRAM Memory slot type: DIMM Memory voltage: 1.1 V Characteristics Motherboard format: Mini ITX Motherboard Layout: KNOLL3 X300 Purpose: Server Chipset Board Family: AMD Weight and dimensions Product width: 170.1 mm Product depth: 208.3 mm Working conditions Relative humidity range: 20 - 90% Temperature range (storage): -40 - 70 °C Temperature range (operation): 10 - 35 °C Internal I/O USB 3.2 Gen 1 (3.1 Gen 1) ports: 2 Number of COM sockets: 1 TPM Connector: Yes Network Ethernet interface type: Gigabit Ethernet Wi-Fi: No LAN Controller: Intel I210 Wired LAN: Yes BIOS BIOS memory size: 256 Mbit BIOS Type: UEFI AMI ACPI version: 5.1 System BIOS (SMBIOS) version: 2.3 Rear Panel I/O Ports Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2 IPMI LAN Port (RJ-45): Yes Number of VGA (D-Sub) ports: 1 Number of HDMI ports: 1 Number of Ethernet LAN ports (RJ-45): 2 Expansion slots PCI Express x16 (Gen 5.x) slots: 1

Category

Computers and accessories

Department

Electronics

Weight (kg)

1.87

Product Type

Motherboards
