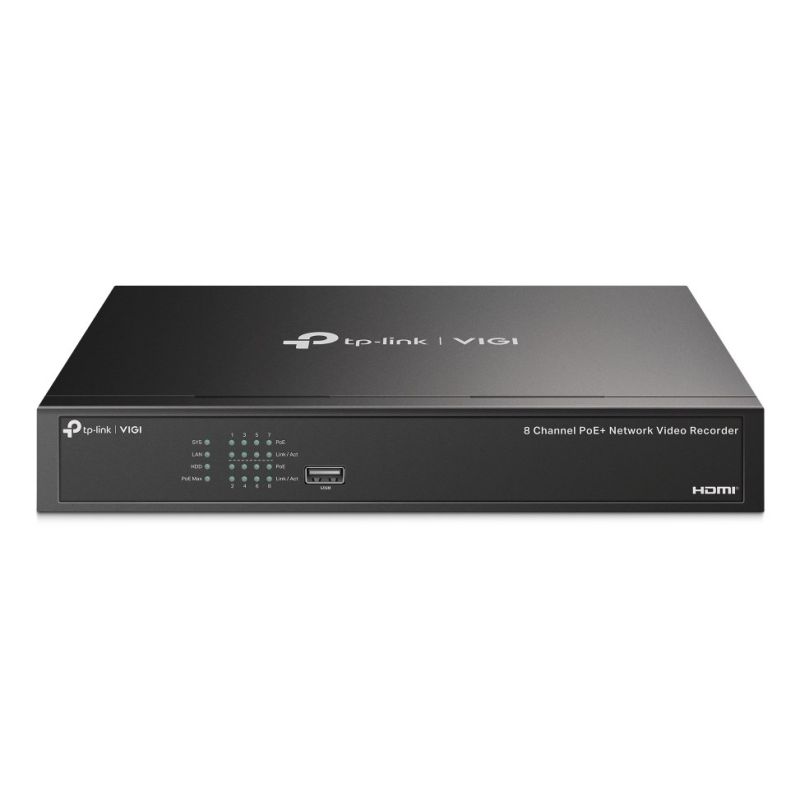

TP-LINK VIGI NVR1008H-8P network recorder, 8 PoE+ channels

Apraksts

Characteristics Rack mounting options: Yes LED diodes LAN PoE HDD System Product color: Black Power Operating voltage: 53.5 V Output current: 1.31 A Power consumption (max): 12.94 W Total Power over Ethernet (PoE) budget: 53 W Weight and dimensions Product width: 294 mm Product depth: 180 mm Packaging type: Box Product height: 44 mm Working conditions Temperature range (operation): -10 - 55 °C Efficiency Supported video file formats H.264 H.264+ H.265 H.265+ Maximum resolution: 3840 x 2160 px Output bandwidth: 60 Mbit/s Sound system: 2-way Video recording modes 1080p 720p Video channel inputs: 8 channels Input bandwidth: 80 Mbit/s Number of simultaneous playback channels: 8 channels. Package contents AC adapter: Yes Quick Installation Guide: Yes Ports and interfaces VGA (D-Sub) Outputs: 1 Number of Fast Ethernet (PoE) ports: 8 Number of USB 2.0 ports: 2 RCA audio outputs: 1 Data transfer speed via Ethernet LAN 100 Mbps 10 Mbps RCA audio connectors: 1 Number of HDMI ports: 1 Communication standards IEEE 802.3at IEEE 802.3af Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP Number of Ethernet LAN ports (RJ-45): 1 PoE Support: Yes DC output socket: Yes Hard drive HDD capacity: 0 GB Number of supported HDDs: 1 Maximum storage capacity: 10 TB HDD interface: SATA

Category

Industry

Department

Company and Office

Weight (kg)

2.15

Product Type

Video recorders (NVR/DVR)
