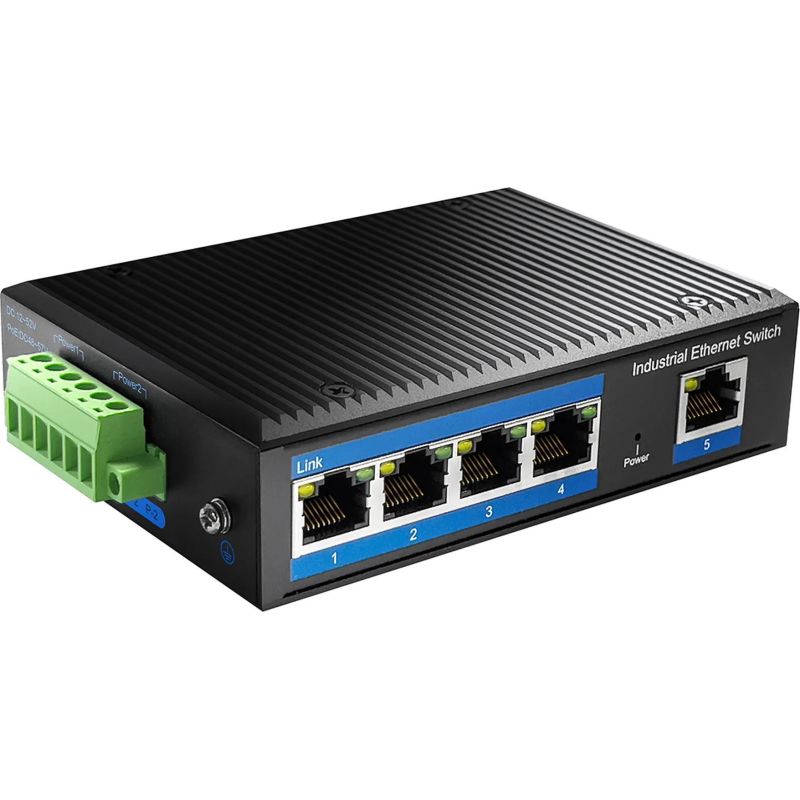

Switch CUDY IF1005P

Apraksts

Design Product color: Black Housing material: Aluminum DIN rail mounting: Yes Stackable: No Rack mounting options: No LED diodes Link Action PoE Status Power supply IP protection class: IP40 Power Power consumption (max): 120 W Power Protection Features: Short Circuit Power source: DC/PoE DC input voltage: 44 - 57 V Protection against sudden voltage increases 15 kV Yes Weight and dimensions Product width: 86 mm Product depth: 33.5 mm Product weight: 341.5 g Product height: 118 mm Working conditions Temperature range (operation): -40 - 75 °C Relative humidity range: 5 - 95% Permissible relative humidity: 5 - 95% Temperature range (storage): -40 - 85 °C Network Traffic Growth Control: Yes Communication standards IEEE 802.3af IEEE 802.3x IEEE 802.3i IEEE 802.3at IEEE 802.3u VLAN support: Yes Copper Ethernet cabling technology 10BASE-T 100BASE-TX 10G Support: No Supported cable types Cat5 Cat3 Cat5e Flow Control Support: Yes Packaging data Package depth: 137 mm Package height: 65 mm Weight with packaging: 473 g Package width: 182 mm Package contents User Guide: Yes Ports and interfaces Basic Ethernet switching RJ-45 ports type: Fast Ethernet (10/100) Basic RJ-45 Switching Number of Ethernet Ports: 4 Power connector: Terminal block (4-pin) Number of Fast Ethernet ports (copper): 4 Number of connection ports: 1 Other functions Terminal Port Blocking: Yes Logistics data Width of the collection box (external): 388 mm Net weight in bulk packaging: 9.5 kg Products in the main (outer) box: 20 pcs. Main (outer) housing gross weight: 10.1 kg Height of the standard (outer) box: 298 mm Main (outer) case length: 348 mm Data transfer Forwarding speed: 0.744 Mpps Address table size: 2048 entries Routing/switching capacity: 1000 Gbit/s Jumbo Frame Compatible: Yes Jumbo Frames Expansion: 2000 Packet buffer memory: 0.768 MB Power over Ethernet (PoE) Power over Ethernet (PoE) power per port: 30 W Power over Ethernet Plus (PoE +) ports: 4 PoE Support: Yes

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

1

Product Type

Network switches
