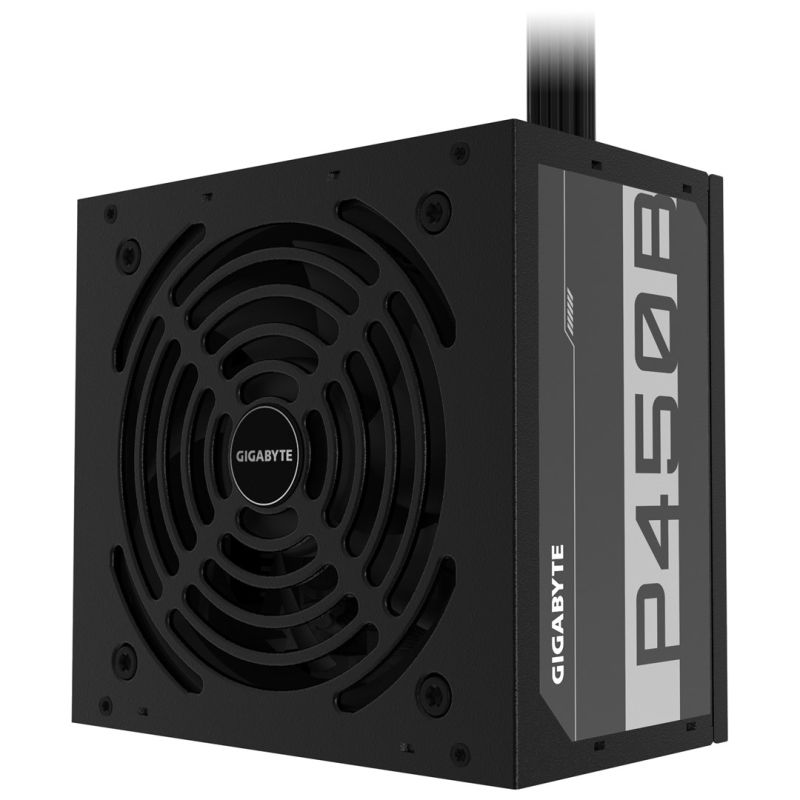

Gigabyte P450B 450W 80+ Bronze Power Supply

Apraksts

Design Cooling type: Active Product color: Black Built-in switch: Yes Number of fans: 1 fan Fan Location: Top Fan bowl diameter: 12 cm Power AC input voltage: 100 - 240 V Maximum output current (+3.3V): 18 A AC input frequency: 50 - 60 Hz Power factor: 0.9 Total power (+5 Vsb): 15 W Total power (+3.3V): 103 W Maximum output current (+5 Vsb): 3 A Power protection features Short circuit Overheating protection Low voltage protection Protection against overvoltage Overcurrent Overload protection Total power: 450 W PFC (Power Factor Correction) Type: Active Maximum output current (+12V): 36A Maximum output current (-12V): 0.3A Hold time: 16 ms Input current: 8 - 4 A Efficiency: 85% Maximum output current (+5V): 15A Total power (+12V): 432 W Total power (+5V): 103 W Total power (-12V): 3.6 W Weight and dimensions Product depth: 140 mm Product width: 150 mm Product height: 86 mm Efficiency Intended use: PC Bearing technology: HDB ATX version: 2.31 Power supply type (PSU): ATX 80 PLUS Certificate: 80 PLUS Bronze MTBF (Mean Time Between Failures): 100000 h Ports and interfaces Number of SATA power connectors: 6 Floppy disk drive slot: Yes Motherboard power connector: 20+4 pin ATX CPU power supply connector (4+4 pin): Yes ATX power supply connector (20+4 pin): Yes Peripheral (Molex) Power Connectors (4-pin): 3 Floppy drive connector: 1 PCI Express power connectors (6+2 pin): 2 Peripheral (Molex) Power cable length: 500 mm PCI Express slot: Yes CPU power cable length: 60 cm PCI Express power cable length: 55 cm SATA power cable length: 500 mm Wiring Type: Non-Modular Motherboard cable length: 55 cm Logistics data Harmonized System (HS) code: 84733020 Safety warning Warnings Do not open the housing – risk of electric shock. Avoid contact of the product with water or other liquids. The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.

Category

Computers and accessories

Department

Electronics

Weight (kg)

1.95

Product Type

Power supplies
