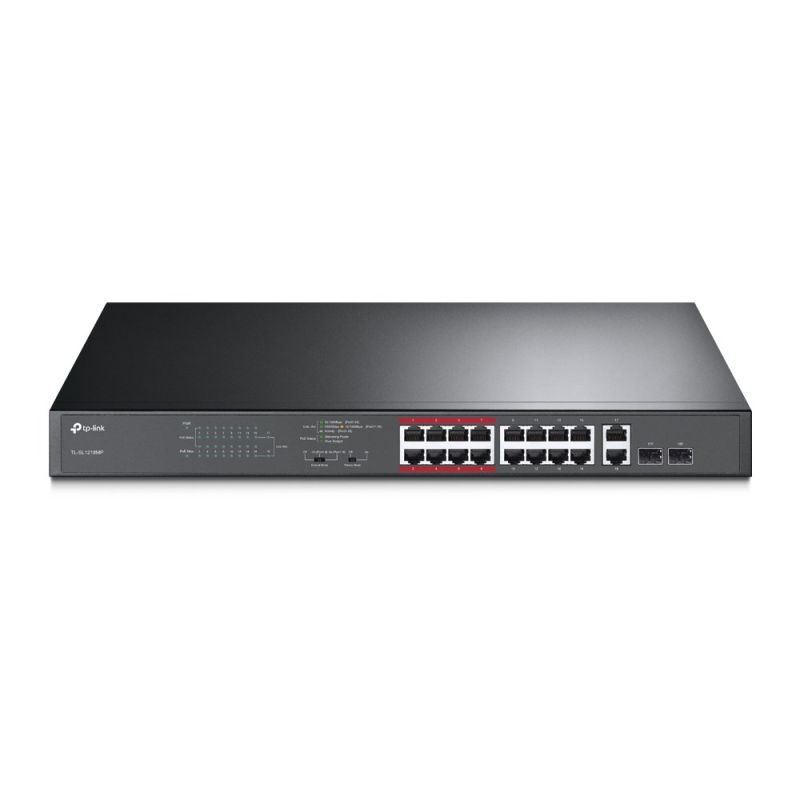

TP-LINK TL-SL1218MP PoE Switch (16x 10/100Mbps, 2x 10/100/1000Mbps), Unmanaged PoE switch, 16 10/100 Mbps ports, 2 Gigabit ports, High total PoE power supply - up to 30 W on each PoE port and 250 W for all PoE ports*.

Apraksts

Design Rack mounting options: Yes Stackable: No Number of fans: 2 fans Product color: Black LED diodes PoE LAN Status Power Power consumption: 18.7 W Power supply included: Yes Power source: AC AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Weight and dimensions Product depth: 180 mm Product height: 44 mm Product width: 440 mm Security MAC address filtering: Yes Management features Switch Type: Unmanaged Working conditions Heat emission: 741.15 BTU/h Relative humidity range: 10 - 90% Temperature range (storage): -40 - 70 °C Permissible relative humidity: 5 - 90% Temperature range (operation): 0 - 40 °C Network Copper Ethernet cabling technology 10BASE-T 100BASE-TX 1000BASE-T Auto MDI/MDI-X: Yes Flow Control Support: Yes 10G Support: No Communication standards IEEE 802.3af IEEE 802.3at Package contents User Manual: Yes User Guide: Yes Cables: LAN (RJ-45) Quick Start Guide: Yes Ports and interfaces Number of SFP Combo Ports: 2 Basic RJ-45 Switching Number of Ethernet Ports: 16 Basic Ethernet switching RJ-45 ports type: Fast Ethernet (10/100) Number of Gigabit Ethernet ports: 2 Number of Fast Ethernet ports (copper): 16 Logistics data Harmonized System (HS) code: 85176990 Data transfer Store-and-forward: Yes Jumbo Frame Compatible: Yes Routing/Switching Throughput: 7.2 Gbps Address table size: 8000 entries Packet buffer memory: 4.1 MB Jumbo Frames Expansion: 10000 Power over Ethernet (PoE) Total Power over Ethernet (PoE) budget: 192 W Power over Ethernet Plus (PoE +) ports: 16 PoE Support: Yes Safety warning Warnings Ensure the device is adequately ventilated during operation. This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations. Do not open the casing or attempt to repair it yourself.

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

3

Product Type

Network switches
