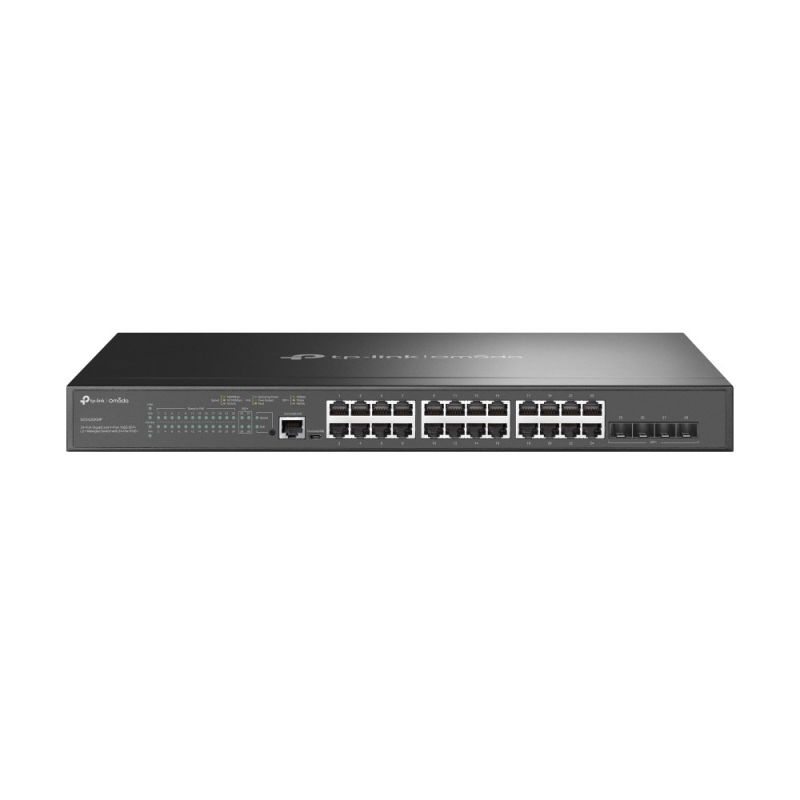

TP-Link Omada SG3428XMP Managed Network Switch L2+ Gigabit Ethernet (10/100/1000) PoE Support 1U Black

Apraksts

Design Rack mounting options: Yes Number of fans: 2 fans LEDs: Yes Product color: Black Layout: 1U Power Power consumption (max): 486.2 W Power source: AC Power supply included: Yes AC input frequency: 50/60 Hz AC input voltage: 100 - 240 V Weight and dimensions Product height: 44 mm Product depth: 330 mm Product width: 440 mm Security Access Control List (ACL): Yes DHCP functions DHCP client DHCP snooping DHCPv6 client DHCP relay DHCPv6 snooping DHCP server Loop protection: Yes IGMP snooping: Yes IP-MAC-Port Binding: Yes BPDU Filtering/Protection: Yes Supports SSH/SSL: Yes Management features Cloud-managed: Yes Switch Layer: L2+ System Event Report: Yes Switch type: Managed MIB Support: Yes Website management: Yes Quality of Service (QoS) Support: Yes Working conditions Heat emission: 1658.78 BTU/h Permissible relative humidity: 5 - 90% Temperature range (operation): 0 - 45 °C Temperature range (storage): -40 - 70 °C Relative humidity range: 10 - 90% Network Connection Aggregator: Yes Number of VLANs: 4000 Flow Control Support: Yes VLAN support: Yes Virtual LAN Features MAC address-based VLAN Tagged VLAN Port-based VLAN Private VLAN Voice VLAN Protocol-based VLAN Active connection search: Yes Frequency Limit: Yes Port Mirroring: Yes 10G Support: Yes Head-of-line (HOL) blocking: Yes Traffic Growth Control: Yes Spanning Tree Protocol: Yes Rule-Based Routing: Yes Communication standards IEEE 802.1s IEEE 802.1w IEEE 802.11d Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s Package contents Cables: LAN (RJ-45) Quick Start Guide: Yes Protocols Management protocols: SNMPv1/v2c/v3, SNTP Ports and interfaces Number of Gigabit Ethernet ports: 24 Console port: RJ-45/micro-USB Number of SFP+ Module slots: 4 Power Connector: AC Input Socket Basic RJ-45 Switching Number of Ethernet Ports: 24 Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000) Data transfer Packet buffer memory: 12 MB Number of static routes: 48 Address table size: 16000 entries Routing/switching capacity: 128 Gbit/s Jumbo Frames Expansion: 9000 Forwarding speed: 95.23 Mpps Jumbo Frame Compatible: Yes Power over Ethernet (PoE) Total Power over Ethernet (PoE) budget: 384 W Power over Ethernet Plus (PoE +) ports: 24 PoE Support: Yes Multicast functions Multicast Support: Yes

Colour

Black

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

6.9

Product Type

Network switches
