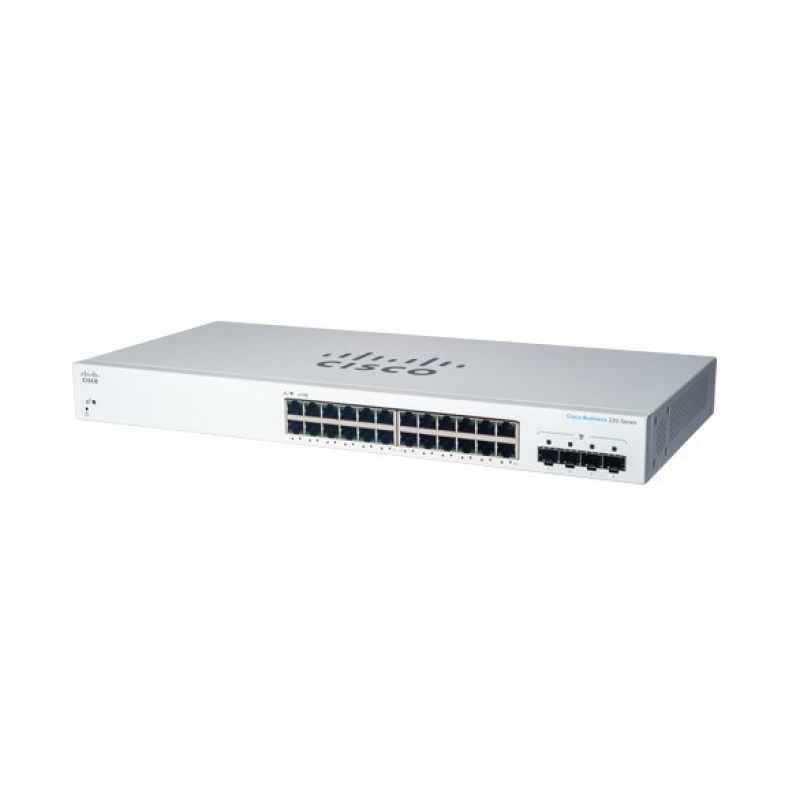

Cisco CBS220-24T-4G-EU Switch

Apraksts

Design Rack mounting: Yes Product colour: White Form factor: 1U Reset button: Yes LED indicators: Yes Power AC input frequency: 50–60 Hz AC input voltage: 100–240 V Weight and dimensions Product weight: 2.75 kg Product height: 44 mm Product width: 440 mm Product depth: 203 mm Security Authentication type: IEEE 802.1x, RADIUS Queue scheduling algorithms: Weighted Round Robin (WRR) Loop protection: Yes IGMP snooping: Yes DHCP functions: DHCP client Access Control List (ACL): Yes SSH/SSL support: Yes BPDU filtering/protection: Yes Encryption/security SNMP SNMPv2 SNMPv3 MAC address filtering: Yes Management features Switch layer: L2 Switch type: Managed System event log: Yes Web-based management: Yes Quality of Service (QoS) support: Yes Operating conditions Heat dissipation: 61.42 BTU/h Permitted relative humidity: 10–90% Relative humidity range: 10–90% Operating temperature range: 0–50 °C Storage temperature range: -20–70 °C Network 10G support: Yes Link aggregation: Yes IP forwarding: Yes Flow control support: Yes Spanning Tree Protocol: Yes Number of VLANs: 256 Broadcast storm control: Yes Head-of-line (HOL) blocking: Yes Port mirroring: Yes Communication standards IEEE 802.1x IEEE 802.3at IEEE 802.1D IEEE 802.3z IEEE 802.3u IEEE 802.1w IEEE 802.3ad IEEE 802.3 IEEE 802.1s IEEE 802.3ab IEEE 802.3af IEEE 802.3x Ethernet LAN data transfer rate: 10,100,1000 Mbit/s Automatic MDI/MDI-X: Yes VLAN support: Yes Performance Device software updates: Yes Internal memory capacity: 256 MB Built-in processor: Yes Flash memory size: 64 MB Protocols Management protocols: SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP Ports and interfaces Number of SFP module slots: 4 Basic Ethernet RJ-45 switching ports, type: Gigabit Ethernet (10/100/1000) Number of basic RJ-45 Ethernet switching ports: 24 Logistics data Harmonized System (HS) code: 85176990 Data transmission Jumbo Frames extension: 9216 Forwarding rate: 41.66 Mpps Address table size: 8192 entries Number of queues: 8 Packet buffer memory: 4.1 MB Jumbo Frames support: Yes Routing/switching capacity: 56 Gbit/s Power over Ethernet (PoE) PoE support: No Multicast features MAC address table (multicast): 8192 entries Multicast support: Yes Safety warning Warnings Do not open the enclosure or attempt to repair the device yourself. The product must not be disposed of with regular household waste. Take the used electronic equipment to a disposal point in accordance with local regulations. Make sure that the device is adequately ventilated during operation.

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

4.39

Product Type

Network switches
