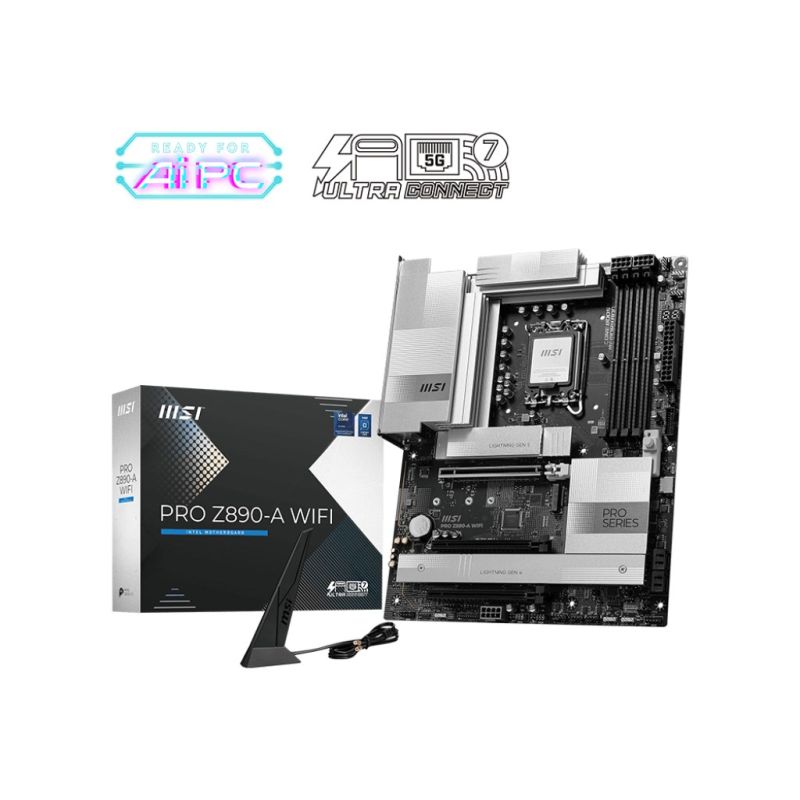

MSI PRO Z890-A WIFI Motherboard

Apraksts

Processor Processor manufacturer: Intel Supported CPU sockets: LGA 1851 Maximum internal memory supported by the processor: 256 GB Processor: Intel Core Ultra (Series 2) Processor socket: LGA 1851 (Socket V1) Graphics Built-in graphics card: No Memory Supported memory clock speeds 9200 6400 MHz Maximum memory capacity: 256 GB Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slot type: DIMM Memory Channel Support: Dual Channel ECC Compatibility: Non-ECC Supported memory clock speed (max): 9200 MHz Characteristics Audio output channels: 7.1 ch. Motherboard Layout: Intel Z890 Chipset Board Family: Intel Audio chip: Realtek ALC897 Motherboard format: ATX Product color: Black Supported Windows operating systems: Windows 11 x64 Weight and dimensions Product width: 243.8 mm Product depth: 304.8 mm Internal I/O Number of USB 2.0 ports: 4 Number of SATA III connectors: 4 USB 3.2 Gen 1 (3.1 Gen 1) ports: 2 Number of EPS power connectors (8-pin): 1 USB 3.2 Gen 2 (3.1 Gen 2) ports: 1 TPM Connector: Yes Total number of SATA connectors: 4 ATX power socket (24-pin): Yes EPS power supply connector (8-pin): Yes CPU fan connector: Yes Network Bluetooth: Yes Basic Wi-Fi standard: Wi-Fi 7 (802.11be) Wi-Fi: Yes Wi-Fi standards Wi-Fi 6 (802.11ax) Wi-Fi 7 (802.11be) Wi-Fi 4 (802.11n) Wi-Fi 6E (802.11ax) 802.11b 802.11g 802.11a Wi-Fi 5 (802.11ac) Wired LAN: Yes Ethernet interface type: 5 Gigabit Ethernet Bluetooth version: 5.4 Memory drivers RAID Service: Yes Supported hard drive interfaces: M.2, SATA III Supported drive types: HDD & SSD Number of supported HDDs: 8 RAID levels 10 1 5 0 Number of supported storage drive sizes: 4 Rear Panel I/O Ports DisplayPort version: 1.4 Number of Ethernet LAN ports (RJ-45): 1 DisplayPort Quantity: 1 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1 Number of HDMI ports: 1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4 HDMI version: 2.1 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 3 Number of Thunderbolt ports: 1 Expansion slots Number of M.2 (M) slots: 4 PCI Express x16 (Gen 5.x) slots: 1 PCI Express x4 slots (Gen 4.x): 2 Safety warning Warnings If you experience any problems with installation, please contact a qualified service center. When disposing of this product, please follow local regulations for electronics recycling. Do not open or modify the motherboard to prevent damage.

Category

Computers and accessories

Department

Electronics

Weight (kg)

2

Product Type

Motherboards
