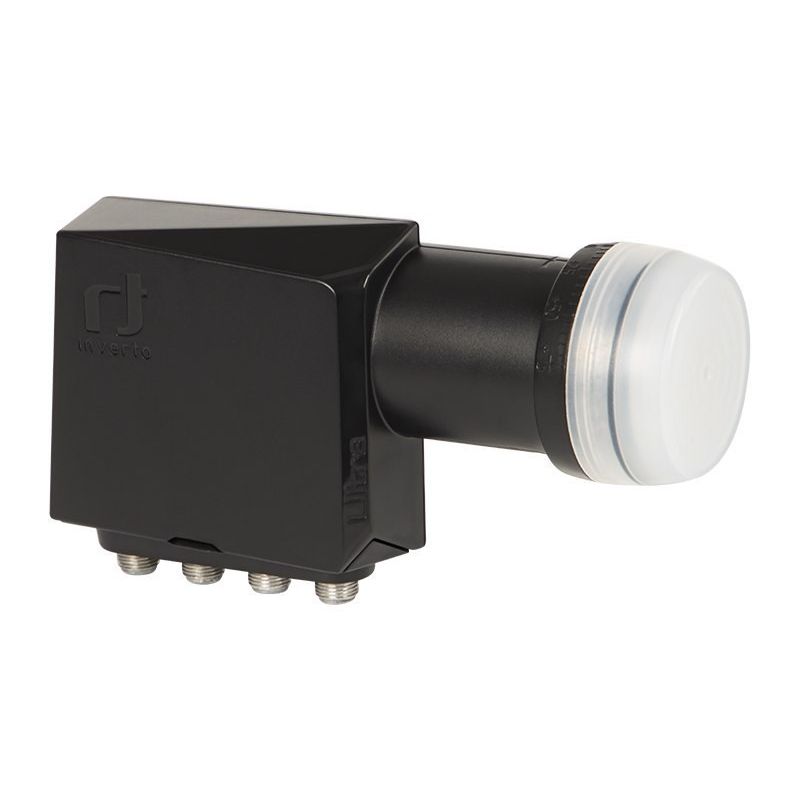

Satellite converter QUAD Inverto ULTRA IDLT 4 outputs
Ražotāja kods: 77-176#
Apraksts
Characteristics Product color: Black Housing material: Plastic Power Supply voltage: 11 - 20 V Maximum current consumption: 200 mA Weight and dimensions Product weight: 344 g Product depth: 142 mm Product diameter: 49 mm Product height: 78 mm Working conditions Temperature range (operation): -30 - 60 °C Efficiency Upper band (output): 1100 - 2150 MHz Upper Oscillator: 10.6 GHz Low Band (Input): 10.7 ~ 11.7 GHz VSWR: 2.0:1 Lower Oscillator: 9.75 GHz Low Band (Output): 950 ~ 1950 MHz Upper band (input): 11.7 - 12.75 GHz Noise level (max): 0.7 dB Noise level: 0.2 dB Packaging data Number of pieces: 1 Packaging type: Cardboard Safety warning Warnings The product must be used in accordance with the operating instructions to avoid damage. The product may generate heat, avoid contact with flammable materials. The product may contain small parts that may be dangerous to children.
- Category
- Computers and accessories
- Department
- Electronics
- Weight (kg)
- 1
