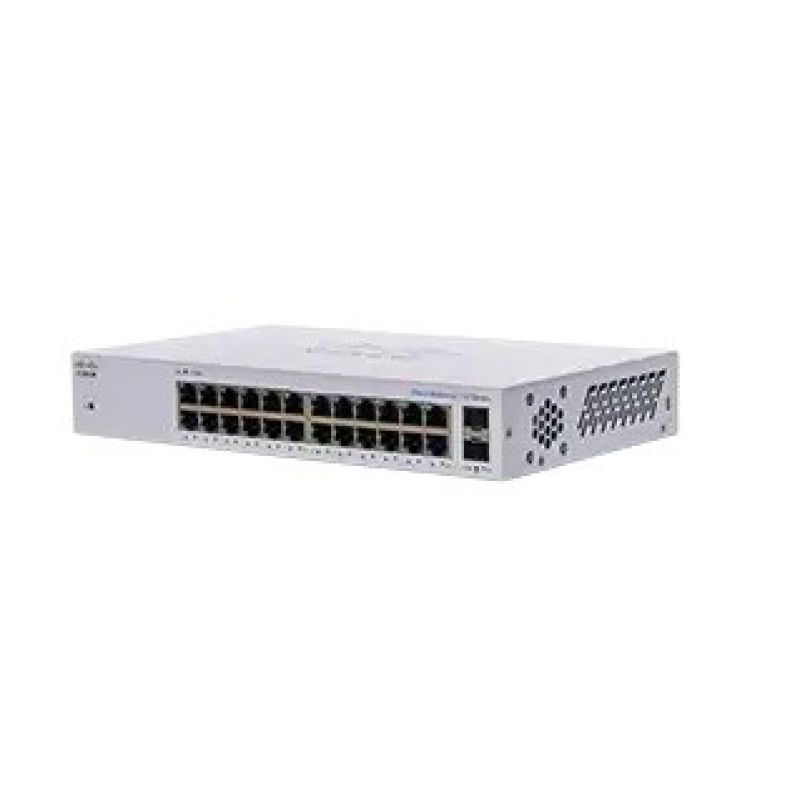

Cisco CBS110-24T-EU Switch

Apraksts

Design Product colour: Grey Form factor: 1U Rack mounting: Yes LED indicators: Yes Power AC input frequency: 50–60 Hz Redundant power supply (RPS) support: No Number of power supply units: 1 AC input voltage: 110–240 V Power supply included: Yes Weight and dimensions Product height: 44 mm Product width: 279 mm Product weight: 1.56 kg Product depth: 170 mm Protection Queue scheduling algorithms: Weighted Round Robin (WRR) Management features Switch type: Unmanaged Quality of Service (QoS) support: Yes Switching layer: L2 Operating conditions Permitted relative humidity: 5–90% Heat dissipation: 55.75 BTU/h Temperature range (storage): -20–70 °C Temperature range (operation): 0–40 °C Relative humidity range: 10–90% Network Ethernet LAN data transfer rate: 10, 100, 1000 Mbit/s Half duplex: Yes 10G support: No Full duplex: Yes Auto MDI/MDI-X: Yes Flow control support: Yes Copper Ethernet cabling technology 100BASE-TX 10BASE-T 1000BASE-T Communication standards IEEE 802.3z IEEE 802.3u IEEE 802.3az IEEE 802.3ab IEEE 802.3x IEEE 802.3 IEEE 802.1p Head-of-line blocking (HOL): Yes Performance Processor frequency: 400 MHz MTBF (Mean Time Between Failures): 524296 h Flash memory size: 8 MB Internal memory capacity: 64 MB Built-in processor: Yes Packaging content Quick start guide: Yes Hook mounting kit: Yes Certificates Compliance certificates: CE Ports and interfaces Number of Combo SFP ports: 2 Number of RJ-45 Ethernet ports for basic switching: 24 Number of Gigabit Ethernet ports: 24 RJ-45 Ethernet port type for basic switching: Gigabit Ethernet (10/100/1000) Logistics data Harmonized System (HS) code: 85176990 Data transmission Number of queues: 4 Jumbo Frames extension: 9216 Address table size: 8192 entries Forwarding rate: 35.7 Mpps Jumbo Frames support: Yes Routing/switching capacity: 48 Gbit/s Power over Ethernet (PoE) PoE support: No Safety warning Warnings Do not open the enclosure or attempt to repair the device yourself. This product must not be disposed of with regular household waste. Take used electronic equipment to a disposal point in accordance with local regulations. Make sure the device is adequately ventilated during operation. Sustainability Compliance with sustainability principles: Yes

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

2.97

Product Type

Network switches
