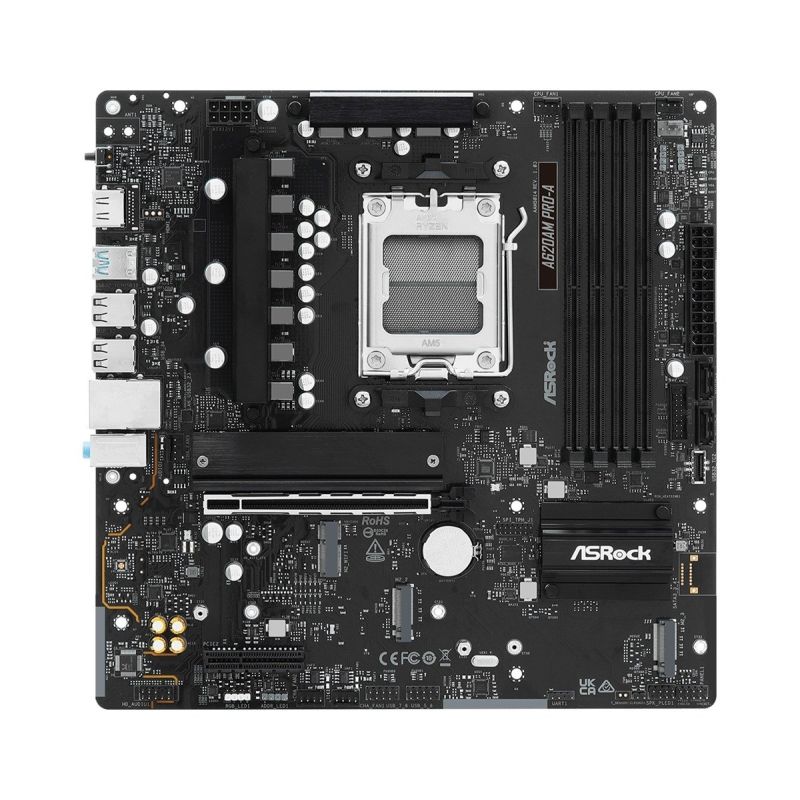

Asrock A620AM PRO-A motherboard

Apraksts

Processor Processor manufacturer: AMD Processor AMD Ryzen 7000 Series AMD Ryzen 9000 Series AMD Ryzen™ 8000 Series Processor socket: Socket AM5 Memory Memory Channel Support: Dual Channel Maximum memory capacity: 256 GB Number of memory slots: 4 Supported memory types: DDR5 DIMM Memory slot type: DIMM Characteristics Chipset Board Family: AMD Motherboard format: Micro ATX Motherboard Layout: AMD A620 Audio output channels: 7.1 ch. Supported Windows operating systems Windows 10 Windows 11 Weight and dimensions Product width: 244 mm Product depth: 244 mm Internal I/O CPU fan connector: Yes Number of USB 2.0 ports: 2 TPM Connector: Yes Fan connector: Yes Number of SATA III connectors: 2 ATX power socket (24-pin): Yes USB 3.2 Gen 1 (3.1 Gen 1) ports: 1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1 RGB LED: Yes Network Bluetooth: No Wi-Fi: No Ethernet interface type: Gigabit Ethernet Wired LAN: Yes BIOS BIOS Type: UEFI AMI Memory drivers RAID Service: Yes Supported hard drive interfaces: M.2, SATA Supported drive types: HDD & SSD Number of supported HDDs: 2 Rear Panel I/O Ports Number of Ethernet LAN ports (RJ-45): 1 Number of HDMI ports: 1 Number of USB 2.0 ports: 4 USB 3.2 Gen 1 (3.1 Gen 1) ports: 3 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1 Expansion slots Number of M.2 (M) slots: 3 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (E) slots: 1 PCI Express x4 slots (Gen 3.x): 1 Safety warning Warnings Avoid contact with liquids to prevent electronic damage. Dispose of in accordance with local regulations for electronic waste. Do not disassemble to avoid damage to internal components and voiding the warranty.

Category

Computers and accessories

Department

Electronics

Weight (kg)

1.1

Product Type

Motherboards
