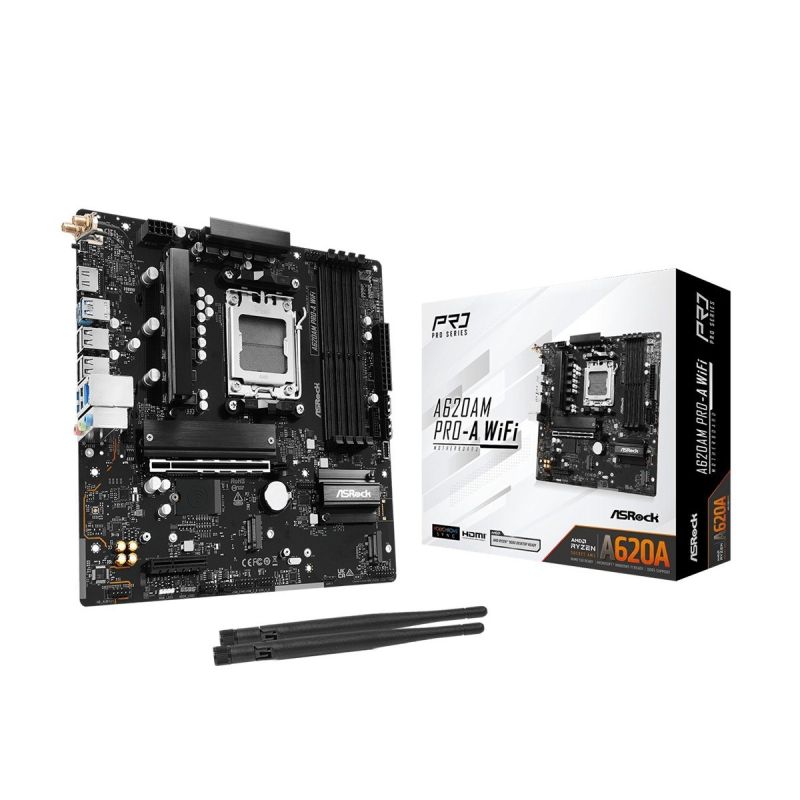

ASROCK A620AM PRO-A WIFI Motherboard

Apraksts

Technical details Certificates of conformity Federal Communications Commission (FCC) CE Processor Processor manufacturer: AMD Processor AMD Ryzen 9000 Series AMD Ryzen 8000 Series AMD Ryzen 7000 Series Processor socket: Socket AM5 Graphics Built-in graphics card: Yes Graphics card: AMD RDNA 2 HDCP: Yes Maximum resolution: 3840 x 2160 px Graphics Adapter Family: AMD High Dynamic Range (HDR) Support: Yes HDCP version: 2.3 Memory Supported memory clock speeds: 8000 Memory Channel Support: Dual Channel Maximum memory capacity: 256 GB Unbuffered memory: Yes Memory slot type: DIMM Number of memory slots: 4 Supported memory types: DDR5-SDRAM ECC Compatibility: ECC or Non-ECC Characteristics Motherboard format: Micro ATX Chipset Board Family: AMD Audio output channels: 7.1 ch. Motherboard Layout: AMD A620A Audio chip: Realtek ALC897 Product color: Black Supported Windows operating systems Windows 11 x64 Windows 10 x64 Weight and dimensions Product depth: 244 mm Product width: 244 mm Internal I/O Number of USB 2.0 ports: 2 CPU fan connector: Yes ATX power socket (24-pin): Yes Number of SATA III connectors: 2 Number of case fan connectors: 3 TPM Connector: Yes Front panel audio connector: Yes USB 3.2 Gen 1 (3.1 Gen 1) ports: 1 Number of RGB LED connectors: 1 RGB LED: Yes Number of CPU fan connectors: 2 12V power connector: Yes Number of water pump connections: 1 Network Basic Wi-Fi standard: Wi-Fi 6E (802.11axe) LAN controller: Dragon RTL8125BG Bluetooth: Yes Antenna type: 2 x 2 Wi-Fi standards 802.11b 802.11ax 802.11ac 802.11 axe 802.11g 802.11a 802.11n Wi-Fi: Yes Ethernet network interface type Fast Ethernet Gigabit Ethernet 2.5 Gigabit Ethernet Bluetooth version: 5.2 Wired LAN: Yes BIOS BIOS Type: UEFI AMI BIOS Flashback Button: Yes Package contents Cables: SATA Memory drivers Supported hard drive interfaces: M.2, NVMe, SATA III Supported drive types: HDD & SSD RAID Service: Yes RAID levels 0 10 1 Number of supported HDDs: 2 Rear Panel I/O Ports Number of HDMI ports: 1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3 Number of Ethernet LAN ports (RJ-45): 1 Number of antennas: 2 HDMI version: 2.1 Number of USB 2.0 ports: 4 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1 Expansion slots Number of M.2 (M) slots: 3 PCI Express x16 (Gen 4.x) slots: 1 Special features of the processor Intel® Extreme Memory Profile (XMP): Yes AMD Extended Profiles for Overclocking (EXPO): Yes

Category

Computers and accessories

Department

Electronics

Weight (kg)

1.2

Product Type

Motherboards
