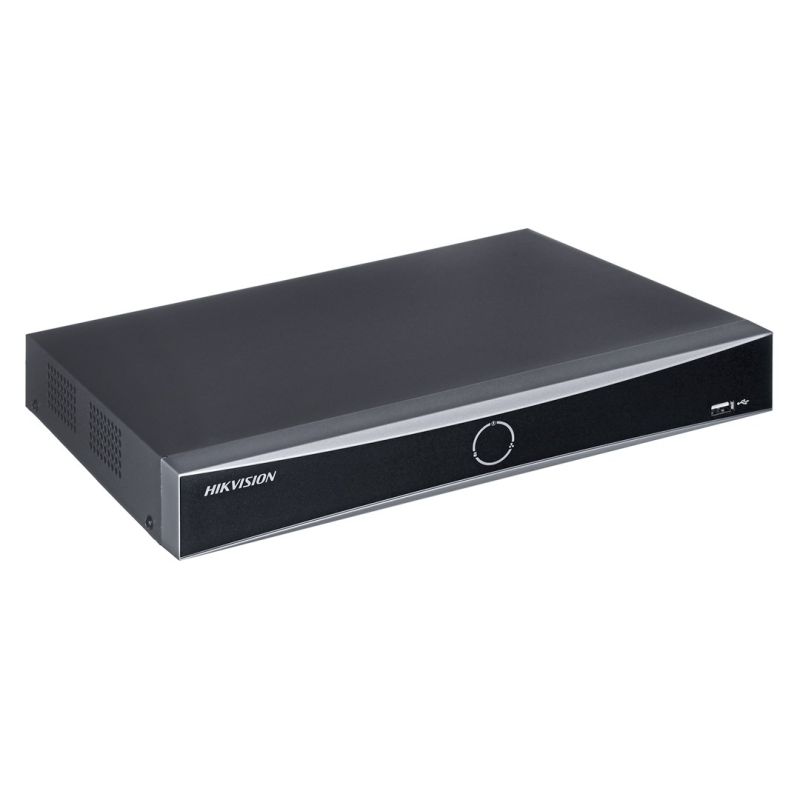

HIKVISION DS-7604NXI-K1/4P(D) IP Recorder

Apraksts

Technical details Environmental certificate (sustainable development) CE Federal Communications Commission (FCC) Characteristics Rack capacity: 1U Rack mounting options: Yes Product color: Black Power Operating voltage: 48 V Power consumption: 10 W Output current: 1.35 A Total Power over Ethernet (PoE) budget: 50 W Weight and dimensions Product height: 48 mm Product width: 320 mm Product depth: 240 mm Product weight: 1 kg Working conditions Relative humidity range: 10 - 90% Temperature range (operation): -10 - 55 °C Efficiency Maximum resolution: 3840 x 2160 px Supported audio formats G.711 μ-law G.722 AAC G.726 G.711 A-law Face detection function: Yes Output bandwidth: 80 Mbit/s Supported video file formats H.264+ H.265 H.265+ H.264 Maximum frame rate: 30 fps Input bandwidth: 40 Mbit/s Video channel inputs: 4 channels Number of simultaneous playback channels: 4 channels Wireless LAN Features Wi-Fi: No Data carrier Number of supported HDDs: 1 Maximum storage capacity: 16 TB HDD interface: SATA Ports and interfaces Data transfer speed via Ethernet LAN 100 Mbps 1000 Mbps 10 Mbps Number of Fast Ethernet (PoE) ports: 4 Number of USB 2.0 ports: 2 Number of HDMI ports: 1 Number of Ethernet LAN ports (RJ-45): 5 Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS RCA audio connectors: 1 Number of internal SATA ports: 1 VGA (D-Sub) Outputs: 1 RCA audio outputs: 1 PoE Support: Yes HDMI output: Yes Communication standards IEEE 802.3af IEEE 802.3at Safety warning Warnings The device should be installed by a qualified specialist. Do not expose the device to moisture or extreme temperatures. The product must be disposed of properly in accordance with local regulations for electronics disposal.

Category

Industry

Department

Company and Office

Weight (kg)

2.02

Product Type

Video recorders (NVR/DVR)
