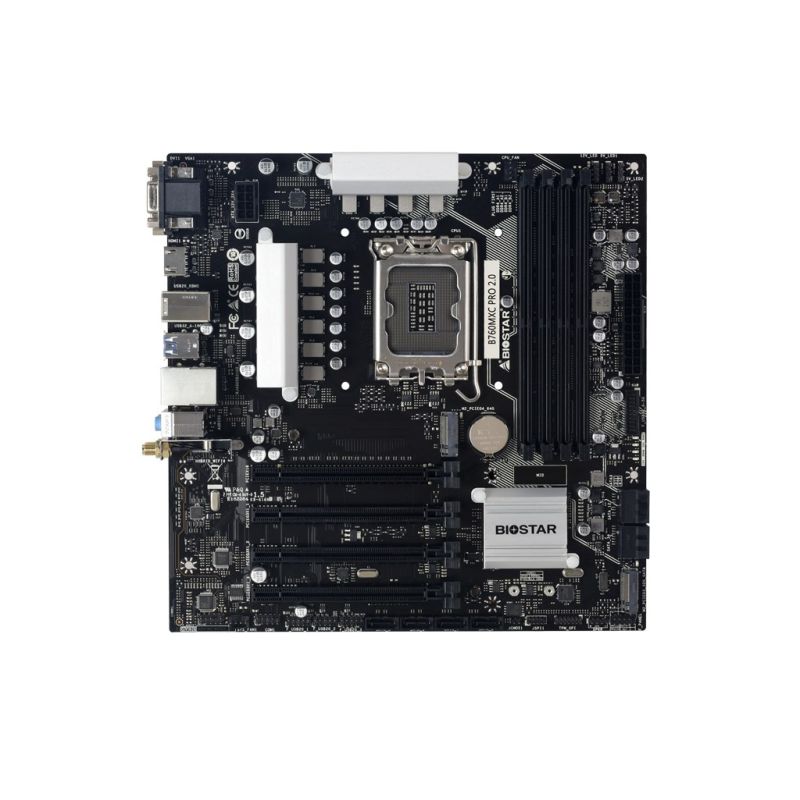

BIOSTAR B760MXC PRO 2.0 motherboard

Apraksts

Processor Processor manufacturer: Intel Processor socket: LGA 1700 Memory Memory slot type: DIMM Supported memory types: DDR4-SDRAM Number of memory slots: 4 Supported memory clock speeds 2133 MHz 1866 MHz 3600 MHz 2400 MHz 2800 MHz 3800 MHz 2933 MHz 3200 MHz 2666 MHz 3866 MHz 4600 MHz 3733 MHz Maximum memory capacity: 128 GB Memory Channel Support: Dual Channel Characteristics Power supply type: ATX Motherboard Layout: Intel B760 Windows operating systems supported: Yes Motherboard format: Micro ATX Audio output channels: 7.1 ch. Cooling type: Passive Audio chip: Realtek ALC897 Chipset Board Family: Intel Weight and dimensions Product depth: 244 mm Product width: 244 mm Internal I/O EPS power supply connector (8-pin): Yes Number of COM sockets: 1 Front panel connector: Yes ATX power socket (24-pin): Yes Number of USB 2.0 ports: 3 Number of SATA III connectors: 8 USB 3.2 Gen 1 (3.1 Gen 1) ports: 1 Front panel audio connector: Yes TPM Connector: Yes Number of case fan connectors: 1 Network LAN Controller: Intel I219V Wi-Fi: Yes Ethernet interface type: Gigabit Ethernet Wired LAN: Yes Package contents Cables: SATA Memory drivers Supported hard drive interfaces: M.2, SATA III Supported drive types: HDD & SSD Rear Panel I/O Ports Number of audio jacks: 3 Number of HDMI ports: 1 Number of Ethernet LAN ports (RJ-45): 1 Number of USB 2.0 ports: 2 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 4 Number of VGA (D-Sub) ports: 1 Expansion slots PCI Express x16 (Gen 4.x) slots: 1 PCI Express x16 (Gen 3.x) slots: 3

Category

Computers and accessories

Department

Electronics

Weight (kg)

1.03

Product Type

Motherboards
