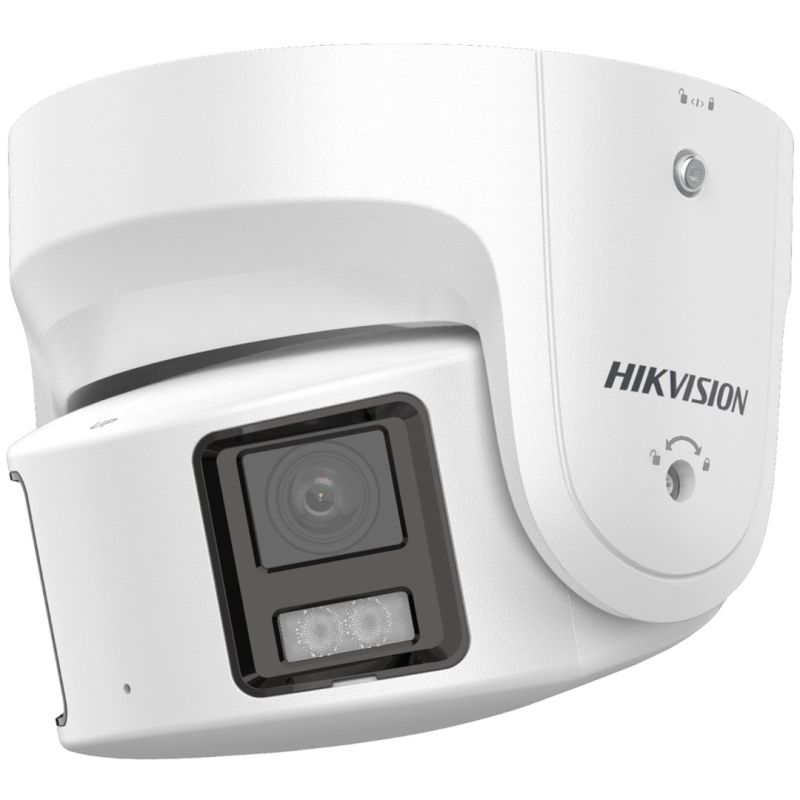

Hikvision DS-2CD2387G2P-LSU/SL (4 mm) (C) Panoramic IP Camera

Apraksts

Technical details Lens mount interface: M16 Environmental sustainability certificate RoHS CE WEEE Iris: Yes Design Housing material: Metal Design: Rotatable IP protection rating: IP67 Mounting type: Ceiling Product colour: White Power DC output (volts): 12 Power consumption (max.): 9.5 W Power supply: DC, PoE Power consumption (Power over Ethernet (PoE)): 10.5 W DC output (amps): 0.79 A Weight and dimensions Package depth: 230 mm Weight (with base): 1.11 kg Package width: 230 mm Package height: 230 mm Diameter: 15.5 cm Product height: 155.3 mm Weight including packaging: 1.9 kg Protection Alarm input channels: 1 Encryption / security: EAP-MD5 HTTS encryption: Yes Digest authentication: Yes Automatic Network Replenishment (ANR): Yes Video motion detection: Yes Heartbeat: Yes Password reset via email: Yes Password protection: Yes People and vehicle target classification: Yes Alarm output channels: 1 Anti-glare: Yes Management features Behaviour analysis: Intrusion detection, line crossing detection, region entrance detection, region exit detection Reset button: Yes Web-based management: Yes Operating conditions Operating temperature range: -30 - 60 °C Storage temperature range: -30 - 60 °C Network Ethernet network interface type: Fast Ethernet Wired LAN: Yes Client compatibility: iVMS-4200, HikCentral Pro, Hik-Connect Wi-Fi: No User access level: Administrator, Operator, User Number of users: 32 users Bluetooth: No Performance Wide Dynamic Range (WDR): Yes Supported languages German English Danish Dutch French Spanish Czech Slovak LAT Lithuanian Japanese Vietnamese HRV Norwegian Traditional Chinese Estonian Slovenian Turkish Russian Ukrainian Thai Greek Portuguese SER Finnish Hungarian Romanian Bulgarian Italian Polish Korean Swedish Model: IP security camera Number of languages: 33 Day/night mode: Yes Alarm I/O: Yes Connectivity technology: Wired Packaging content Number of cameras: 1 Audio Sampling rate: 48 kHz Supported audio formats G.722.1 PCM MP2L2 AAC-LC MP3 G.726 Signal-to-noise ratio: 52 dB Built-in microphone: Yes Built-in speakers: Yes Bit rate range: 16 - 192 Kbit/s Storage media Supported memory cards MicroSDXC MicroSD MicroSDHC Built-in HDD: No Integrated card reader: Yes Maximum memory card size: 256 GB Ports and interfaces Number of Ethernet LAN ports (RJ-45): 1 Camera Shutter speed: 1/3 - 1/100000 s Panning range: -30 - 30° Horizontal lens viewing angle: 180° Vertical lens viewing angle: 44° Tilt angle range: -75 - 75° Other features Supported browsers: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+ Image sensor CCD sensor size: 25.4 / 1.8 mm (1 / 1.8") Number of sensors: 2 Image sensor type: CMOS Night mode Night vision distance: 30 m LED type: Infrared Night mode: Yes Video Supported video file formats H.265 H.265+ MJPG H.264 H.264+ Region of Interest (ROI) encoding: Yes Data transfer rate: 32 kbps - 16384 kbps Noise reduction technology: 3D noise reduction Total megapixels: 8 MP Highlight Compensation (HLC): Yes Compression formats H.264+ H.265 H.264 H.265+ Backlight compensation: Yes Quality adjustment Brightness Sharpness Saturation Contrast Maximum resolution: 5120 x 1440 px Supported graphics resolutions 960 x 272 5120 x 1440 1920 x 536 Data transfer rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR) Lens system Observation distance (wide): 30 m Detection distance (wide): 77 m Lens diameter: 4 mm Recognition distance (wide): 15 m Number of lenses: 2 Identification distance (wide): 7 m Maximum aperture: 1

Category

Industry

Department

Company and Office

Weight (kg)

1.7

Product Type

Security cameras
