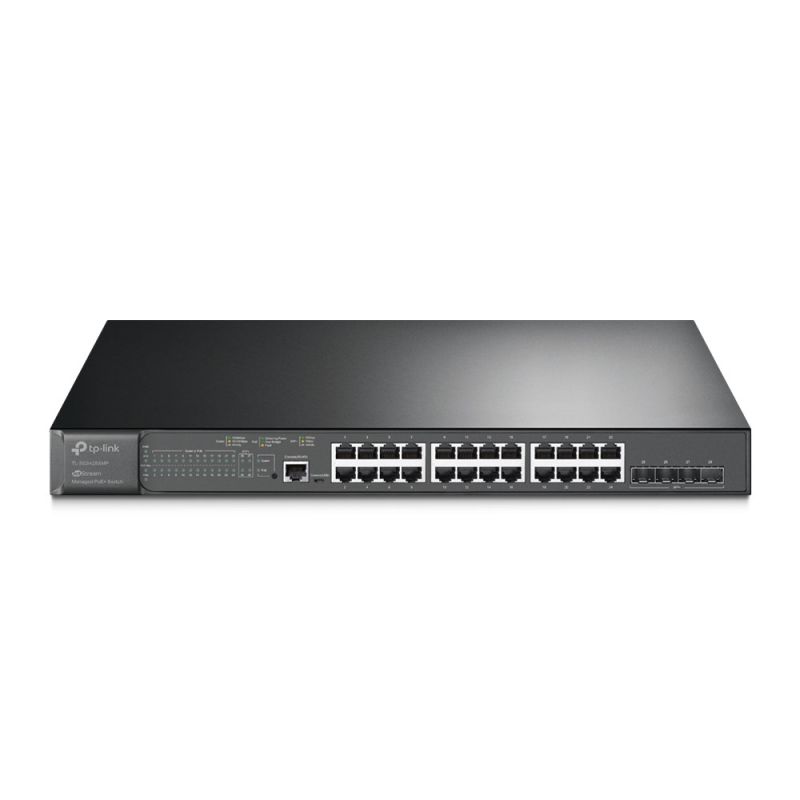

TP-Link JetStream TL-SG3428XMP Managed Network Switch L2+ Gigabit Ethernet (10/100/1000) PoE Support 1U Black

Apraksts

Design Number of fans: 2 fans Rack mounting options: Yes LEDs: Yes Product color: Black Layout: 1U Power Power supply included: Yes Power consumption (max): 455.5 W Power source: AC AC input frequency: 50/60 Hz AC input voltage: 100 - 240 V Weight and dimensions Product height: 44 mm Product depth: 330 mm Product width: 440 mm Security Loop protection: Yes IP-MAC-Port Binding: Yes BPDU Filtering/Protection: Yes Supports SSH/SSL: Yes DHCP functions DHCP client DHCPv6 snooping DHCP snooping DHCP relay DHCPv6 client DHCP server IGMP snooping: Yes Access Control List (ACL): Yes Management features System Event Report: Yes Cloud-managed: Yes Switch type: Managed Switch Layer: L2+ MIB Support: Yes Website management: Yes Quality of Service (QoS) Support: Yes Working conditions Heat emission: 1554.39 BTU/h Relative humidity range: 10 - 90% Temperature range (operation): 0 - 45 °C Temperature range (storage): -40 - 70 °C Permissible relative humidity: 5 - 90% Network Spanning Tree Protocol: Yes Connection Aggregator: Yes Virtual LAN Features Tagged VLAN MAC address-based VLAN Protocol-based VLAN Voice VLAN Private VLAN Port-based VLAN Rule-Based Routing: Yes Active connection search: Yes Head-of-line (HOL) blocking: Yes Port Mirroring: Yes Traffic Growth Control: Yes 10G Support: Yes Flow Control Support: Yes VLAN support: Yes Number of VLANs: 4000 Frequency Limit: Yes Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s Communication standards IEEE 802.1w IEEE 802.11d IEEE 802.1s Packaging data Package width: 440 mm Package depth: 528 mm Weight with packaging: 6.17 kg Package height: 100 mm Package contents Quick Start Guide: Yes Cables: LAN (RJ-45) Protocols Management protocols: SNMPv1/v2c/v3, SNTP Ports and interfaces Number of Gigabit Ethernet ports: 24 Console port: RJ-45/micro-USB Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000) Power Connector: AC Input Socket Basic RJ-45 Switching Number of Ethernet Ports: 24 Number of SFP+ Module slots: 4 Logistics data Harmonized System (HS) code: 85176990 Data transfer Forwarding speed: 95.23 Mpps Number of static routes: 48 Jumbo Frames Expansion: 9000 Address table size: 16000 entries Routing/switching capacity: 128 Gbit/s Packet buffer memory: 12 MB Jumbo Frame Compatible: Yes Power over Ethernet (PoE) Power over Ethernet Plus (PoE +) ports: 24 Total Power over Ethernet (PoE) budget: 384 W PoE Support: Yes Multicast functions Multicast Support: Yes

Colour

Black

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

1.85

Product Type

Network switches
