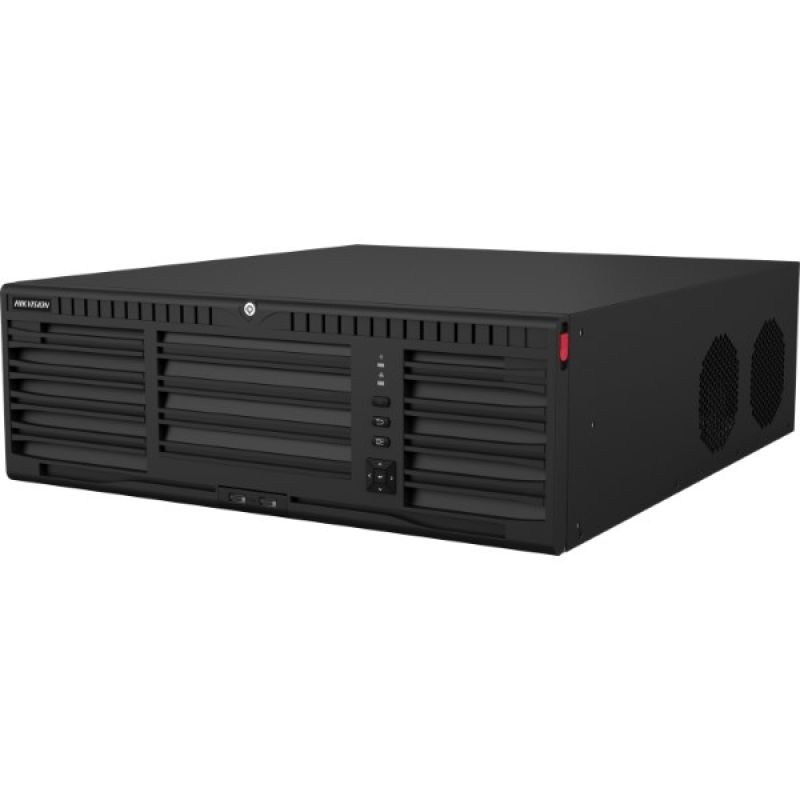

DS-9664NI-M16 Hikvision 64-Channel Recorder

Apraksts

Characteristics Product color: Black Power AC input frequency: 50 - 60 Hz AC input voltage: 100/240 V Weight and dimensions Product weight: 12.5 kg Product width: 445 mm Product height: 150 mm Product depth: 495 mm Working conditions Temperature range (operation): -10 - 55 °C Relative humidity range: 10 - 90% Efficiency Output bandwidth: 400 Mbit/s Alarm input channels: 16 Input bandwidth: 400 Mbit/s Video Channel Inputs: 64 channels Maximum resolution: 7680 x 4320 px Alarm output channels: 9 Ports and interfaces RS232 connector: Yes DC output socket: Yes Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS RS-232 port: 1 Number of USB 2.0 ports: 4 RS-485 ports: 1 eSATA: Yes Number of Ethernet LAN ports (RJ-45): 2 Hard drive RAID Service: Yes RAID levels 5 0 1 6 10 HDD interface: SATA Maximum storage capacity: 14 TB Number of HDDs installed: 16

Category

Industry

Department

Company and Office

Weight (kg)

13.5

Product Type

Video recorders (NVR/DVR)
