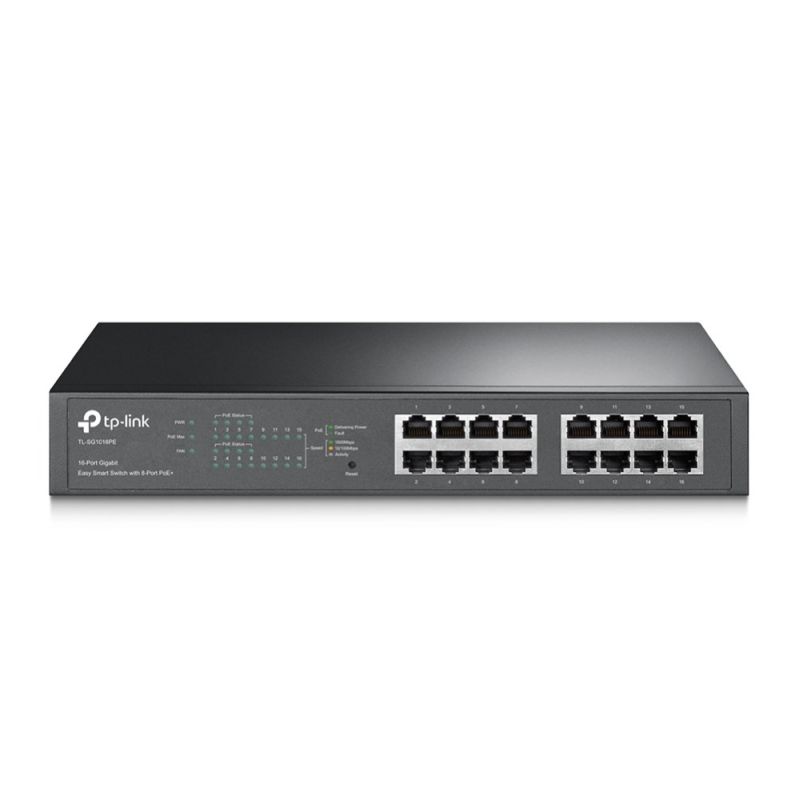

TP-Link TL-SG1016PE Managed Network Switch L2 Gigabit Ethernet (10/100/1000) PoE Support Black

Apraksts

Design Product color: Black Stackable: No Number of fans: 1 fan LEDs: Yes Rack mounting options: Yes Power Power consumption (max): 124.4 W AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Power supply included: Yes Weight and dimensions Product width: 294 mm Product depth: 180 mm Product height: 44 mm Security Static Port Protection: Yes Loop protection: Yes IGMP snooping: Yes Management features Quality of Service (QoS) Support: Yes Switch type: Managed Website management: Yes Switch Layer: L2 Working conditions Temperature range (storage): -40 - 70 °C Temperature range (operation): 0 - 40 °C Permissible relative humidity: 5 - 90% Relative humidity range: 10 - 90% Network 10G Support: No Communication standards IEEE 802.3ab IEEE 802.3ad IEEE 802.3u IEEE 802.1Q IEEE 802.1p IEEE 802.3 IEEE 802.3af IEEE 802.3x IEEE 802.3at Copper Ethernet cabling technology 1000BASE-T 100BASE-TX 10BASE-T Auto-Negotiation: Yes Auto MDI/MDI-X: Yes Supported cable types Cat4 Cat5e Cat5 Cat6 Cat3 Traffic Growth Control: Yes Full duplex: Yes Frequency Limit: Yes Flow Control Support: Yes Number of VLANs: 4000 Connection Aggregator: Yes Port Mirroring: Yes VLAN support: Yes Virtual LAN Features Tagged VLAN Port-based VLAN Package contents Wires: Alternating Current Hook mounting kit: Yes Ports and interfaces Basic RJ-45 Switching Number of Ethernet Ports: 16 Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000) Number of Gigabit Ethernet ports: 16 Logistics data Harmonized System (HS) code: 85176990 Data transfer Number of rounds: 4 Jumbo Frames Expansion: 10000 Throughput: 23.8 Mpps Jumbo Frame Compatible: Yes Store-and-forward: Yes Address table size: 8000 entries Routing/switching capacity: 32 Gbit/s Power over Ethernet (PoE) Power over Ethernet Plus (PoE +) ports: 8 PoE Support: Yes Total Power over Ethernet (PoE) budget: 150 W Power over Ethernet (PoE) power per port: 30 W

Colour

Black

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

2.56

Product Type

Network switches
