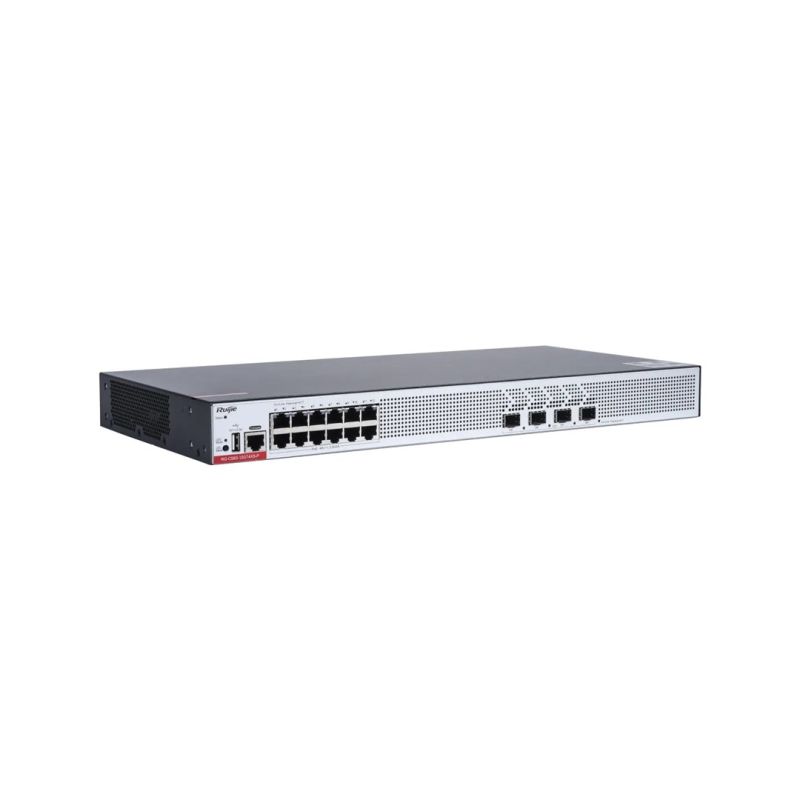

POE switch RG-CS83-12GT4XS-P 12-port SFP RUIJIE

Apraksts

Design Product color: Gray Layout: 1U Stackable: Yes Number of fans: 1 fan Power Power consumption (max): 409 W Power source: AC Power supply included: Yes Power Protection Features: Surge Protection AC input frequency: 47/63 Hz AC input voltage: 90 - 264 V Input current: 6 A Weight and dimensions Product depth: 220 mm Product height: 43.6 mm Product width: 442 mm Product weight: 3.3 kg Security Entry Access Control List (ACL): 1750 Queue planning algorithms Weighted Round Robin (WRR) SP WFQ WRR+SP Deficit Round Robin (DRR) DRR+SP WFQ+SP Access Control List (ACL): Yes Authentication: MAC-based authentication, Web-based authentication IGMP Proxy: Yes DHCP functions DHCPv6 client DHCPv6 snooping DHCP relay DHCPv6 relay DHCP client DHCP snooping DHCPv6 server DHCP server Authentication type: AAA, IEEE 802.1x, RADIUS, TACACS+ Access Control List (ACL) Output: 800 IP-MAC-Port Binding: Yes IGMP snooping: Yes Encryption/Security SSH-2 SSH HTTPS Management features Cloud-managed: Yes ARP Inspection: Yes Traffic Classification: Yes Switch Layer: L3 Quality of Service (QoS) Support: Yes Switch type: Managed Working conditions Temperature range (operation): 0 - 45 °C Temperature range (storage): -40 - 70 °C Permissible altitude (above sea level): 0 - 5000 m Permissible relative humidity: 5 - 95% Relative humidity range: 10 - 90% Permissible operating altitude (above sea level): 0 - 5000 m Network Virtual LAN Features Voice VLAN Private VLAN MAC address-based VLAN IP subnet–based VLAN Protocol-based VLAN Interface-based VLAN Number of VLANs: 4000 Auto-Negotiation: Yes 10G Support: Yes VLAN support: Yes IPv6 routes: 2000 IPv4 routes: 6000 Communication standards IEEE 802.3az IEEE 802.3ah IEEE 802.1p Efficiency Internal memory capacity: 1 GB MTBF (Mean Time Between Failures): 211466 h Memory type: SDRAM / Flash Flash memory size: 512 MB Noise level: 35 dB Built-in processor: Yes Processor clock speed: 1000 MHz Packaging data Package width: 540 mm Package height: 154 mm Package depth: 338 mm Weight with packaging: 4.18 kg Package contents User Manual: Yes Quick Start Guide: Yes Certificates Certificates of conformity: RoHS Protocols Route Selection Protocol OSPFv2 OSPFv3 RIPng RIP IPv4 and IPv6 features: IPv6 source address validation improvement (SAVI) GARP VLAN Registration Protocol (GVRP): Yes Ports and interfaces Basic RJ-45 Switching Number of Ethernet Ports: 12 Number of SFP+ Module slots: 4 Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000) Number of management ports: 1 pc. Number of USB 2.0 ports: 1 Data transfer Packet buffer memory: 4 MB Jumbo Frame Compatible: Yes Static Route: Yes Transfer speed: 78 Mpps Jumbo Frames Expansion: 9216 Address table size: 16000 entries Routing/Switching Throughput: 104 Gbit/s Power over Ethernet (PoE) PoE Support: Yes Power over Ethernet (PoE) type supported: PoE+ Multicast functions Multicast Support: Yes Multicast Listener Discovery (MLD) snooping: MLD snooping v1/v2 IPv4 multicast entries: 1000 IPv6 multicast entries: 750

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

4.24

Product Type

Network switches
