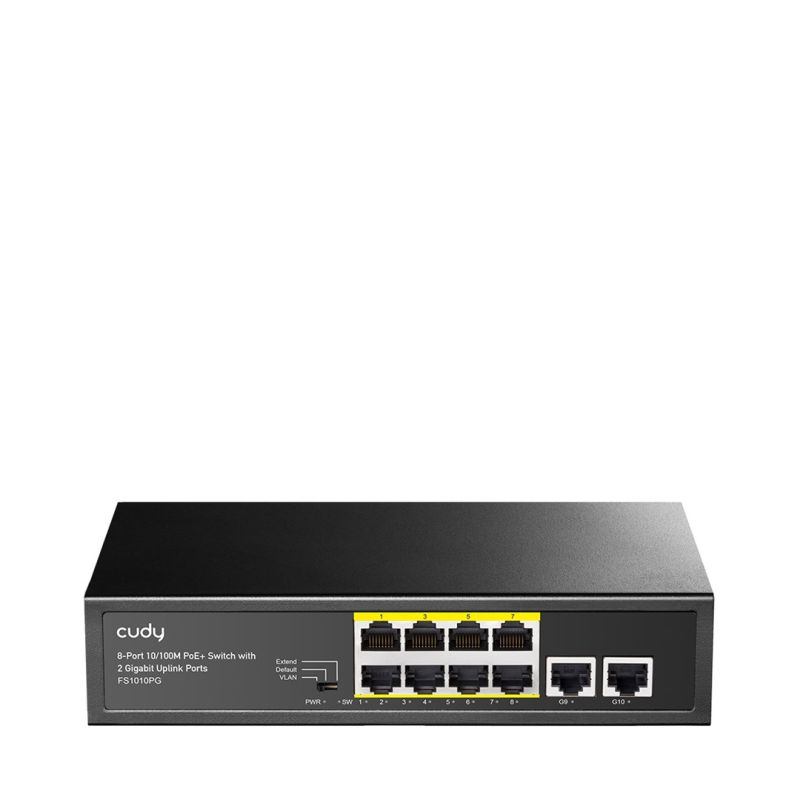

CUDY FS1010PG Switch, 8-Port 10/100M PoE+ 120W, 2x GbE Uplink

Apraksts

Design Product colour: Black LED indicators Operation PoE Power Link Housing material: Metal Power Power source: AC Surge protection 4 kV Yes AC input frequency: 50–60 Hz AC input voltage: 100–240 V Power supply included: Yes Weight and dimensions Product depth: 150 mm Product height: 44 mm Product width: 220 mm Operating conditions Operating temperature range: 0–40 °C Permissible relative humidity: 5–90% Storage temperature range: -40–70 °C Relative humidity range: 10–90% Network Ethernet LAN data transfer rate: 10,100 Mbit/s Copper Ethernet cabling technology 100BASE-TX 10BASE-T Half-duplex: Yes Flow control support: Yes Supported cable types Cat5 Cat3 Cat5e Cat4 Full-duplex: Yes Communication standards IEEE 802.3af IEEE 802.3x IEEE 802.3az IEEE 802.3at VLAN support: Yes Performance Fanless: Yes MTBF (mean time between failures): 50000 h Plug and Play support: Yes Packaging content Cables: AC Ports and interfaces Basic switching Ethernet RJ-45 port type: Fast Ethernet (10/100) Number of uplink ports: 2 Number of basic switching RJ-45 Ethernet ports: 8 Power connector: AC input socket Other features Bandwidth: 2 Gbit/s Data transmission Forwarding rate: 1.48 Mpps Store-and-forward: Yes Address table size: 8000 entries Jumbo Frames compliant: Yes Jumbo Frames extension: 1528 Packet buffer memory: 0.25 MB Power over Ethernet (PoE) PoE support: Yes Total Power over Ethernet (PoE) budget: 120 W Power over Ethernet (PoE) power per port: 30 W Number of Power over Ethernet Plus (PoE+) ports: 1 Number of Fast Ethernet ports (PoE): 8 Safety warning Warnings Do not open the housing or attempt to repair the device yourself. The product must not be disposed of with ordinary household waste. Take used electronic equipment to a disposal point in accordance with local regulations. Ensure that the device is adequately ventilated during operation.

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

1.05

Product Type

Network switches
