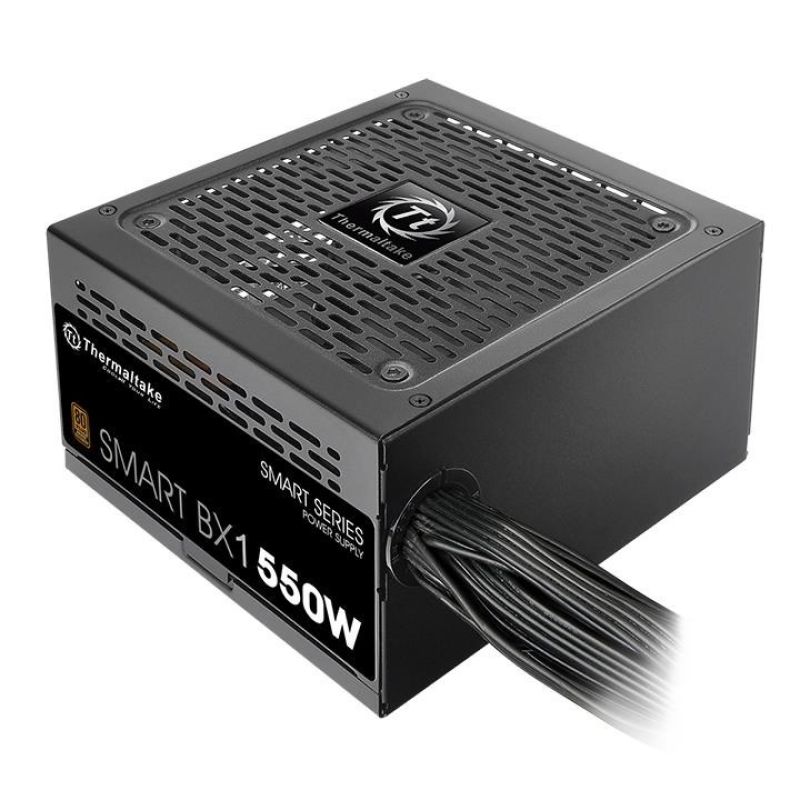

Thermaltake Smart BX1 PS-SPD-0550NNSABE-1 Power Supply (550W; Active; 120mm)

Apraksts

Design Built-in switch: Yes Number of fans: 1 fan Fan bowl diameter: 12 cm Cooling type: Active Backlight: No Fan Location: Top Product color: Black Power Input current: 10 A AC input frequency: 50 Hz Total power (+12V): 456 W Maximum output current (+5 Vsb): 2.5 A Maximum output current (+3.3V): 21 A AC input voltage: 230 V Total power (+5 Vsb): 12.5 W PFC (Power Factor Correction) Type: Active Maximum output current (+12V): 38A Maximum input current (@ 220V): 10 A Total power: 550 W Efficiency: 88% Maximum output current (+5V): 16A Peak power: 660 W Good Signal Power Delay Range: 100 - 500 ms Maximum output current (-12V): 0.5A Total power (+5V): 105 W Total power (+3.3V): 105 W Hold time: 16 ms Total power (-12V): 6 W Weight and dimensions Product width: 150 mm Product height: 86 mm Product depth: 140 mm Working conditions Temperature range (operation): 5 - 40 °C Permissible relative humidity: 10 - 95% Temperature range (storage): -40 - 55 °C Relative humidity range: 20 - 85% Efficiency Power supply type (PSU): ATX Intended use: PC EPS version: 2.92 ATX version: 2.3 Noise level: 37.6 dB Safety: CE, CB, TUV, EAC, RCM 80 PLUS Certificate: 80 PLUS Bronze MTBF (Mean Time Between Failures): 100000 h Ports and interfaces Motherboard power connector: 24-pin ATX Wiring Type: Non-Modular SATA power cable length 150 500 mm Floppy disk drive slot: Yes CPU power supply connector (4+4 pin): Yes PCI Express slot: Yes Motherboard cable length: 60 cm PCI Express power connectors (6+2 pin): 2 Peripheral (Molex) Power Cable Length 150 500 mm Number of SATA power connectors: 6 CPU power cable length: 65 cm Floppy drive connector: 1 Peripheral (Molex) Power Connectors (4-pin): 4

Category

Computers and accessories

Department

Electronics

Weight (kg)

1.99

Product Type

Power supplies
