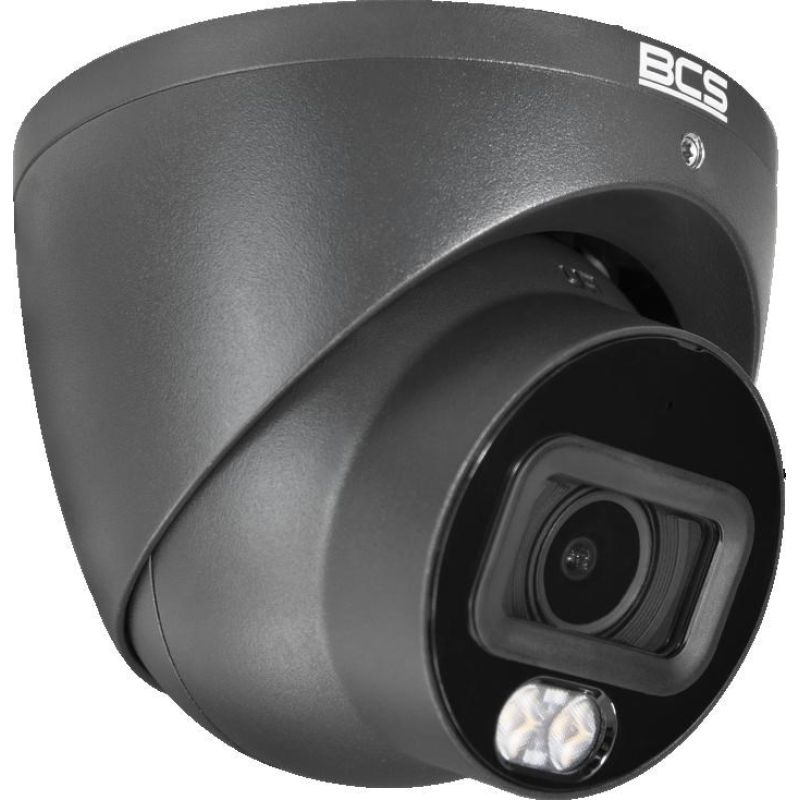

BCS Line IP Camera BCS-L-EIP14FCL3-Ai1-G

Apraksts

Technical details Number of transmitted images: 2 IR range: 0–30 m Construction IP protection rating: IP67 Housing material: Metal Mounting type: Ceiling / Wall Product colour: Graphite IK code: IK08 Form factor: Dome Power Power supply type: DC, PoE Power consumption (max.): 6.4 W Weight and dimensions Product depth: 106 mm Product height: 95 mm Diameter: 10.6 cm Product width: 106 mm Product weight: 420 g Protection Mirror: Yes Management features Cloud-managed: No Operating conditions Relative humidity range: 0–95% Operating temperature range: -40–60 °C Network Wired LAN: Yes Bluetooth: No Wi-Fi: No Performance Connectivity technology: Wired Model: IP security camera Suitable for: Indoor / outdoor use Wide Dynamic Range (WDR): Yes Packaging data Package width: 156 mm Package height: 137 mm Package depth: 156 mm Packaging content Number of cameras: 1 Audio Built-in microphone: Yes Audio codecs PCM G.711Mu G.711a G.726 Built-in speakers: Yes Storage media ROM capacity: 128 MB Built-in HDD: No Supported memory cards: MicroSD Maximum memory card size: 256 GB Integrated card reader: Yes RAM capacity: 256 MB Ports and interfaces Number of Ethernet LAN ports (RJ-45): 1 Camera Shutter speed: 1/3–1/100000 s Camera shutter type Electronic Mechanical Rotation angle: 270° Field of view (FOV): 134° Rotation: Yes Vertical viewing angle of the lens: 60° Horizontal viewing angle of the lens: 112° Diagonal viewing angle of the lens: 134° Minimum illumination: 0.0008 lx Number of privacy masking areas: 4 Image sensor CCD sensor size: 25.4 / 1.8 mm (1 / 1.8") Image sensor type: CMOS Number of sensors: 1 Night mode LED type: Infrared/white Night mode: Yes Video Highlight Compensation (HLC): Yes Backlight compensation: Yes Quality adjustment: DNR Supported video file formats H.265 H.264 M-JPEG H.265+ H.264B H.264+ Noise reduction technology: 3D noise reduction Maximum resolution: 2688 x 1520 px Video streaming: Yes Noise reduction: Yes Total megapixels: 4 MP Gain control: Automatic/Manual Lens system Fixed focus: Yes Digital zoom: 16x Zoom capability: Yes Observation distance: 23 m Focal length: 2.8 mm Minimum aperture: 1 Recognition distance: 12 m Maximum aperture: 1 Identification distance: 6 m Detection distance: 58 m Number of lenses: 1 Panoramic camera Signal-to-noise ratio (SNR) (panoramic camera): 56 dB

Category

Industry

Department

Company and Office

Weight (kg)

1

Product Type

Security cameras
