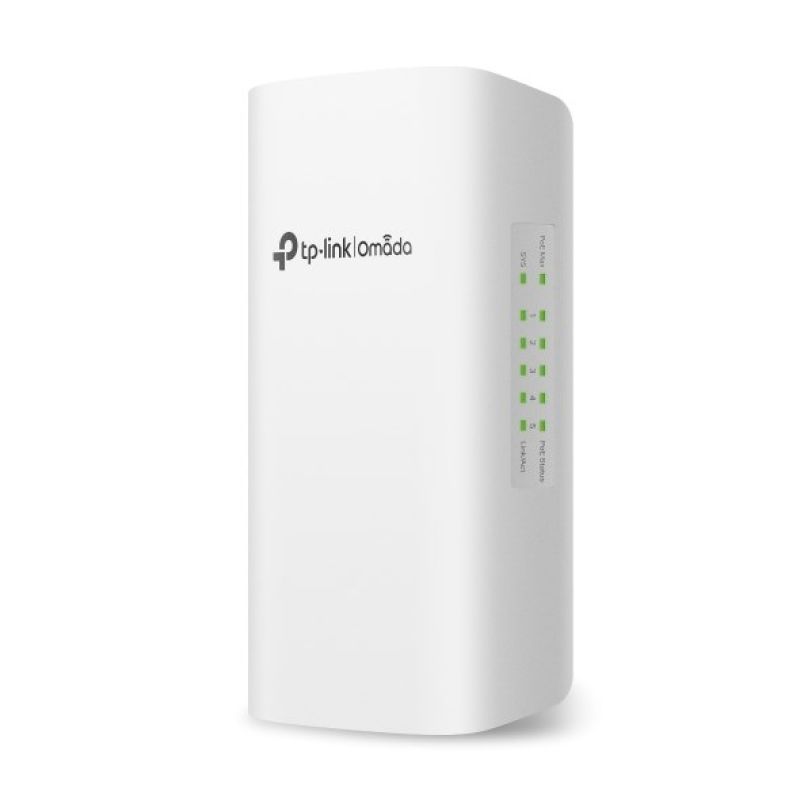

Switch TP-LINK SG2005P-PD

Apraksts

Design Product color: White Stackable: No Rack mounting options: No Layout: Desktop LEDs: Yes Power Power source: DC/PoE Power consumption: 71.5 W Power supply included: Yes Weight and dimensions Product width: 170 mm Product height: 38.5 mm Product depth: 100 mm Security MAC address filtering: Yes Encryption/Security: 802.1x RADIUS IP-MAC-Port Binding: Yes DHCP functions DHCP server DHCP relay Authentication: MAC-based authentication, Port-based authentication IGMP snooping: Yes Password protection: Yes Access Control List (ACL): Yes Access Control List (ACL) IPv4 entries: 32 Management features Website management: Yes ARP Inspection: Yes Quality of Service (QoS) Support: Yes Switch Layer: L2/L2+ Cloud-managed: Yes MIB Support: Y Switch type: Managed Working conditions Temperature range (operation): -40 - 60 °C Heat emission: 243.99 BTU/h Relative humidity range: 10 - 90% Permissible relative humidity: 5 - 90% Temperature range (storage): -40 - 70 °C Network Communication standards IEEE 802.1p IEEE 802.3at IEEE 802.1x IEEE 802.3bt IEEE 802.3u IEEE 802.1w IEEE 802.11d IEEE 802.3ad IEEE 802.3af IEEE 802.3x IEEE 802.3i IEEE 802.1s IEEE 802.3ab IEEE 802.1Q Supported cable types Cat5e Cat5 10G Support: Yes IPv4 routes: 32 Number of VLANs: 4000 Connection Aggregator: Yes Flow Control Support: Yes Port Mirroring: Yes IPv6 routes: 32 Spanning Tree Protocol: Yes Copper Ethernet cabling technology 10BASE-T 100BASE-TX 100BASE-T VLAN support: Yes Virtual LAN Features: Voice VLAN Certificates Certificates of conformity RoHS CE Protocols IPv4 and IPv6 features IPv4/IPv6 access-control list (ACL) IPv6 tracert Dual stack IPv4/IPv6 Ports and interfaces Number of 10G Ethernet ports (copper): 4 Basic Ethernet Switching RJ-45 Ports Type: 10G Ethernet (100/1000/10000) Basic RJ-45 Switching Number of Ethernet Ports: 4 Data transfer Jumbo Frames Expansion: 9 Address table size: 8000 entries Packet forwarding range (1 Gbps): 7440 pps Routing/switching capacity: 10 Gbit/s Packet buffer memory: 4.1 MB Jumbo Frame Compatible: Yes Power over Ethernet (PoE) PoE Support: Yes Power over Ethernet (PoE) power per port: 64 W Multicast functions Multicast Support: Yes IPv4 multicast entries: 511 IPv6 multicast entries: 511 MAC address table (multicast): 8000 entries Safety warning Warnings Do not open the casing or attempt to repair it yourself. Ensure the device is adequately ventilated during operation. This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations. Sustainable development Sustainability: Yes

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

1

Product Type

Network switches
