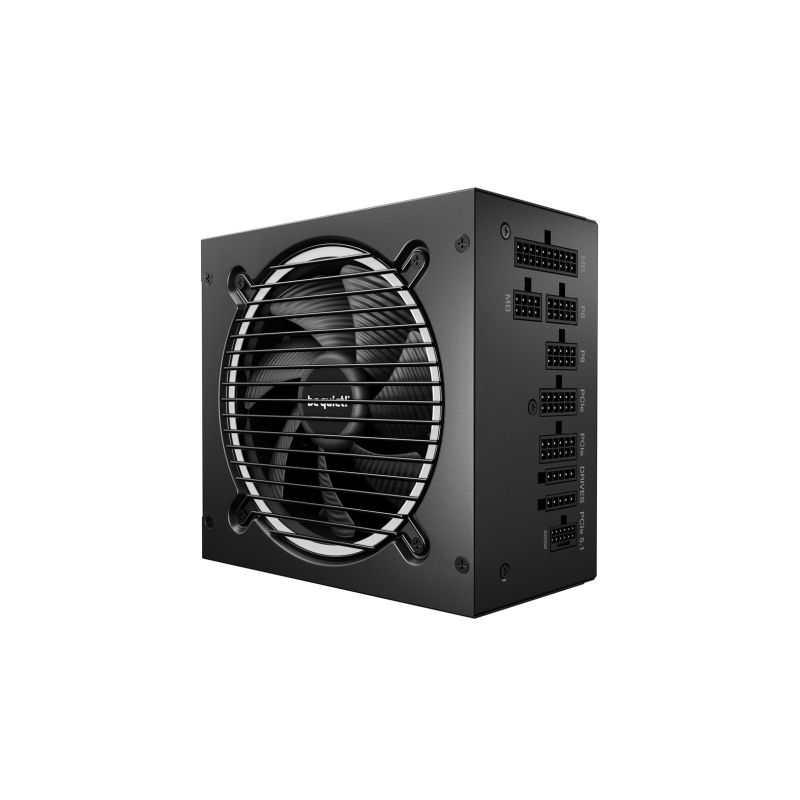

BEQUIET! PURE POWER 13M 1000W POWER SUPPLY

Apraksts

Technical details Environmental certificate (sustainable development) ErP ENERGY STAR Design Product color: Black Number of fans: 1 fan Cooling type: Active Fan speed: 0 - 2000 RPM Fan bowl diameter: 12 cm Built-in switch: Yes Power Total power (+5 Vsb): 15 W Power protection features Surge & inrush protection (SIP) Protection against overvoltage Overcurrent Overload protection Short circuit Overheating protection Low voltage protection Maximum output current (-12V): 0.3A Maximum output current (+12 V1): 83.4 A Maximum input current (@ 110V): 12 A Total power (+12V): 1000 W Maximum output current (+5V): 22A Efficiency: 92.5% PFC (Power Factor Correction) Type: Active Peak power: 1050 W Maximum output current (+5 Vsb): 3 A Total power: 1000 W Total power (-12V): 3.6 W Maximum output current (+3.3V): 22 A AC input voltage: 100 - 240 V Total power (+5V): 120 W Hold time: 21.09 ms Total power (+3.3V): 120 W Maximum input current (@ 220V): 6 A AC input frequency: 50/60 Hz Power factor: 0.98 Number of +12V rails: 1 Weight and dimensions Product depth: 160 mm Product width: 150 mm Product height: 86 mm Product weight: 2.64 kg Working conditions Temperature range (operation): 0 - 40 °C Efficiency Bearing Technology: Rifle Bearing ATX version: 3.1 Intended use: PC Power supply type (PSU): ATX MTBF (Mean Time Between Failures): 100000 h 80 PLUS Certificate: 80 PLUS Gold Noise level: 30.3 dB EPS version: 2.92 Packaging data Weight with packaging: 3.4 kg Packaging depth: 320 mm Package height: 133 mm Package width: 210 mm Package contents Cables: AC, Processor, PCIe, Peripheral (Molex), SATA Certificates Certificates of conformity CCC IRAM Federal Communications Commission (FCC) BSMI CE cTUVus UKCA CB WEEE RCM RoHS TÜV mark Ports and interfaces Peripheral (Molex) Power Connectors (4-pin): 2 P4 CPU connector (4-pin): 2 Peripheral (Molex) Power Cable Length 950 mm 800 PCI Express power connectors (6+2 pin): 4 Wiring Type: Fully Modular CPU power supply connector (4+4 pin): Yes Number of SATA power connectors: 6 Motherboard power connector: 20+4 pin ATX SATA power cable length 950 mm 500 mm 800 mm 650 CPU power cable length: 65 cm EPS power supply connector (8-pin): Yes Motherboard cable length: 55 cm PCI Express power connectors (12-pin): 1 Other functions Cable ties included: Yes Screws Included: Yes Logistics data Delivery box height: 23.3 cm Shipping box length: 58 cm Delivery box width: 32.5 cm Gross shipping box (inner) weight: 22.7 kg Products per shipping crate (inner): 6 pcs.

Category

Computers and accessories

Department

Electronics

Weight (kg)

3

Product Type

Power supplies
