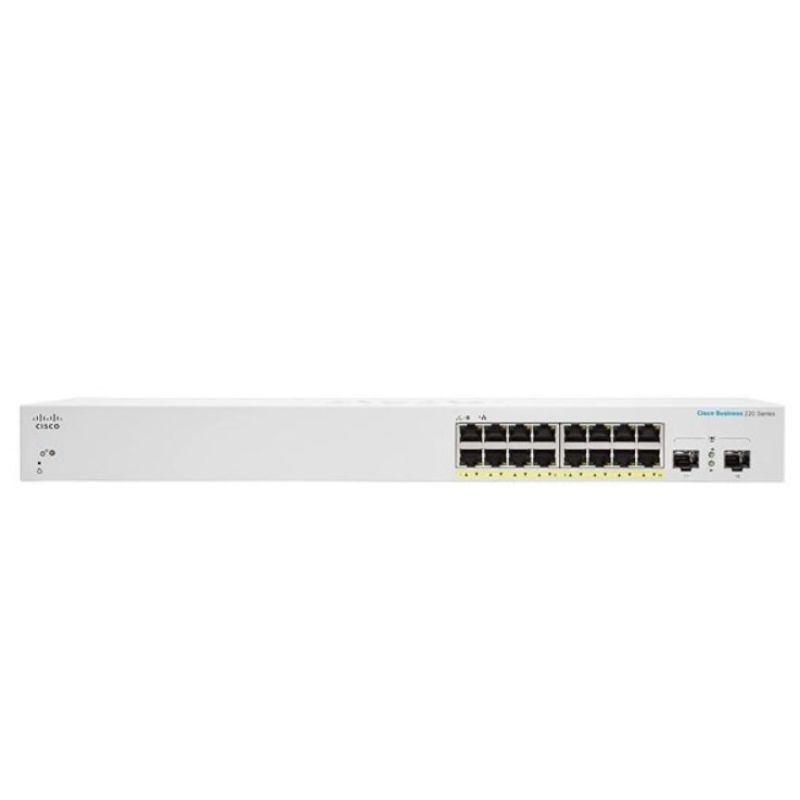

Cisco CBS220-16P-2G-EU Switch

Apraksts

Design Product colour: White Rack mounting possible: Yes Reset button: Yes LED indicators: Yes Power AC input frequency: 50–60 Hz Weight and dimensions Product width: 440 mm Product height: 44 mm Product weight: 3.03 kg Product depth: 203 mm Security IGMP snooping: Yes Access Control List (ACL) rules: 512 IGMP entries: 256 Access Control List (ACL): Yes Loop protection: Yes BPDU filtering/protection: Yes DHCP functions: DHCP client SSH/SSL support: Yes Encryption/security: SSL/TLS MAC address filtering: Yes Management features Configuring location settings (CLI): Yes Switching layer: L2 System event reporting: Yes Switch type: Managed MIB support: Y Quality of Service (QoS) support: Yes Web-based management: Yes Operating conditions Operating temperature range: 0–50 °C Permissible relative humidity: 10–90% Storage temperature range: -20–70 °C Relative humidity range: 10–90% Network Traffic congestion control: Yes Spanning Tree Protocol: Yes Port mirroring: Yes Link aggregation: Yes 10G support: No Head-of-line (HOL) blocking: Yes Number of VLANs: 256 Flow control support: Yes Communication standards IEEE 802.1D IEEE 802.3u IEEE 802.1w IEEE 802.3ad IEEE 802.3z IEEE 802.3ab IEEE 802.3af IEEE 802.3x IEEE 802.3at IEEE 802.1x Auto MDI/MDI-X: Yes VLAN support: Yes Performance Device software updates: Yes Protocols Management protocols: SNMP GARP VLAN Registration Protocol (GVRP): Yes Ports and interfaces Number of SFP module slots: 2 Number of RJ-45 Ethernet ports for basic switching: 16 Type of RJ-45 Ethernet ports for basic switching: Gigabit Ethernet (10/100/1000) Logistics data Harmonized System (HS) code: 85176990 Data transmission Jumbo Frames extension: 9216 Address table size: 8192 entries Routing/switching capacity: 36 Gbit/s Jumbo Frames support: Yes Power over Ethernet (PoE) PoE support: Yes Total Power over Ethernet (PoE) budget: 130 W Multicast features Multicast support: Yes Number of filtered multicast groups: 256 Safety warning Warnings Ensure that the device is adequately ventilated during operation. Do not open the enclosure or attempt to repair the device yourself. This product must not be disposed of with ordinary household waste. Take used electronic equipment to an appropriate disposal point in accordance with local regulations.

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

4.7

Product Type

Network switches
