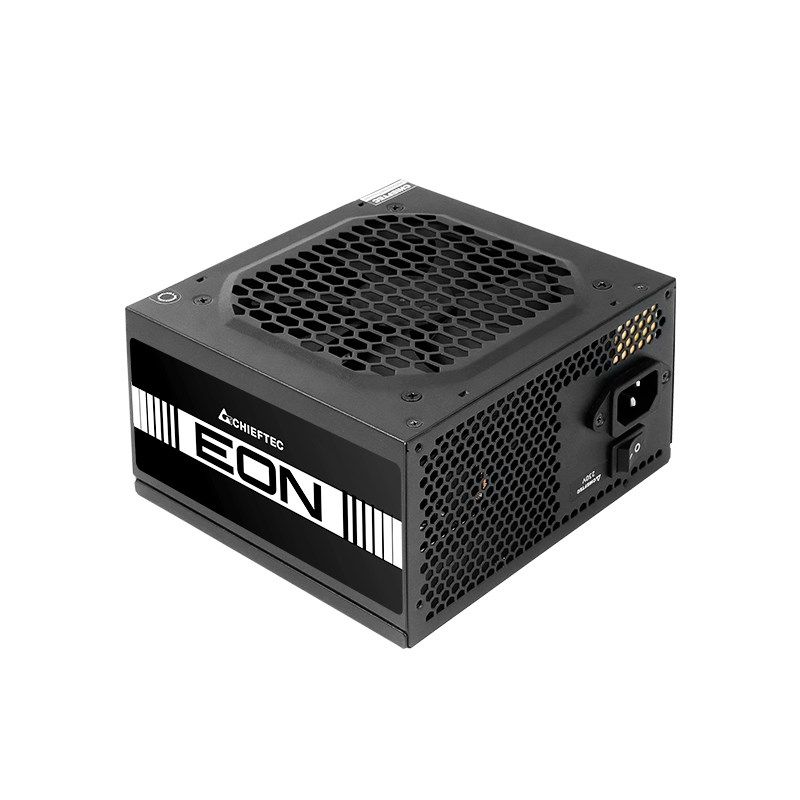

Chieftec EON ZPU-600S power supply

Apraksts

Design Built-in switch: Yes Fan bowl diameter: 12 cm Product color: Black Power Maximum output current (+5 Vsb): 2.5 A Maximum output current (+3.3V): 20 A PFC (Power Factor Correction) Type: Active Total power (-12V): 4.8 W Maximum input current (@ 220V): 4.5 A Total power (+5 Vsb): 12.5 W Maximum output current (+12 V1): 45 A Maximum output current (-12V): 0.4A Maximum output current (+5V): 20A Power protection features Overvoltages and inrush current Short circuit Surge protection AC input frequency: 50 Hz Power factor: 0.9 Total power: 600 W AC input voltage: 200 - 240 V Input current: 4.5 A Weight and dimensions Product depth: 140 mm Product height: 86 mm Product weight: 1.34 kg Product width: 150 mm Efficiency ATX version: 2.3 Intended use: PC/server 80 PLUS Certificate: 80 PLUS Supported motherboard type: ATX Power supply type (PSU): ATX Ports and interfaces Motherboard power connector: 20+4 pin ATX Peripheral (Molex) Power Cable Length 750 450 mm 600 EPS power connector (4+4 pin): Yes Number of SATA power connectors: 4 CPU power supply connector (4+4 pin): Yes ATX power supply connector (20+4 pin): Yes SATA power cable length 750 mm 600 450 Motherboard cable length: 65 cm PCI Express power connectors (6+2 pin): 2 Wiring Type: Non-Modular Logistics data Warranty period: 2 years

Category

Computers and accessories

Department

Electronics

Weight (kg)

1.62

Product Type

Power supplies
